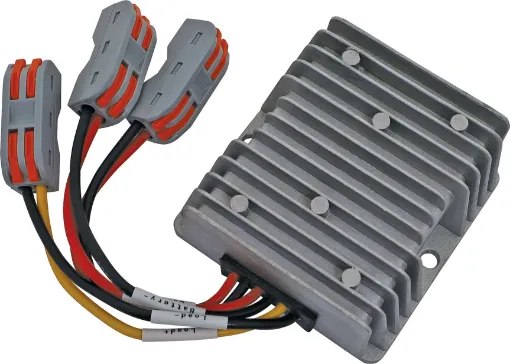

Sealed MPPT 20A 12V Solar Charge Controller

Manufacturer: Powerhouse
Be the first to review this product
This compact IP67 weatherproof module provides MPPT solar charging for lead acid batteries. Maximum Power Point Tracking (MPPT) circuitry to provide up to 20% additional charge energy than conventional regulators.
SKU: N2016
$72.68
Per ea
Quantity Price
ea $72.68
4+ $65.41
6+ $58.14

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

This compact IP67 weatherproof module provides MPPT solar charging for lead acid batteries. Maximum Power Point Tracking (MPPT) circuitry to provide up to 20% additional charge energy than conventional regulators. This essentially allows you to get more power from your existing panels, or alternatively reduce the overall required panel wattage for new systems. Ideally suited for vehicle power systems, ticketing infrastructure and other remote power requirements. Includes a host of protection features for safe and reliable operation. Dimensions:74W x 74D x 32Hmm

Features

  • Utilises Maximum Power Point Tracking (MPPT) circuitry
  • Suitable for lead acid batteries
  • Over temperature & short circuit protection
  • Under input voltage shutdown
  • Battery under voltage shutdown
  • Fully sealed IP67 rated design
  • Suits 12V battery systems

Specifications

Max charge/load current: 20A

  • Output power: 300W
  • No load current: <10mA
  • Max solar input voltage: 20-50V
  • Low voltage disconnect (12V): 10.5V
  • Dimensions (mm): 74W x 74D x 32Hmm

12 Months

We Offer 12 Months for this product
