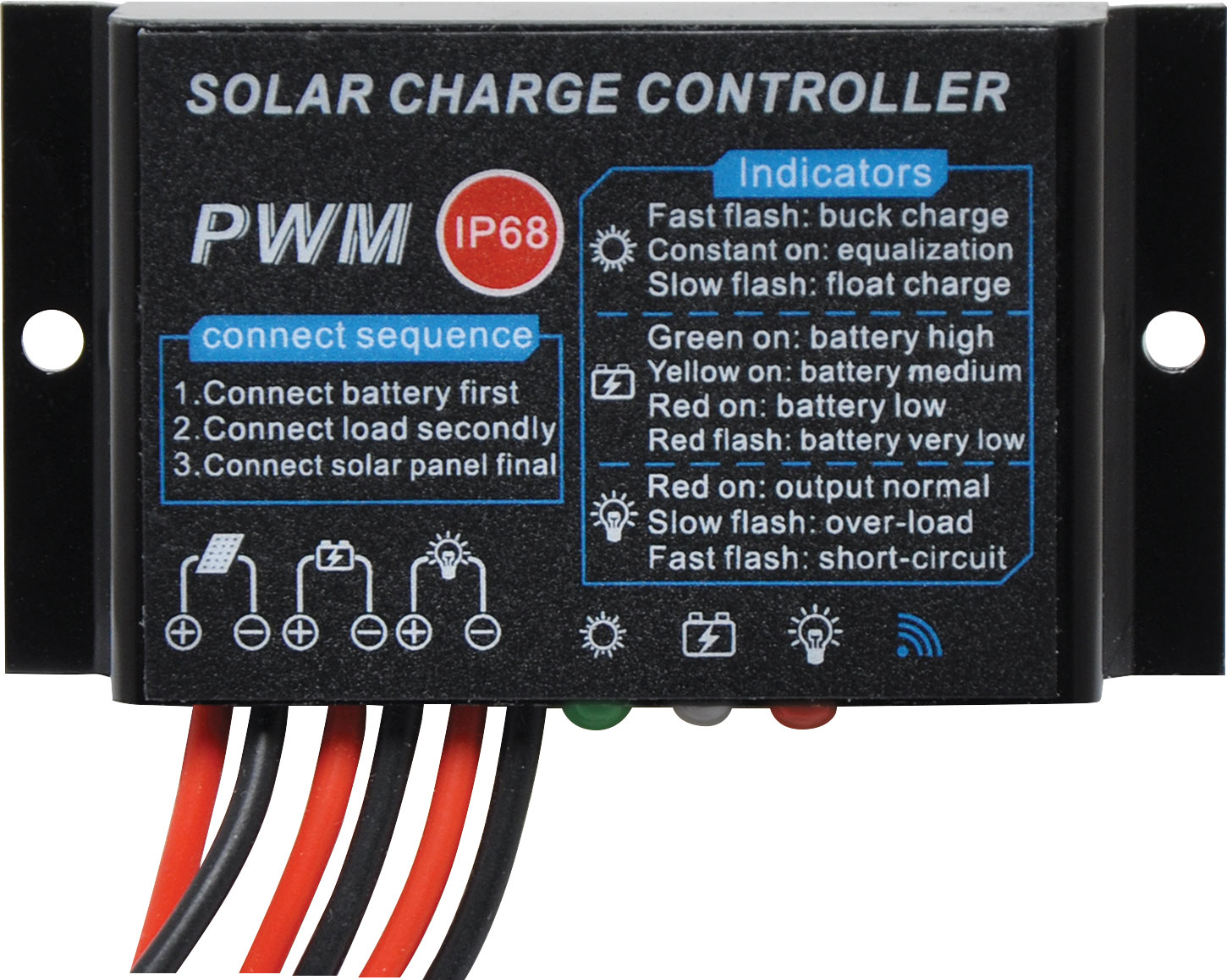

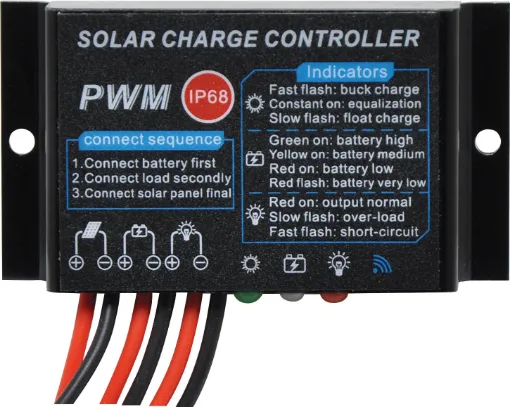

12V 10A 120W PWM Waterproof Solar Charge Controller

Be the first to review this product
This compact PWM 4 stage solar charge controller is ideal for 12V battery systems.
SKU: N2008
$41.77 $31.82
Per ea
Save $9.95
Quantity Price
ea $41.77 $31.82
4+ $38.14 $31.82
6+ $34.09 $31.82

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

This compact PWM 4 stage solar charge controller is ideal for 12V battery systems. The entire PCB assembly is housed in an aluminium heatsink extrusion, which is epoxy filled for moisture & dust resistance. The internal circuitry provides protection against several conditions which can potentially damage your battery or the controller itself. These include over charge, over discharge, over current, reverse polarity and short circuits. IP68 rated. Size: 82Wx45Dx21Hmm

Features

  • Fully sealed in epoxy for reliable performance in harsh environments
  • Rated to IP68 for dust and moisture protection
  • Easy in line connection
  • Tough aluminium extrusion case design
  • Over charge protection
  • Over discharge protection
  • Over current protection
  • Reverse polarity protection
  • Short circuit protection.

Specifications:

Battery voltage: 12V

  • Charge current: 10A
  • Discharge current: 10A
  • Max Solar input: 41V
  • Charge drop: <0.2V
  • Discharge drop: <0.25V
  • Equalization: 14.8V
  • Bulk: 14.5V
  • Acceptance: 14.2V PWM
  • Float: 13.8V
  • Charge reconnect: 13.0V
  • Discharge stop: 11.2V
  • Discharge reconnect: 12.6V
  • Self-consume: <10mA
  • Voltage of open light: Solar panel 8V (delay 10s)
  • Voltage of close light: Solar panel 8V (delay 60s)
  • Temperature compensation: N/C
  • Operating temperature -35 to +60C
  • Size/Weight: 82 x 45 x 21mm, 120g

12 Months

We Offer 12 Months for this product
