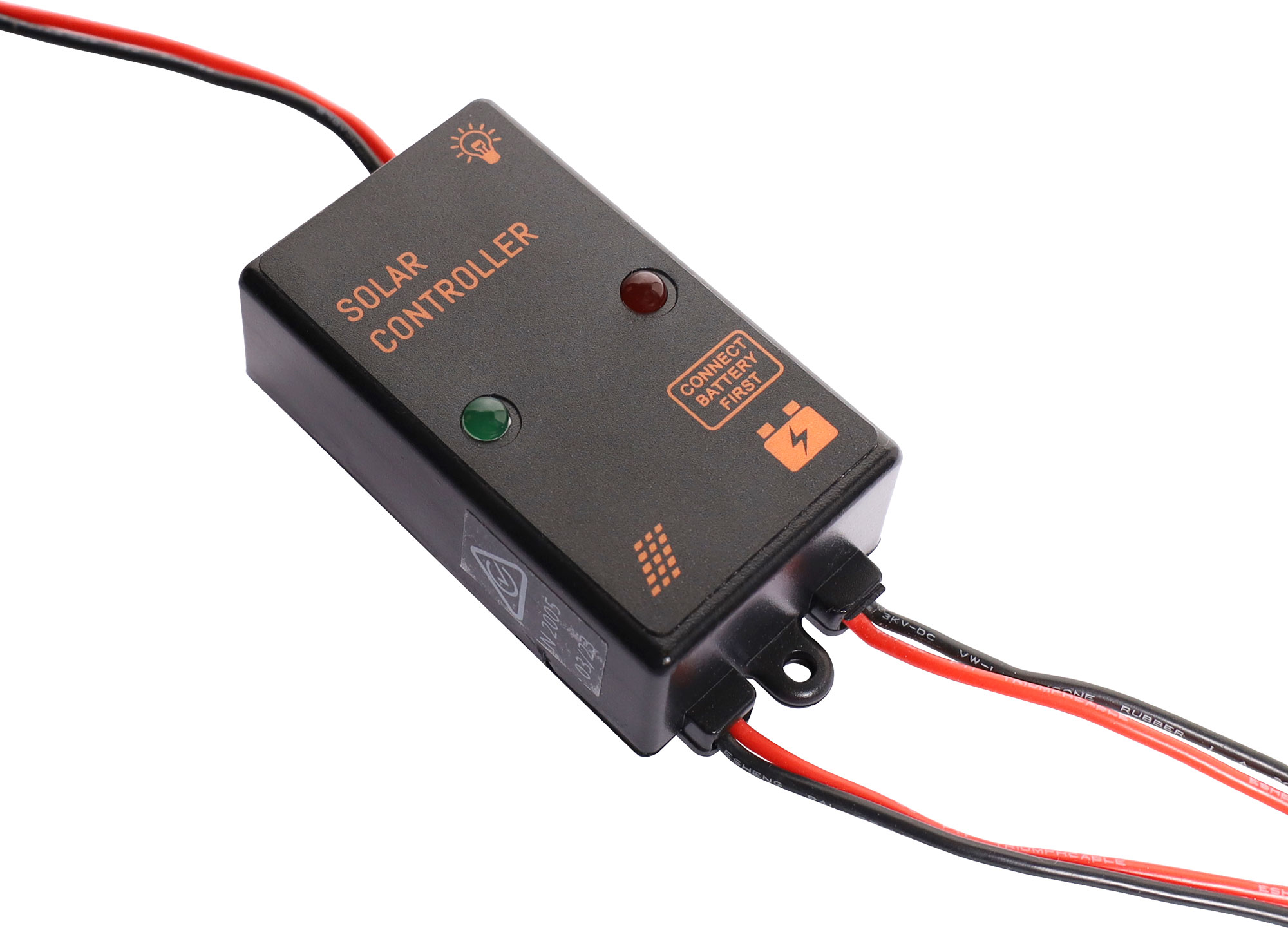

6V/12V 5A PWM Waterproof Solar Charge Controller

Be the first to review this product
This compact PWM solar charge controller is ideal for 6V & 12V battery systems and provides a max charge current up to 5A (suits solar panels up to 60W).
SKU: N2005
$31.77
Per ea
QuantityPrice
ea$31.77
4+$28.64
6+$25.41

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

This compact PWM solar charge controller is ideal for 6V & 12V battery systems and provides a max charge current up to 5A (suits solar panels up to 60W). The entire PCB assembly is housed in an epoxy filled housing measuring just 80Wx37Dx22Hmm. The internal circuitry provides protection against several conditions which can potentially damage your battery or the controller itself. These include over charge, over discharge, over current, reverse polarity and short circuits (when used with a 5A protection fuse).

Specifications

Waterproof IP67

  • Rated Voltage:DC 6V/12V
  • Max input VOC: 11V(6V) / 22V(12V)
  • Max Current: 5A
  • Voltage of solar panels: 30W (5A,6V)/60W (5A,12v)
  • Float: 13.8V
  • Charge reconnect: 6.5V (6V) / 13V (12V)
  • Discharge stop: 5.6V(6V) / 11.2V(12V)
  • Discharge reconnect: 6.3V(6V) / 12.6V(12V)
  • Working Temp:-10- +40°
  • Weight:80g
  • Dimensions: 8L x 3.7W x 2.2Hcm

12 Months

We Offer 12 Months for this product
