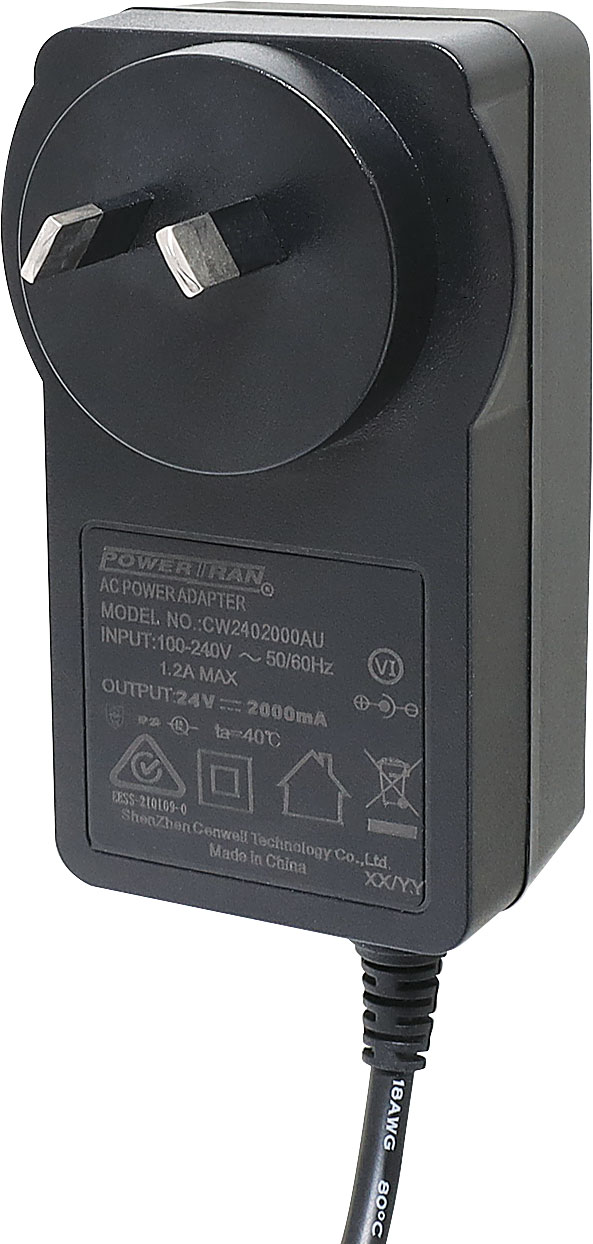

24V DC 2A Appliance Power Supply Adapter

Manufacturer: Powertran
Be the first to review this product
24V DC 2A switch mode plug pack.
SKU: M8969
$36.32
Per ea
QuantityPrice
ea$36.32
2+$32.68
4+$29.05

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

24V DC, 2A switch mode plug pack supplied with a fixed positive to tip 2.1mm DC jack (2.1ID x 5.5OD x 10L). Compact design with high current regulated output. Energy authority approved. MEPS approved.

Features

  • MEPS efficiency level V
  • Australian Standards Compliant
  • Suitable for a range of electronic devices
  • Compatible with Australian mains power point

Specifications

Input

  • Input Voltage Range: 90V AC to 264V AC
  • Rated Voltage Range: 100V AC to 240V AC
  • Input Frequency Range: 47Hz to 63Hz
  • Rated Input Frequency: 50Hz/60Hz
  • Input Current: 1.2A max at full load
  • Inrush Current (cold start): 80A typical peak, 220V AC input
  • Output
  • Output Voltage: 24V DC
  • Output Ripple & Noise: =200
  • Output Current: 2000mA

General

  • Operating Temperature: 0°C to 40°C, full load, normal operation.
  • Storage Temperature: -40°C to +85°C.
  • Relative Humidity: 5% (0°C) ~95% (40°C), 72 hours, full load, normal operation.
  • Barrel Length: 10mm
  • Plug Tip Type: 5.5mm outer diameter and 2.1mm inside diameter
  • Polarity: Positive centre
  • Cable Length: 1.8m
  • MEPS Efficiency Level: V
  • Dimensions: 49W x 90H x 42D mm.

12 Months

We Offer 12 Months for this product
