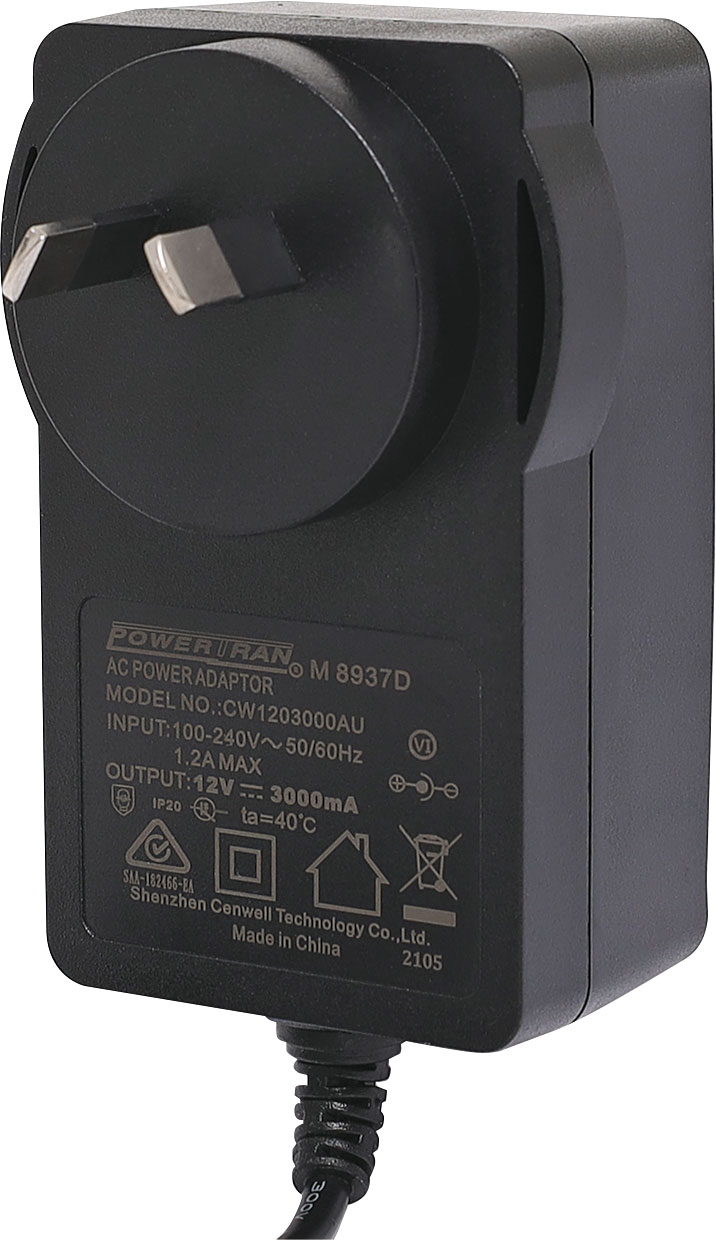

12V DC 3A Appliance Power Supply Adapter

Specifications

Input

• Rated Input Voltage: 100-240V AC
• Operating Range: 90-264V AC
• Rated Input Frequency: 50/60Hz
• Variation Frequency: 50/60Hz +/- 3Hz
• Rated Input Current: 0.8A Max.
• Primary Current Protection: An adequate internal fuse on the AC input line is provided
• Power Consumption (no loading): 0.1W Max. (Input voltage 115V and 230V)
• Configuration: II Conductor
• AC Leakage Current: 0.25mA (Max) @ 240V AC input

Output

• DC Output Voltage: 12V DC
• Minimum Load Current: 0.01A
• Rating Load Current: 3A
• Rating Output Power: 36W
• Line Regulation: The line regulation is less than ±5% while measuring at rated load and +/-10% of input voltage changing.
• Load Regulation: The load regulation for +12V is less than ±5%, at measured output load from 0% to 100% rated load

General

• Temperature: Operating: 0°C +40°C, Non-Operating: -20°C +80°C
• Humidity: Operating: 10%~90% (Non Condensing), Non-Operating: 10%~90% (Non Condensing)
• Barrel Length: 10mm
• Plug Tip Type: 5.5mm outer diameter and 2.1mm inside diameter
• Polarity: Positive centre
• Cable Length: 1.8m
• MEPS Efficiency Level: VI
• Dimensions: 49W x 85H x 42D mm.
