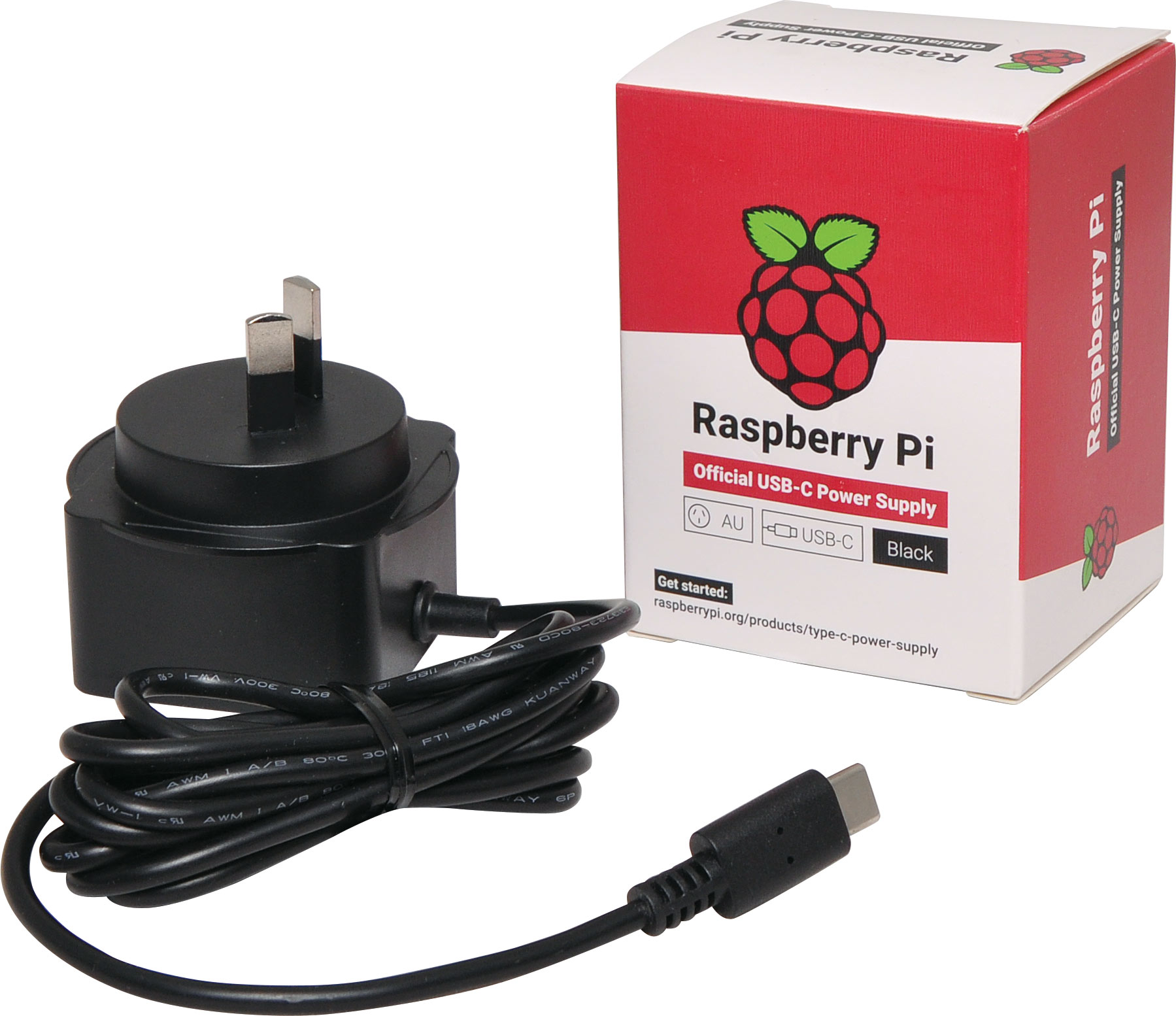

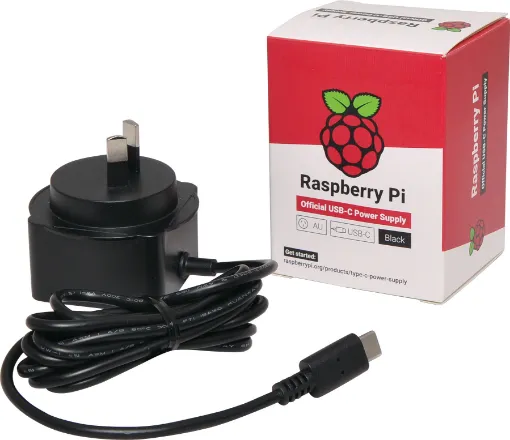

5.1V DC 3A Raspberry Pi 4 Power Supply

Manufacturer: Raspberry Pi
Be the first to review this product
Official Raspberry Pi power supply, ideal for use with the Raspberry Pi 4 Model B board. This power supply comes with USB Type C lead and AU mains plug. It supports up to 3A of current to power devices through four USB ports on the board.
SKU: M8821
$20.00
Per ea
QuantityPrice
ea$20.00

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Official Raspberry Pi power supply, ideal for use with the Raspberry Pi 4 Model B board. This power supply comes with USB Type C lead and AU mains plug. It supports up to 3A of current to power devices through the USB ports on the board.

Specifications

Output

  • Output voltage: +5.1V DC
  • Minimum load current: 0A
  • Nominal load current: 3.0A
  • Maximum power: 15.3W
  • Load regulation: ±5%
  • Line regulation: ±2%
  • Ripple & noise: 120mVp-p
  • Rise time: 100ms maximum to regulation limits for DC outputs
  • Turn-on delay: 3000ms maximum at nominal input AC voltage and full load
  • Protection: Short circuit protection, Overcurrent protection, Over temperature protection
  • Efficiency: 81% minimum (output current from 100%, 75%, 50%, 25%), 72% minimum at 10% load
  • Output cable: 1.5m 18AWG
  • Output connector: USB Type-C

Input

  • Voltage range: 100-240Vac (rated), 96-264Vac (operating)
  • Frequency: 50/60Hz ±3Hz
  • Current: 0.5A maximum
  • Power consumption (no load): 0.075W maximum
  • Inrush current: No damage shall occur and the input fuse shall not blow

12 Months

We Offer 12 Months for this product
