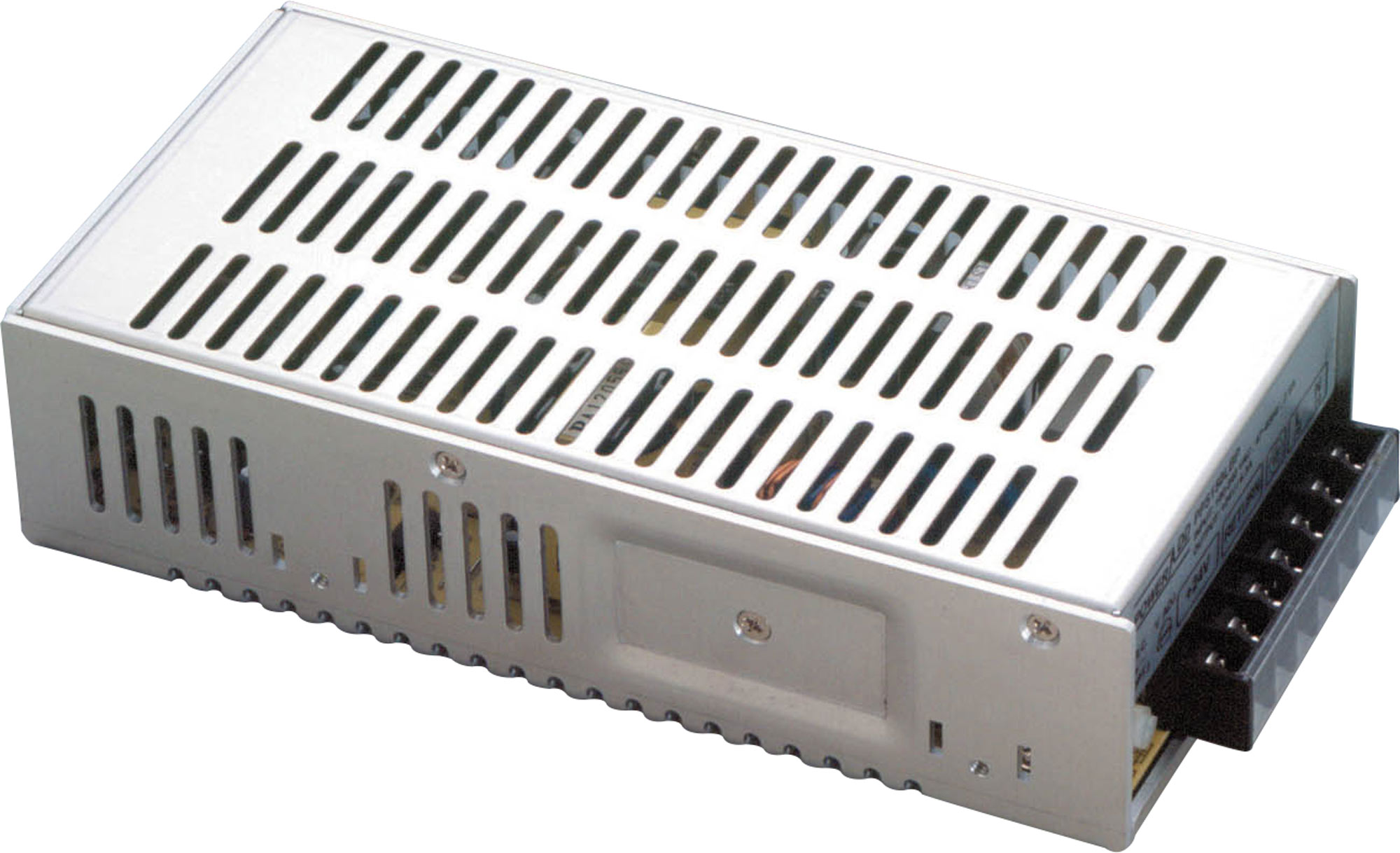

150W 24VDC Switchmode Power Supply

Manufacturer: Powertran
SKU: M8776
Switchmode power supplies offer several significant advantages over traditional linear transformer power supplies.They are far more efficient than their linear counterparts. As they do not use power or mains transformers the equivalent power supply weighs
$145.41

All Prices Shown are (ex GST)
Bulk Pricing
ea $145.41
2+ $138.18
4+ $128.14
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

Switch mode power supplies offer several significant advantages over traditional linear transformer power supplies. They are far more efficient than their linear counterparts. As they do not use power or mains transformers the equivalent power supply weighs considerably less than traditional types. Physical size is also reduced. Though the power supplies are supplied in a vented steel cabinet they must be installed within a secondary earthed cabinet as the 240V input terminals are exposed.

Features

  • Phase correction circuitry
  • Screw terminals for inputs and outputs
  • Wide operating input voltage 90 – 264VAC, 47 – 63Hz
  • Excellent output regulation from no load to full load
  • High efficiency
  • Overload and short circuit protection
  • Inbuilt EMI filter to reduce noise radiation
  • EMC approved

Specifications

Input

  • Input range: 90-264V AC
  • Frequency: 47-63Hz
  • In rush current: 38A typical cold start
  • Efficiency: 65-80% at full load
  • Line regulation: ±0.5%

Output

  • Max power: 150W
  • Output current: 6.25A
  • Ripple/noise: ±1% max

  • Dimensions: 199W x 99D x 50H mm

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
