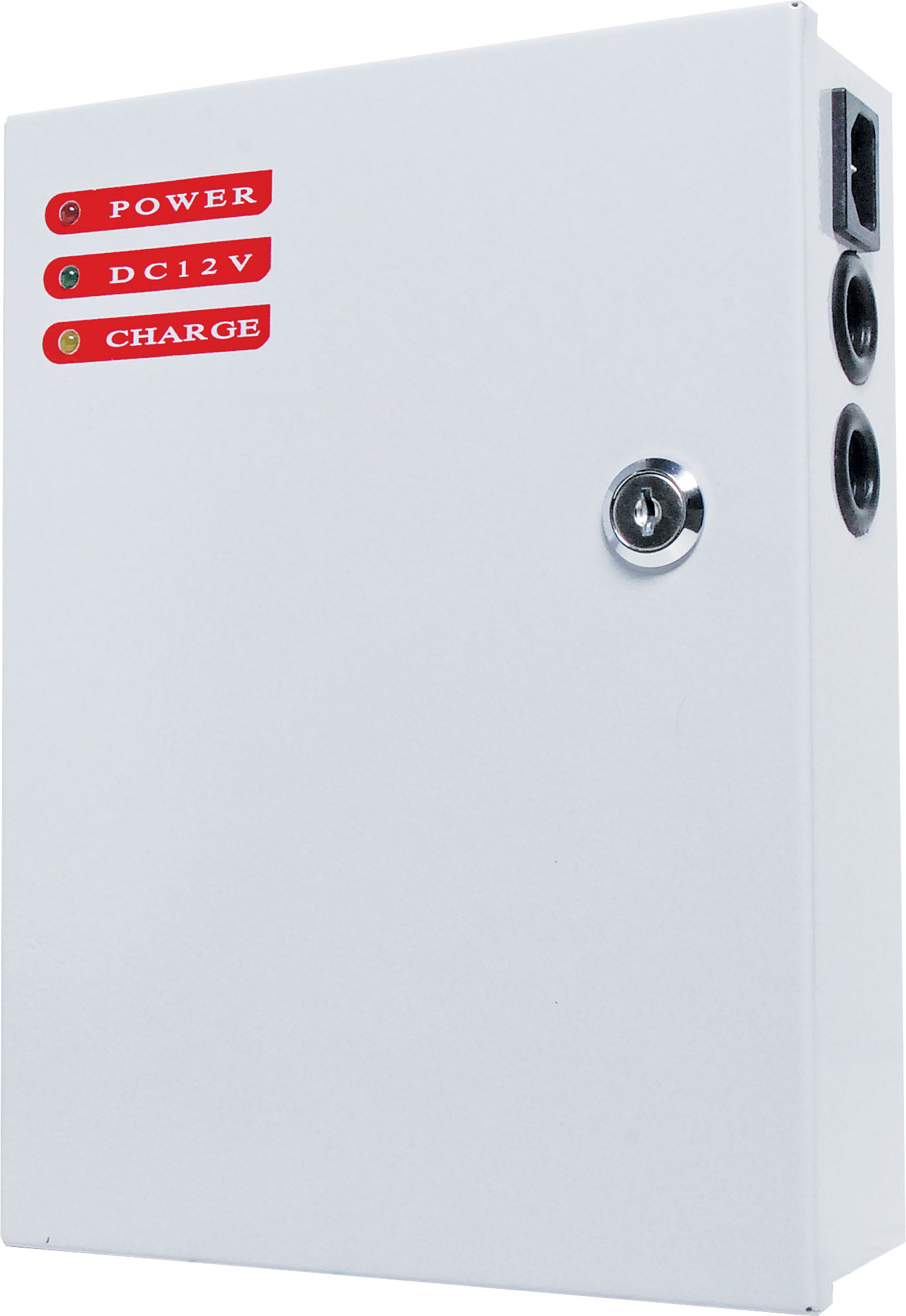

12V DC UPS Battery Backup Power Supply

Be the first to review this product
A complete 12V dc power supply and battery backup in one compact enclosure. When operating from 240V, it automatically charges the internal battery (available separately) and powers the connected load (max 5A). When mains fails, the load switches and is p
SKU: M8561
$135.45
Per ea
QuantityPrice
ea$135.45
2+$122.73
4+$113.64

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

A complete 12V DC power supply and UPS battery backup in one compact enclosure. When operating from 240V, it automatically charges the internal battery (available separately) and powers the connected load (max 5A). When mains fails, the load switches and is powered from the battery. Recommended battery is 7.2Ah 12V (S4540). Features output short circuit protection, output current limiting and over voltage protection. Separate battery charging circuit with fast changeover and standby battery low voltage cutoff (10V). Screw terminal connections. Ideal for alarm backup use. Indoor use only. IEC power lead included.

Note: Unit will power up upon power and battery connection. If a short circuit occurs, the unit will automatically restart when the short condition is removed/fixed.

Features

  • Output short-circuit protection (Auto reset when short circuit is removed)
  • Output current-limiting and over-voltage protection
  • Separate standby battery circuit with fast changeover
  • Standby battery voltage shutdown below 10.8V DC

Specifications

Input Power: 100-240V AC @ 50-60Hz

  • Output Power: 12V DC 15% tolerance
  • Output Current: 5A (max)
  • Standby Battery: 12V/7Ah
  • Current Protection: 6A +/- 5%
  • Noise: = 100mV
  • Efficiency: = 85%
  • Charge Voltage: 13.8V DC
  • Charge Current: 1A
  • Battery Under Voltage Protection: 10V DC
  • Enclosure Dimensions: 265 x 195 x 75 mm
  • Weight: 1.5kg

12 Months

We Offer 12 Months for this product
