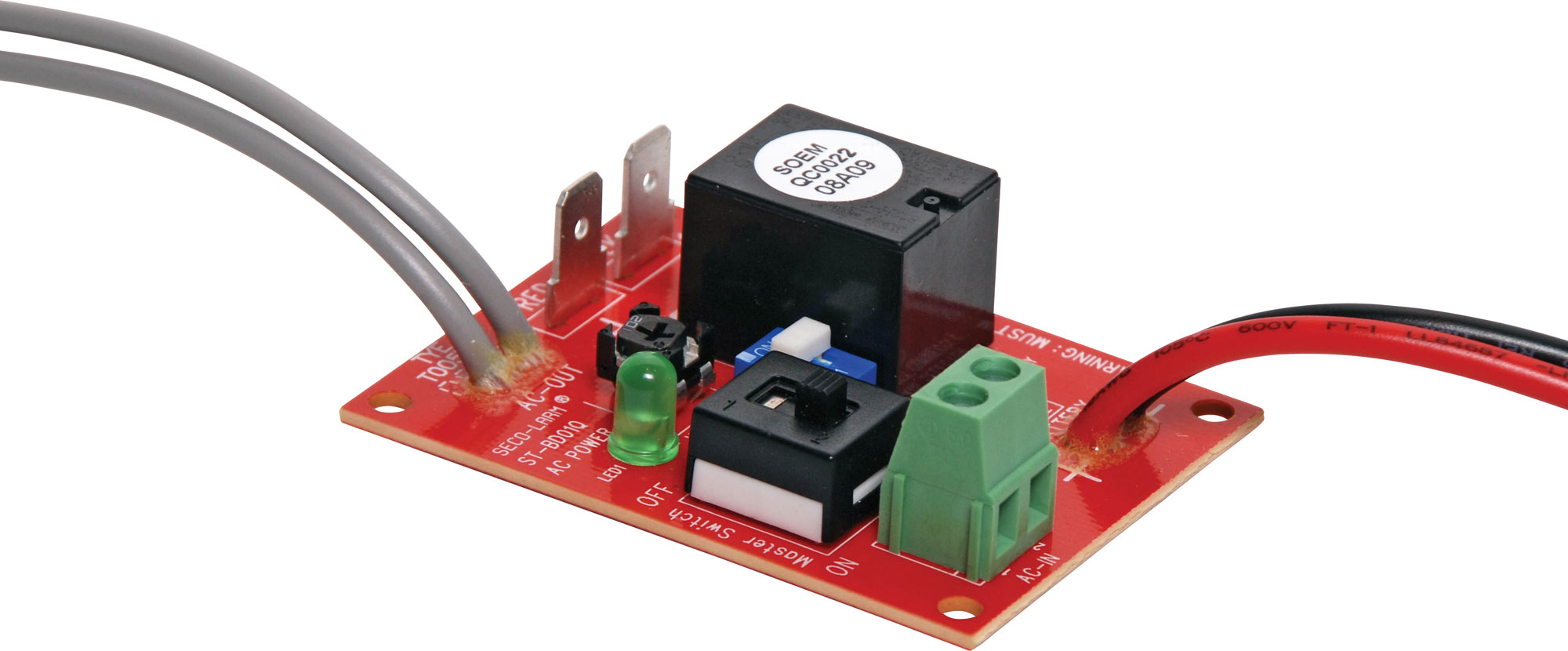

Low Battery Cut Off Module

Manufacturer: Enforcer
Be the first to review this product
Compatible with both 12 and 24V batteries, this cut off module prevents deep discharge of SLA backup batteries in security & UPS backup systems. This ensures longer battery service life. Simple in-line connection between battery and control panel. Cut off
SKU: M8550
$34.50
Per ea
QuantityPrice
ea$34.50
2+$32.95
4+$31.36

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Compatible with both 12 and 24V batteries, this cut off module prevents deep discharge of SLA backup batteries in security & UPS backup systems. This ensures longer battery service life. Simple in-line connection between battery and control panel. Cut off point is adjustable between 9-10V in a 12V system or 19.2-20.3V in a 24V system. A master on/off switch is also provided for disconnecting the battery from the control panel.

Specifications

12V cut off point: 9-10V

  • 24V cut off point: 19.2-20.3V

Relay contact rating: 7A @ 30VDC

  • LED indicators:
  • Green: AC
  • Red: 12VDC
  • Blue: 24VDC

Connections:

  • AC input: Terminal block
  • AC output: Grey wire leads
  • DC Quick-connect terminal (battery side)
  • On-board male spade terminal

Dimensions 60 x 45 x 22 mm.

    12 Months

    We Offer 12 Months for this product
