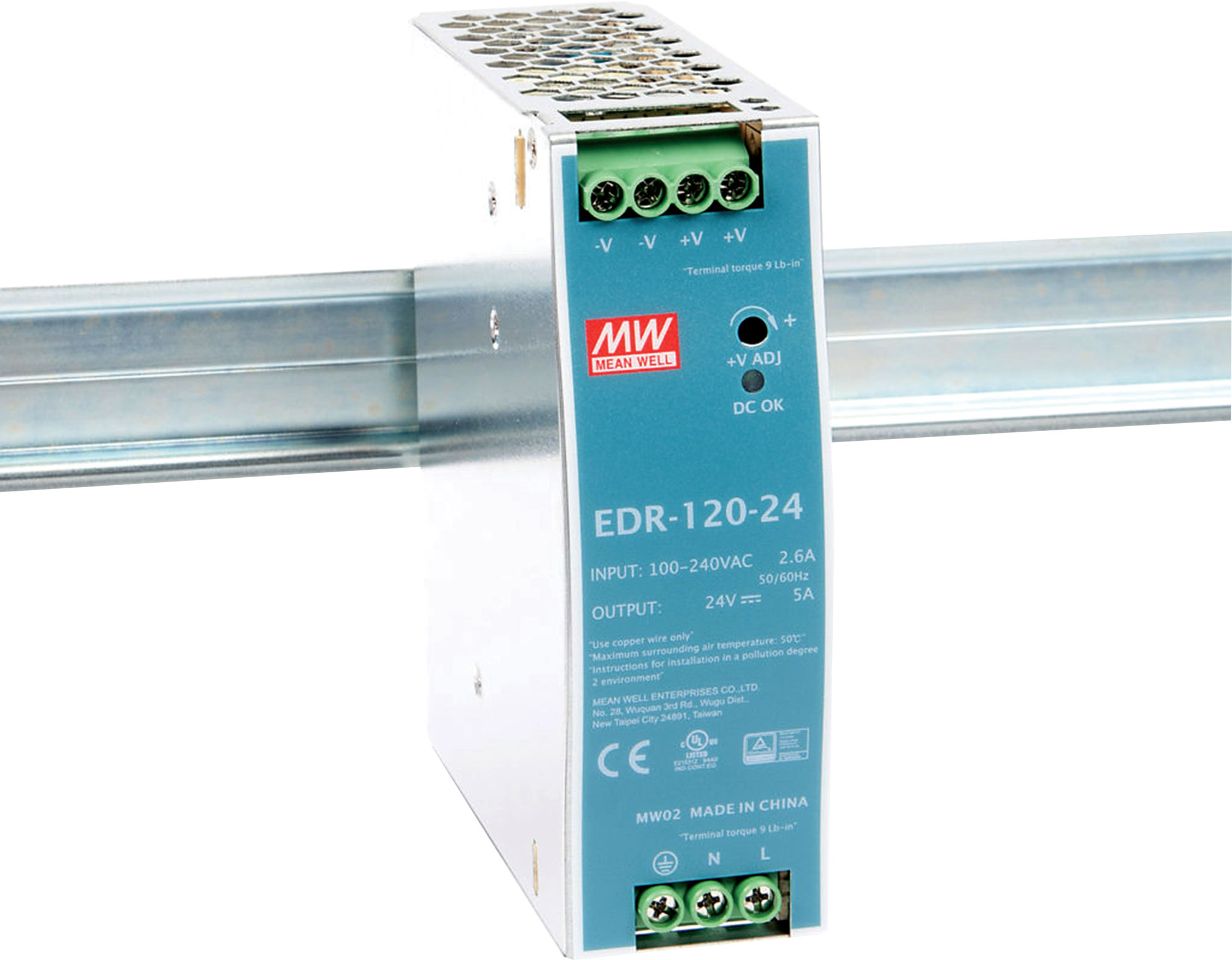

EDR-120-24 120W 24VDC 5A DIN Rail Power Supply

Manufacturer: Mean Well
Be the first to review this product
The Mean Well EDR-120-24 provides 24VDC 5A output with a rated power output of 120W. The compact enclosure is easy to wire with recessed terminals. Each Mean Well power supply includes protection from short circuit, over load and over voltage conditions to protect the supply and connected equipment from damage.
SKU: M8410A
$75.00
Per ea
Quantity Price
ea $75.00
2+ $72.05
4+ $69.05

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

The Mean Well EDR-120-24 provides 24VDC 5A output with a rated power output of 120W. The compact enclosure is easy to wire with recessed terminals. Each Mean Well power supply includes protection from short circuit, over load and over voltage conditions to protect the supply and connected equipment from damage. Suitable for mounting to DIN rail TS-35/7.5 or 15 types.

Switch mode power supplies offer several significant advantages over traditional linear transformer power supplies. They are far more efficient than their linear counterparts. As they do not use power or mains transformers the equivalent power supply weighs considerably less than traditional types. Physical size is also reduced.

Features

  • 120W rated power
  • 24V DC 5A output
  • Vented metal enclosure
  • Universal AC input / Full range.
  • Protections: Short circuit, overload, over voltage, and over temperature.
  • Cooling by free air convection.
  • Can be installed on TS-35/7.5 or TS-35/15 DIN rail.
  • High quality and economical.
  • Narrow profile to optimise space on the DIN rail.
  • LED ‘power on’ indicator.
  • DC output adjuster to increase the rated output voltage to +15%.
  • Wide ambient temperature range from –20°C to +60°C.
  • 100% full load burn-in test.
  • UL 508 (industrial control equipment) approved.
  • EN 61000-6-2 (EN 50082-2) industrial immunity level.

Specifications

Output

  • DC Voltage: 24V
  • Rated Current: 5A
  • Current Range: 0 ~ 5A
  • Rated Power: 120W
  • Ripple & Noise: 120mVp-p
  • Voltage Range: 24 ~ 28V
  • Voltage Tolerance: ±1.0%
  • Line Regulation: ±0.5%
  • Load Regulation: ±1.0%
  • Setup, Rise Time: 1200ms, 60ms/230VAC 2500ms, 60ms/115VAC at full load
  • Hold up time: 16ms/230VAC 10ms/115VAC at full load

Input

  • Voltage Range: [DC input operation possible by connecting AC/L (+), AC/N (-)]
  • Frequency Range: 47 ~ 63Hz
  • Efficiency: 87.5%
  • AC Current: 2.25A/115VAC 1.3A/230VAC
  • Inrush Current: 20A/115VAC 35A/230VAC
  • Leakage Current: <1mA / 240VAC

Protection

  • Overload: 105 ~ 130% rated output power
  • Over Voltage: 29 ~ 33V, Protection type : Shut down o/p voltage, re-power on to recover
  • Over Temperature: Shut down o/p voltage, re-power on to recover

Environment

  • Working temperature: -20 ~ +60°C(Refer to "Derating Curve")
  • Working Humidity: 20 ~ 95% RH non-condensing
  • Storage Temperature, Humidity: -40 ~ +85°C, 10 ~ 95% RH
  • Temperature Coefficient: ±0.03%/°C(0 ~ 50°C)
  • Vibration: Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
  • Mounting: Compliance to IEC60068-2-6

Safety & EMC

  • Safety standards: Ul508, TUV EN60950-1 approved;(meet EN60204-1)
  • Withstand voltage: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
  • Isolation Resistance: I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25°C/ 70% RH
  • EMC Emission: Compliance to EN55032 (CISPR32) Class A, EN61000-3-2,-3
  • EMC Immunity: Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-2 (EN50082-2), heavy industry level, criteria A

Other

  • MTBF: 474.6K hrs min. MIL-HDBK-217F (25°C)
  • Dimension: 40 x 125.2 x 113.5mm
