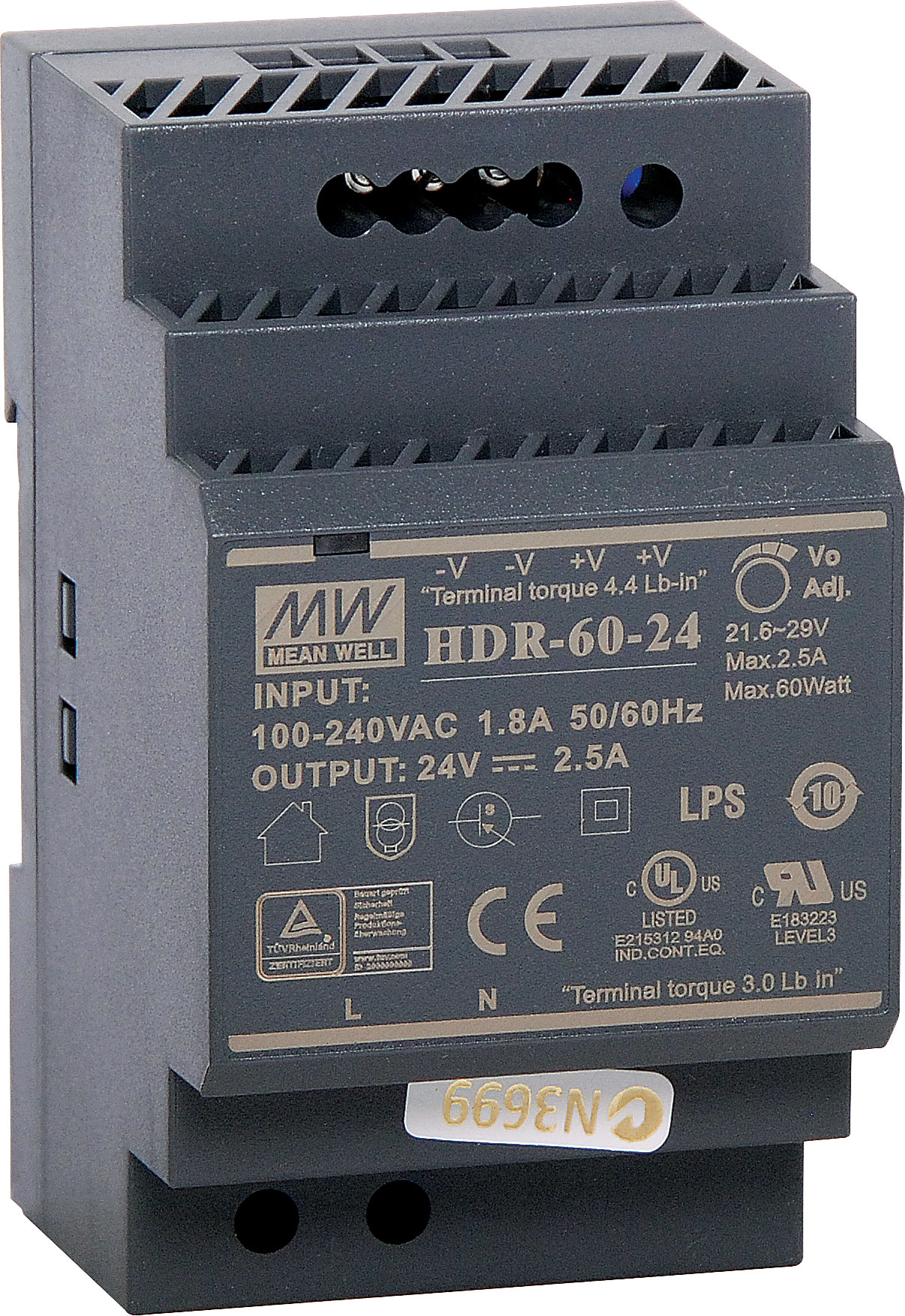

HDR-60-24 60W 24VDC 2.5A DIN Rail Switchmode Power Supply

Manufacturer: Mean Well
Be the first to review this product
The Mean Well HDR-60-24 is a 60W DIN rail mountable power supply with a DC output voltage of 24V. The design is ideal for lower current DC power applications in a standardised DIN rail housing to suit mounting to asymmetrical “G” or 35mm top hat type DIN rails.
SKU: M8395
$54.50
Per ea
QuantityPrice
ea$54.50
2+$52.32
4+$50.50

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

The Mean Well HDR-60-24 is a 60W DIN rail mountable power supply with a DC output voltage of 24V. The design is ideal for lower current DC power applications in a standardised DIN rail housing to suit mounting to asymmetrical “G” or 35mm top hat type DIN rails. Each unit measures only 90mm high and is supplied in 35mm and 52.5mm widths.

Features

  • 60W power output at 24V DC (2.5A)
  • Ultra slim design with 35 or 52.5mm widths
  • Universal AC input
  • Protections: short circuit, overload, over voltage
  • Cooling by free air convection
  • Suits TS-35/7.5 or 15 DIN rail
  • LED power indicator

Specifications

Mean Well Model: HDR-60-24

  • Output: 2.5A
  • Rated Wattage: 60W
  • Inrush Current: 30A
  • Efficiency: 90%
  • Input Range: 85-264V AC, 120-370V DC
  • Input Frequency: 47-63Hz
  • Warranty: 3 years
  • Weight: 190g
  • Dimensions: 52.5 x 90 x 54.5mm

3 Years

We Offer 3 Years for this product
