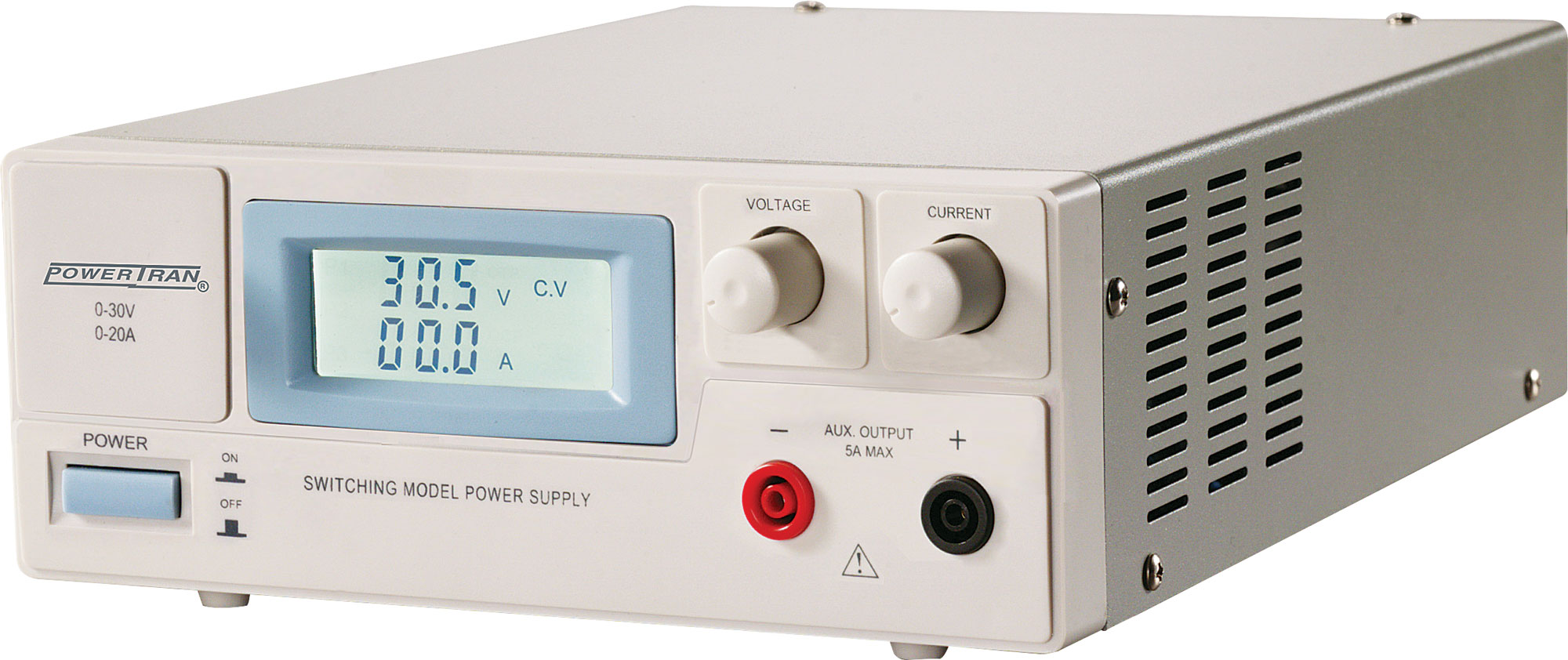

30V 20A Regulated Bench Top Power Supply

Manufacturer: Powertran
Be the first to review this product
A compact, efficient bench top power supply for use in servicing, repair and design of electronics. The low noise switchmode design offers excellent regulation for low current requirements. Offers the flexibility of both wide adjustable voltage and current range. Size: 336W x 87H x 214Dmm. Weight: 2.9kg.
SKU: M8310
$453.64
Per ea
QuantityPrice
ea$453.64
2+$408.18
4+$362.73

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

A compact, efficient bench top power supply for use in servicing, repair and design of electronics. The low noise switchmode design offers excellent regulation for low current requirements. Offers the flexibility of both wide adjustable voltage and current range. Size: 336W x 87H x 214Dmm. Weight: 2.9kg.

Features:

  • Up to 20A output
  • 0-30V adjustable
  • High efficiency switchmode design
  • Over temperature, voltage and overload protection
  • Low ripple & noise
  • High RFI stability

Specifications

Input voltage: a.c. 220-240V @ 50Hz

  • Output voltage: 0 - 30V d.c.
  • Output current max: 20A
  • Supply regulation: CV=1%+10mV
  • Load regulation: CV=1%+5mV
  • Ripple: 100mVp-p
  • Protection: Current limiting
  • Voltmeter: LCD ±2% +3 counts
  • Ammeter: LCD ±2% +3 counts
  • Operating Temperature: 0ºC-40ºC
  • Operating Humidity: 90%
  • Operating time: 8hrs
  • Dimensions: 87 x 214 x 336mm

12 Months

We Offer 12 Months for this product

Only registered users can write reviews
