1-30V 20A Regulated Lab Power Supply

Manufacturer: Manson
SKU: M8213

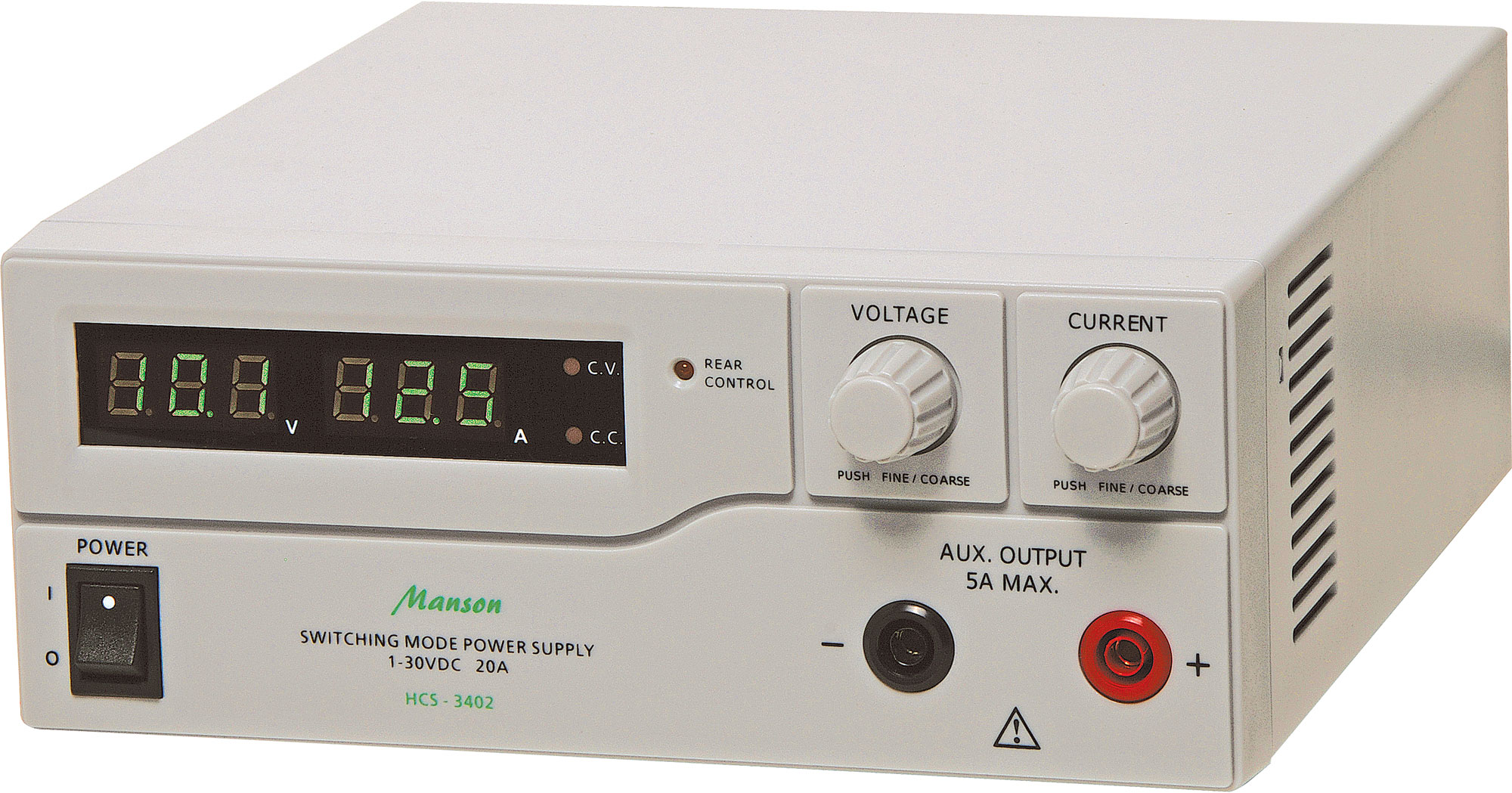

A 1-30V, 20A adjustable current limiting power supply. Both voltage and current settings may be set in fine or coarse modes allowing precise adjustments. Includes three programmable preset outputs.
$571.82

All Prices Shown are (ex GST)
Bulk Pricing
ea $571.82
2+ $518.18
4+ $468.18
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

A 1-30V, 20A adjustable current limiting power supply. Both voltage and current settings may be set in fine or coarse modes allowing precise adjustments. Includes three programmable preset outputs. Remote control of settings is also possible. Fixed 5A auxiliary output on the front panel allows quick connection to devices. When initially powered up the unit performs self diagnostics to ensure reliable operation.

Features

  • 1 to 30V @ 20A output
  • Adjustable current limiting
  • Regulated variable output voltage or fixed via 3 presets
  • Auxiliary fixed output, max 5A
  • Digital LED meters
  • Overload & short circuit protected
  • Extremely low ripple & noise
  • Excellent regulation
  • Highly efficient switchmode design

Specifications

Voltage output: 1 to 30V DC @ 20A

  • Auxiliary outputs: 1 to 30V DC @ 5A max
  • Output current: 20A max
  • Ripple & noise: Less than 5mV
  • Load regulation: 50mV 0-100% Load
  • Apprx. Size(WxHxD): ≈200 x 90 x 215 mm
  • Net weight: ≈2.6kg

Warranty & Returns

12 Months

We Offer 12 Months for this product
