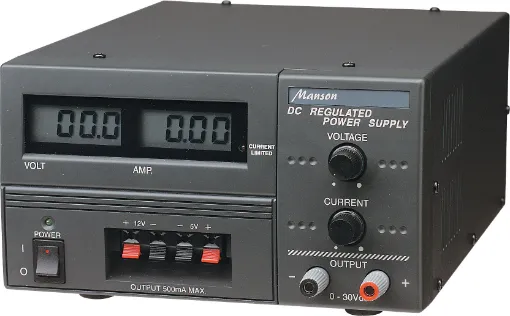

30V 5A Regulated Linear Benchtop Lab Power Supply

Manufacturer: Manson
SKU: M8205
Including both variable output voltage and current this bench power supply is an ideal addition to any work bench. Voltage is fully variable from 0 - 30V on the main terminals, plus auxiliary outputs of fixed 12V and 5V at 0.5A are also provided.
$399.09

All Prices Shown are (ex GST)
Bulk Pricing
ea $399.09
2+ $371.82
4+ $340.91
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

Including both variable output voltage and current this linear mode bench power supply is an ideal addition to any work bench. Voltage is fully variable from 0 – 30V on the main terminals, plus auxiliary outputs of fixed 12V and 5V at 0.5A are also provided. The output current can be set as desired up to 5A. If the load tries to draw more than the value selected, the power supply will shutdown. This is a very useful function as it can prevent damage to the load. Great for R+D, workshops, repair centres, etc.

Features:

  • 0 to 30V @ 0 to 5A output
  • Regulated variable output voltage
  • Auxiliary fixed outputs of 5V & 12V @ 0.5A
  • Variable current limiting
  • Digital LCD meters
  • Overload & short circuit protected
  • Floating outputs
  • Extremely low ripple & noise
  • Linear toroidal design
  • Excellent regulation

Specifications:

Voltage Output: 0 to 30V DC adjustable @ 0-5A

  • Auxillary outputs: Fixed 12 Volt DC Auxiliary @ 0.5A, Fixed 5 Volt DC Auxiliary @ 0.5A
  • Output Current: Variable 0 to 5A on main, 500mA max fixed rails
  • Ripple & Noise: Less than 5mV
  • Load Regulation: 30mV +- 10%
  • Display: Twin LCD meters for Volts & Amps output
  • Mains: Fuse 2A
  • Dimensions: 205W x 115H x 280D mm
  • Net Weight: 6 kg

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
