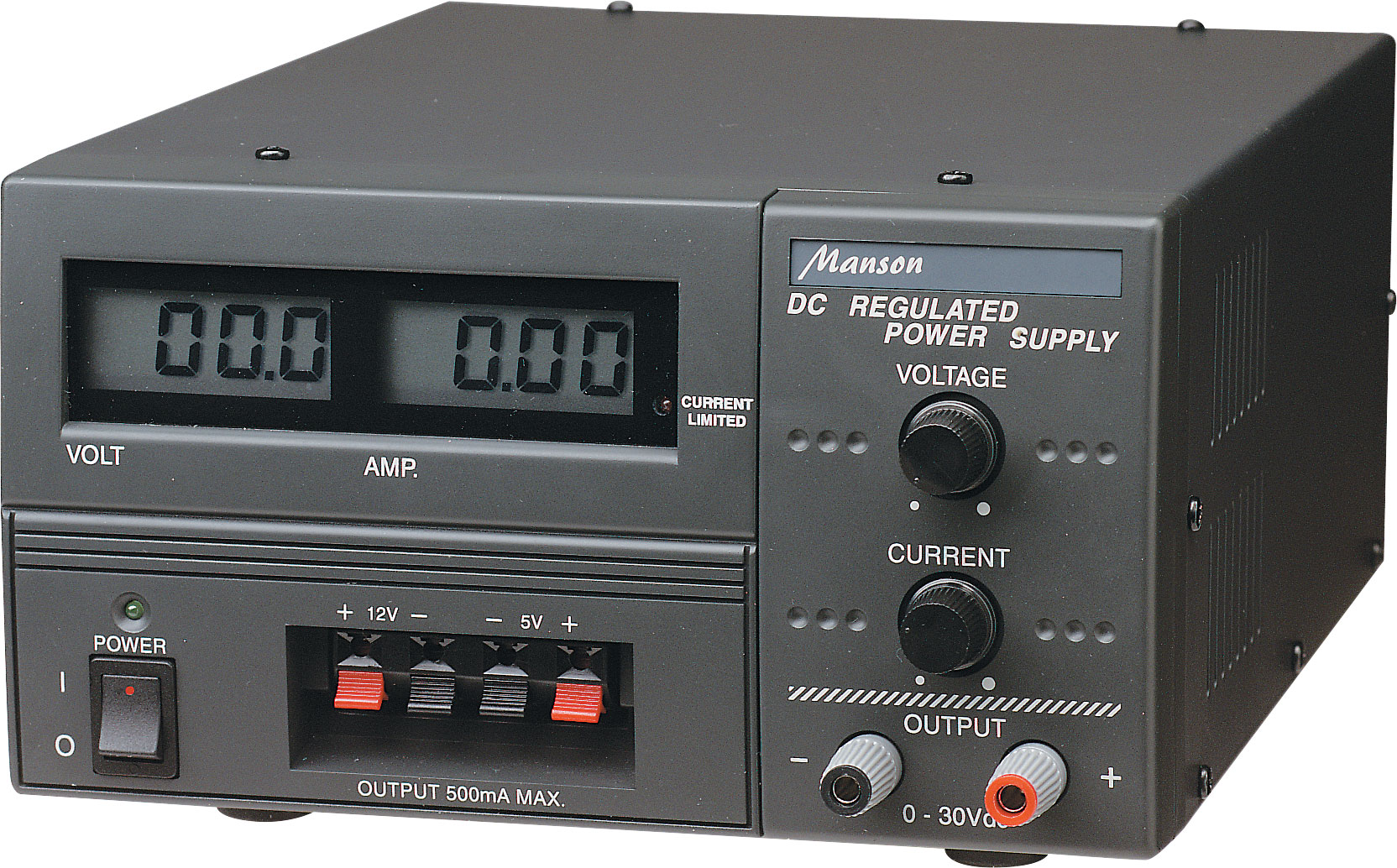

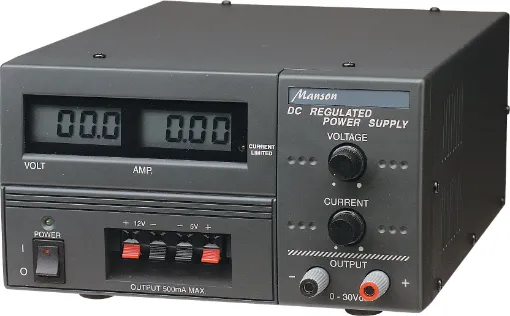

30V 3A Regulated Linear Benchtop Lab Power Supply

Manufacturer: Manson
Be the first to review this product
With an output of up to 30 volts at 3 amps, this compact bench power supply has been one of our most popular. Both output voltage and current are fully adjustable. In the case of an output short, the power supply goes into overload and shuts down. In addi
SKU: M8200A
$380.91
Per ea
QuantityPrice
ea$380.91
2+$353.64
4+$326.36

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

With an output of up to 30 volts at 3 amps, this compact linear mode bench power supply has been one of our most popular. Both output voltage and current are fully adjustable. In the case of an output short, the power supply goes into overload and shuts down. In addition to the variable output, the supply is fitted with 2 fixed outputs, 1 of 12V and the other of 5V both rated at 0.5A. It is ideal for R+D departments, service centres, workshops etc

Features

  • 0 to 30V @ 0 to 3A output
  • Regulated variable output voltage
  • Auxiliary fixed outputs of 5V & 12V @ 0.5A
  • Variable current limiting
  • Digital LCD meters
  • Overload & short circuit protected
  • Floating outputs
  • Extremely low ripple & noise
  • Linear toroidal design
  • Excellent regulation

Specifications

Voltage output: 0 to 30V DC @ 0-3A

  • Auxillary outputs: 12 Volt DC @ 0.5A, 5 Volt DC @ 0.5A
  • Output current: Variable 0 to 3A on main, 500mA max fixed rails
  • Ripple & noise: Less than 5mV
  • Load regulation: 20mV 0-10% Load
  • Apprx. Size(WxHxD): 205W x 115H x 230D mm
  • Net weight: 5.4kg

12 Months

We Offer 12 Months for this product
