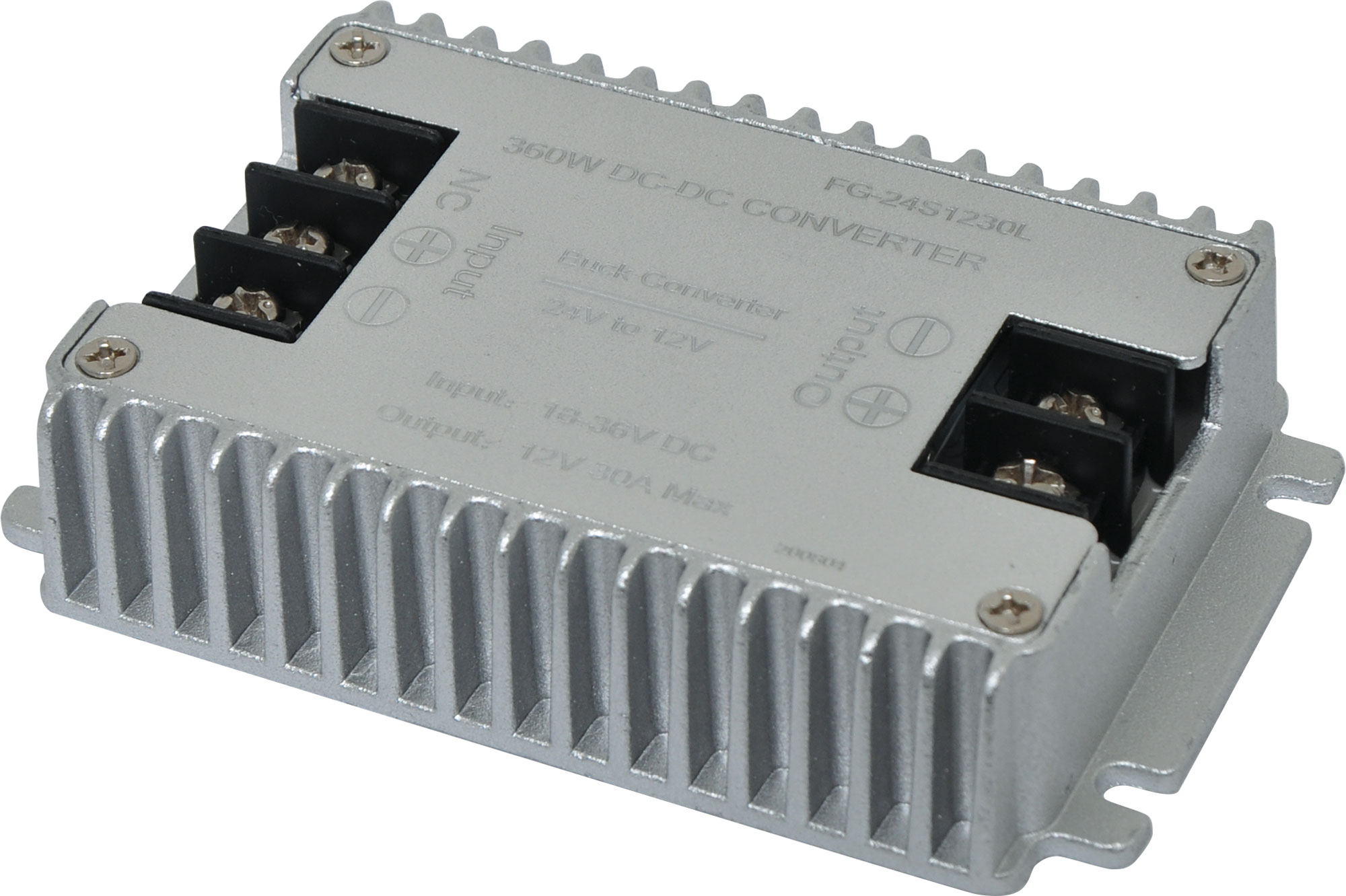

Step Down 24V to 12V 30A 360W DC-DC Converter

Manufacturer: Powertran
Be the first to review this product
This converter provides a regulated 12V d.c. output at a maximum of 30A from a typical 24V battery. Dimensions: 110x70x23mm
SKU: M8169
$81.77
Per ea
QuantityPrice
ea$81.77
2+$72.68
4+$63.59

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Ideal for powering 12V automotive appliances from a 24V battery. This device converts a nominal 24V DC input to 13.8V DC. Suitable for use with stereos, CB radios, navigation equipment, lighting etc in trucks, buses, cars or boats. Epoxy sealed IP65 aluminium case is suitable for engine bay installation. 30A maximum output. Dimensions: 110x70x23mm

Features:

  • High efficiency: 95.5%
  • Input reversing polarity protection
  • Input transient absorption protection
  • Support -40°C environment
  • 100% full load burn in test
  • IP65 rating
  • Over current, over temperature and short circuit protection
  • Non-isolated module

Specifications:

Input voltage: 24V DC nominal

  • Operation voltage range: 18-36V DC
  • No-load current: 50mA (max)
  • Fuse: 30A (built-in)
  • Under voltage shutdown: 18V
  • Under voltage recovery: 20V
  • Output voltage: 11.9-12.15V
  • Output current: 0-30A
  • Voltage regulation: ±1%
  • Load regulation: ±1%
  • Regulator Accuracy: ±1%
  • Recommended cabling: 14AWG (>50cm a larger gauge cable is recommended.)
  • Low voltage Protection
  • Short circuit protection
  • Over current protection

12 Months

We Offer 12 Months for this product
