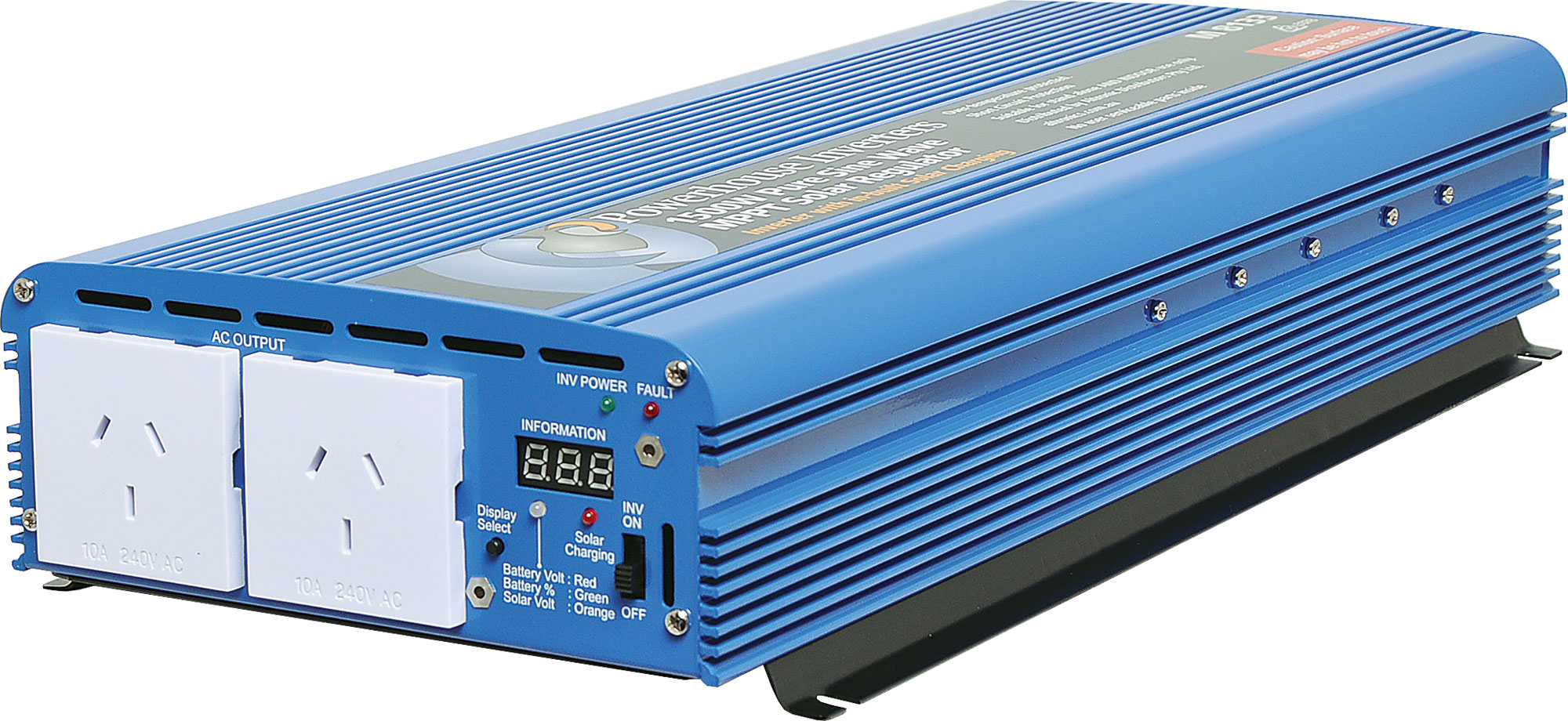

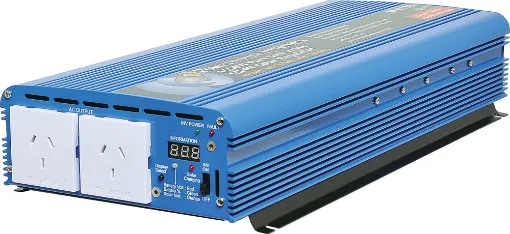

1500W 12V To 240V Pure Sine Wave Inverter & Solar Charger

Manufacturer: Powerhouse
Be the first to review this product
A versatile and high spec inverter with MPPT solar charger in built.
SKU: M8133
$362.73
Per ea
Quantity Price
ea $362.73

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

A versatile and high spec inverter with MPPT solar charger in built. This unit is ideal for off-grid solar panel systems, providing 240V pure AC mains power for your appliances, whilst charging 12V batteries efficiently via an in-built MPPT solar charger. MPPT chargers provide up to 20% more charge energy than conventional regulators. Solar panels are connected directly to the inverter for a neat single unit power solution for caravans, RVs, boats and remote homes. Pure AC output delivering stable power to difficult loads. Designed for sensitive devices requiring low power input such as laptops, switch-mode plug packs, game consoles etc.

Features

  • 3000W surge rating
  • 1500W continuous
  • Pure AC output
  • 3 stage MPPT solar regulator in-built
  • Sturdy construction for use in rugged environments
  • Soft starting
  • High efficiency
  • Reverse polarity protection
  • Output overload protection
  • Over temperature protection
  • High and low battery voltage shutdown
  • Output short circuit protection
  • Standard AC mains outlet for 240V connection

Specifications

Output / surge power: 1500W / 3000W

  • DC input voltage (nominal): 12V DC
  • Output voltage: 240V AC @ 50Hz
  • Output wave form: Pure Sine Wave
  • Efficiency (typical): >90%
  • No-load current draw: <1.8A
  • 12V battery shutdown: 10V low, 15V high
  • Alarm & thermal shutdown: 60°C
  • Max solar panel input: 360W
  • Battery charge current: 12V= 20A
  • Battery charging mode: 3 stages (CC,CV, Floating)
  • PV input voltage range: 12V= 15-22V
  • PV input power max: 12V= 360W (2 x 180W in parallel)
  • LED display: CC,CV, Floating
  • LCD display: Solar Inout Voltage/ Battery Output Voltage
  • Dimensions (L x W x Hmm): 353 x 195 x 83
  • Net weight: 4kg

12 Months

We Offer 12 Months for this product
