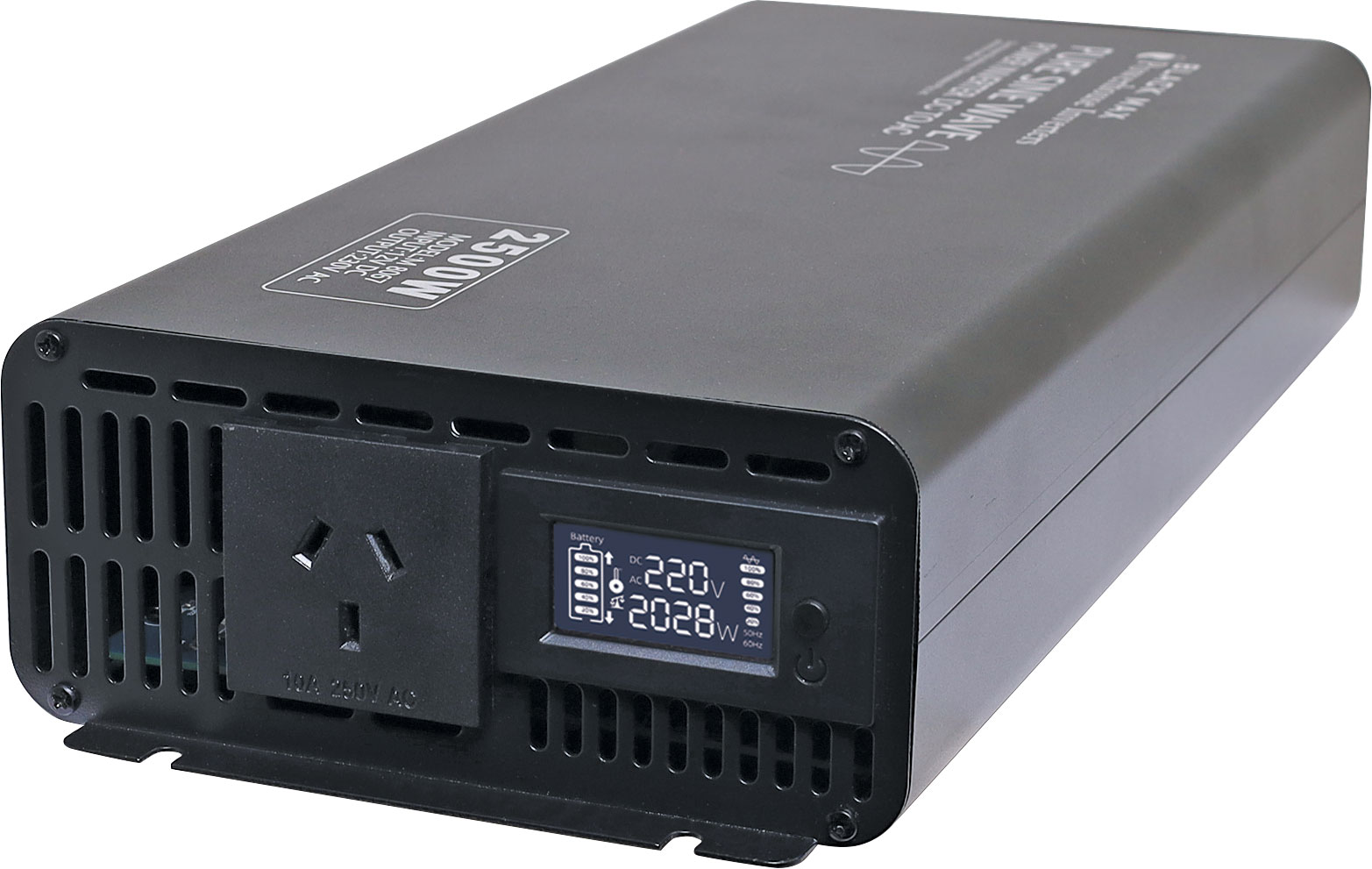

2500W 12V DC To AC Pure Sine Wave Power Inverter

Manufacturer: Powerhouse
This inverter is designed to deliver pure AC output for powering difficult loads such as appliances with switchmode power supplies (computers, displays & game consoles) and voltage sensitive devices.
SKU: M8067
$1,090.00
Per ea
QuantityPrice
ea$1,090.00
2+$980.91
4+$871.82

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

This inverter is designed to deliver pure AC output for powering difficult loads such as appliances with switch mode power supplies (computers, displays & game consoles) and voltage sensitive devices such as medical equipment. It features a handy multi-function display which provides a complete picture of operating parameters including battery capacity bar graph, input voltage, output voltage, protection conditions, power load & power capacity bar graph. Excellent for powering appliances whilst camping, boating or in remote locations when normal 240V mains power is unavailable. Isolated design for maximum electrical safety during operation and will self reset from a number of abnormal operating conditions once the condition is resolved (such as over voltage and over temperature). Housed in a rugged aluminium case with flange mounting points and in built cooling fans.

Requires 1 x CR2025 battery for remote (sold separately)

Features

  • Galvanic isolation between AC and DC for maximum electrical safety
  • Pure sine wave output
  • Certified to Australian Standard AS/NZS 4763.2011
  • Safety authority tested for reliable & safe operation
  • Over temperature, over voltage, over load and short circuit protection
  • Low voltage cut off
  • Excellent voltage regulation
  • Binding post connection to battery
  • Temperature controlled cooling fan

Specifications

Output Power: 2500W

  • Display Method: LCD Display
  • Input Voltage: 12V DC
  • Input Range: 10-15V
  • Low Voltage Protection: 10.0V ± 0.3
  • Over Voltage Protection: 15.0V ± 0.3
  • Recovery Voltage: 13.2V ± 0.3
  • No-Load Current: 0.5A
  • Overload Protection: 2500W > 110%
  • Output Voltage: 230V AC
  • Output Frequency: 50Hz
  • Output Waveform: Pure sine wave
  • Overheating Protection: 80% ± 5°
  • Waveform THD: =3%
  • Conversion Efficiency: 90%
  • Cooling Method: Fan Cooling
  • Dimensions: 400 x 242 x 88 mm
  • Net Weight: 8kg





2 Years

We Offer 2 Years for this product
