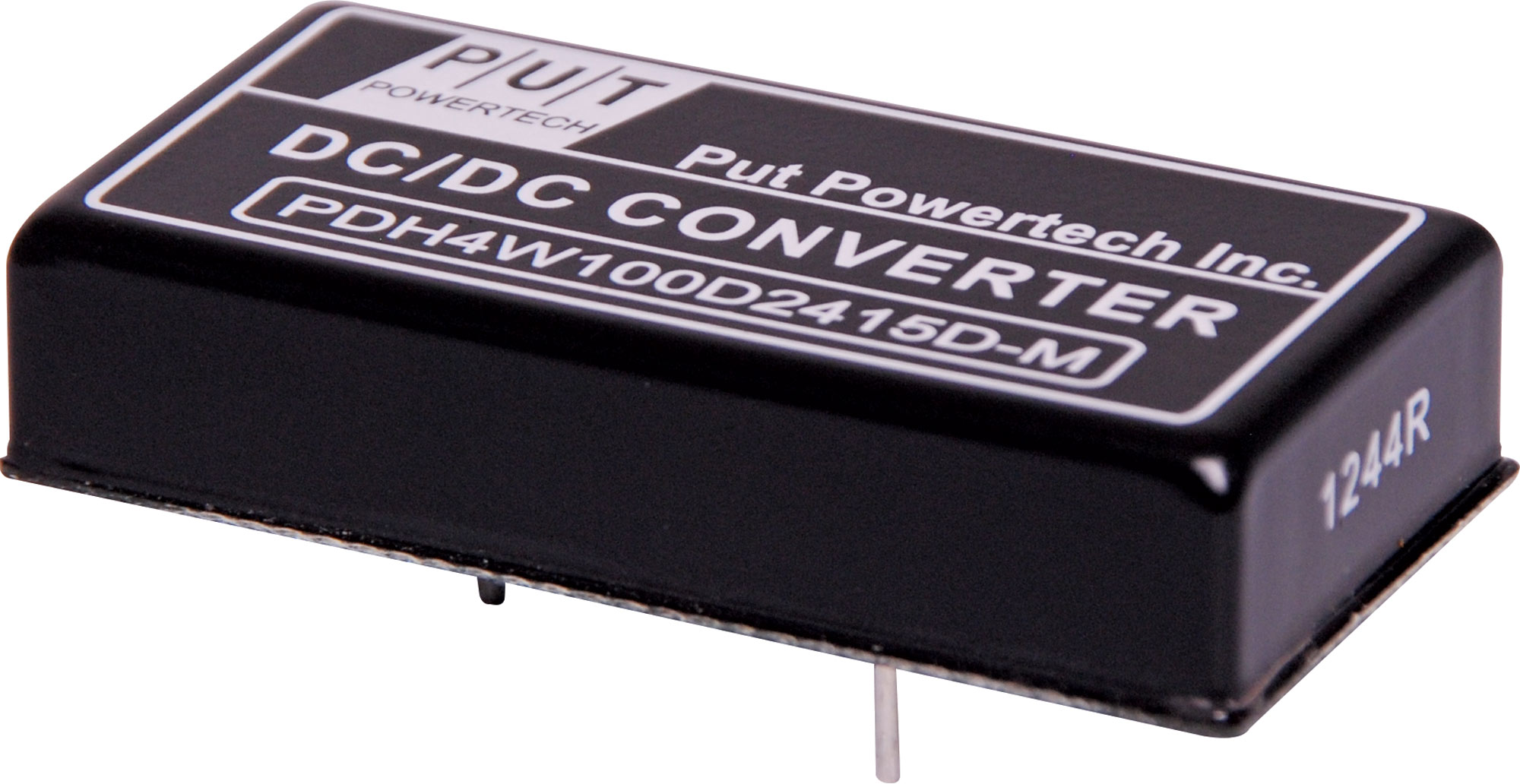

9-36VDC to +/-15VDC Regulated Converter

Be the first to review this product
Industry standard pinout. Wide operating voltage range. Low ripple & noise. Auto short circuit protection. Low operating temperature. 9-36VDC to +/-15VDC
SKU: M7886
$60.68
Per ea
Quantity Price
ea $60.68
2+ $57.23
4+ $54.50

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Industry standard pinout. Wide operating voltage range. Low ripple & noise. Auto short circuit protection. Low operating temperature.

9-36VDC to +/-15VDC

Specifications:

Input voltage: 9-36V DC

  • Output voltage: +/-15V DC
  • Output current: 333mA
  • Output regulation: ±0.2%
  • Ripple & noise: <100mV p-p
  • I/O isolation voltage: 1000V DC
  • I/O resistance: >1GΩ
  • Efficiency: >70%
  • Operating temperature: -25 to 70°C

12 Months

We Offer 12 Months for this product
