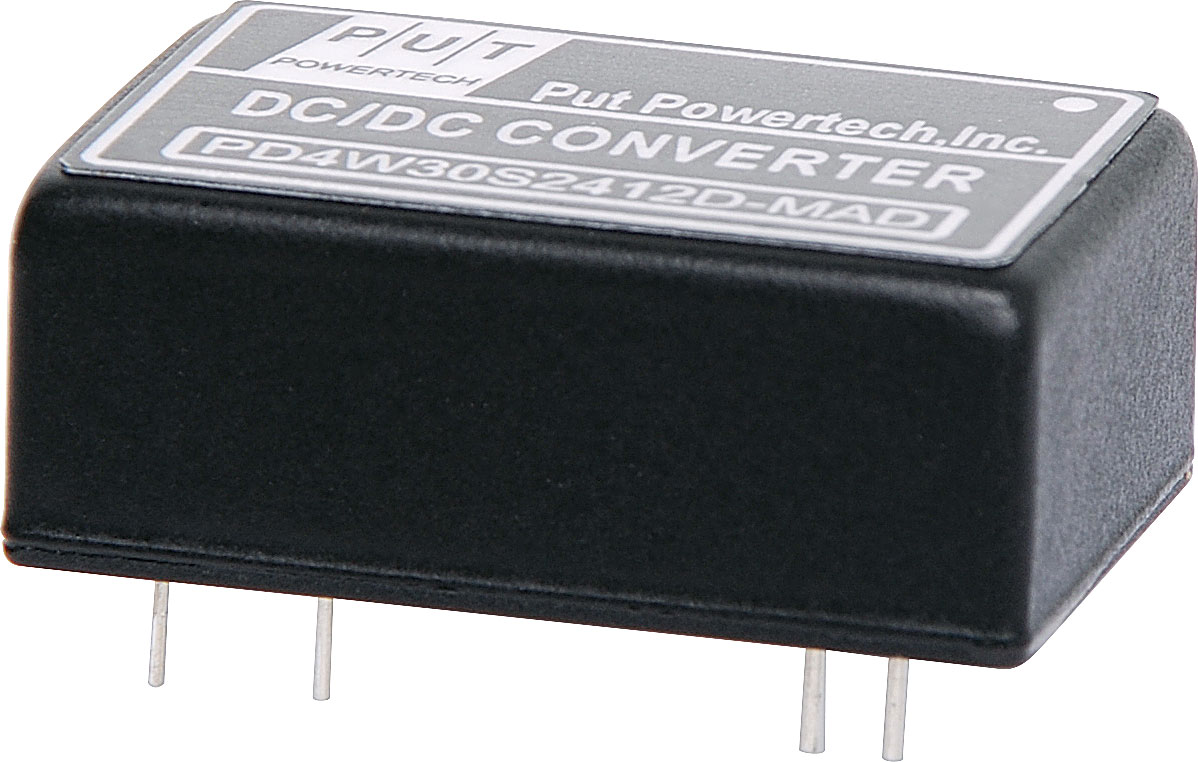

9-36VDC to 12VDC Regulated Converter

Be the first to review this product
Industry standard pinout. Wide operating voltage range. Low ripple & noise. Auto short circuit protection. Low operating temperature. 9-36VDC to 12VDC
SKU: M7875
$39.05
Per ea
Quantity Price
ea $39.05
2+ $35.14
4+ $31.23

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Industry standard pinout. Wide operating voltage range. Low ripple & noise. Auto short circuit protection. Low operating temperature. 9-36V DC to 12V DC.


Dimensions:

Specifications

Input voltage: DC 9-36V

  • Output voltage: DC 12V
  • Output current: 250mA
  • Output regulation: ±0.2%
  • Ripple & noise: 100mV p-p
  • I/O isolation voltage: 1000V DC
  • I/O resistance: >1GΩ
  • Isolation capacitance: <80pF
  • Efficiency: >70%
  • Operating temperature: -25 to 70°C

12 Months

We Offer 12 Months for this product
