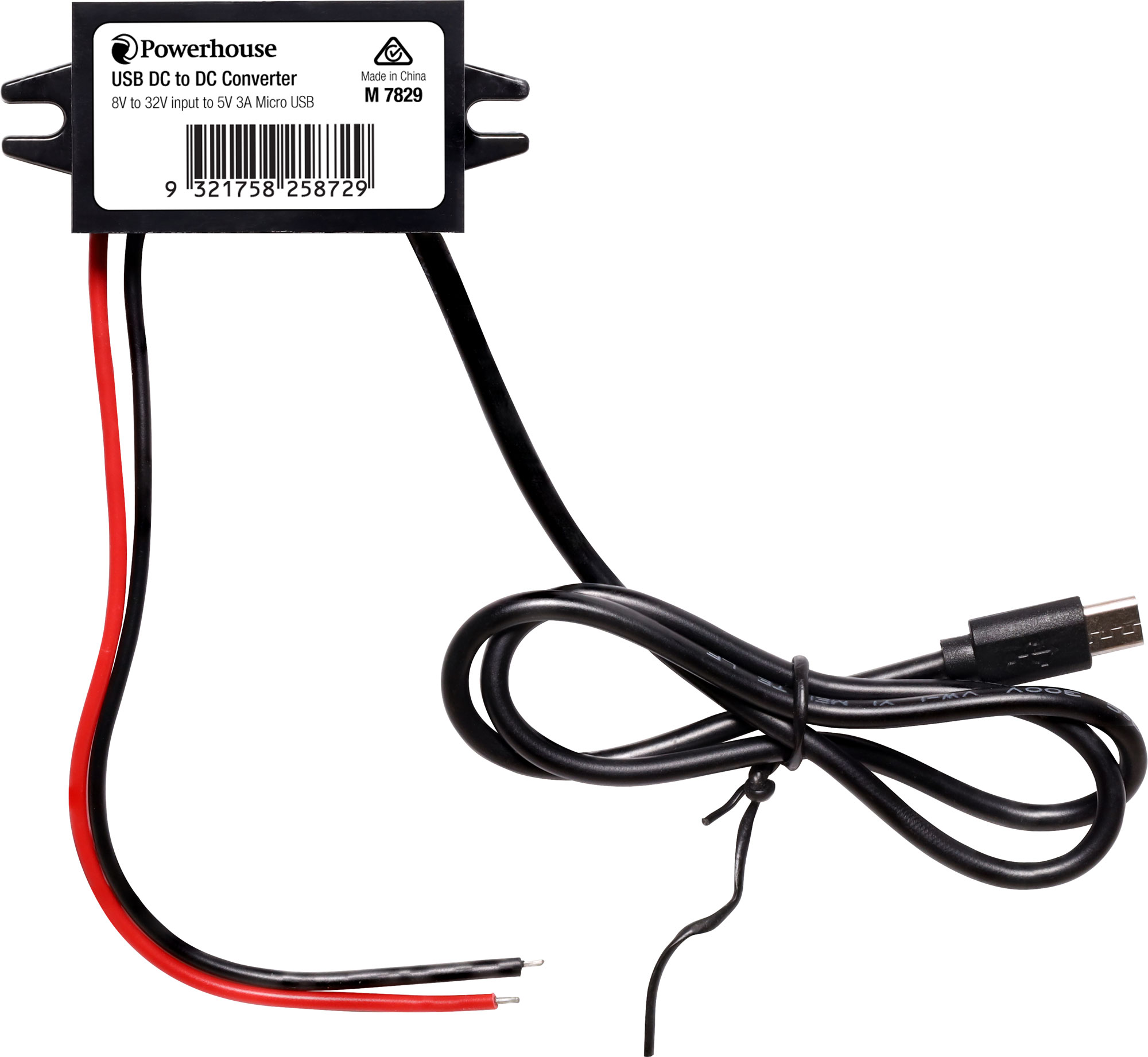

8-32V to 5V 3A Micro USB DC-DC Converter

Manufacturer: Powerhouse
SKU: M7829
This handy DC-DC converter accepts a 8-32V DC input voltage and converts it to a 5V 3A micro USB output for charging a USB device. These can be easily integrated into vehicle wiring, remote power systems and more.
$16.32

All Prices Shown are (ex GST)
Bulk Pricing
ea $16.32
2+ $14.77
4+ $13.18
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

This handy DC-DC converter accepts a 8-32V DC input voltage and converts it to a 5V 3A micro USB output for charging a USB device. These can be easily integrated into vehicle wiring, remote power systems and more. The module is an encapsulated design offering IP67 protection allowing it to be mounted virtually anywhere to power and charge your connected devices. Offers a range of in-built protection features such as overheating, overcurrent and short circuit protections. Ultra compact module measuring just 46 x 27 x 14mm.

Features:

  • Smart protection features
  • Anti-shock and moisture/dust resistant design
  • Surface mounting flanges
  • High efficients up to 93%
  • Ideal for remote power systems or providing fixed charging points within vehicles for devices.

Specifications:

Input voltage: 8V - 32V DC

  • Output voltage: 5V
  • Output current: 3A max
  • Output power: 15W max
  • Output connection: Micro USB (male)
  • Efficiency: >90%
  • Voltage regulation: ±1%
  • Ripple & noise: 300mV (full load)
  • No load loss: 22mA @ 12V input
  • Working temperature: -40°C to +80°C
  • IP rating: IP67
  • Size: 46 x 27 x 14mm
  • Weight: 40g

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
