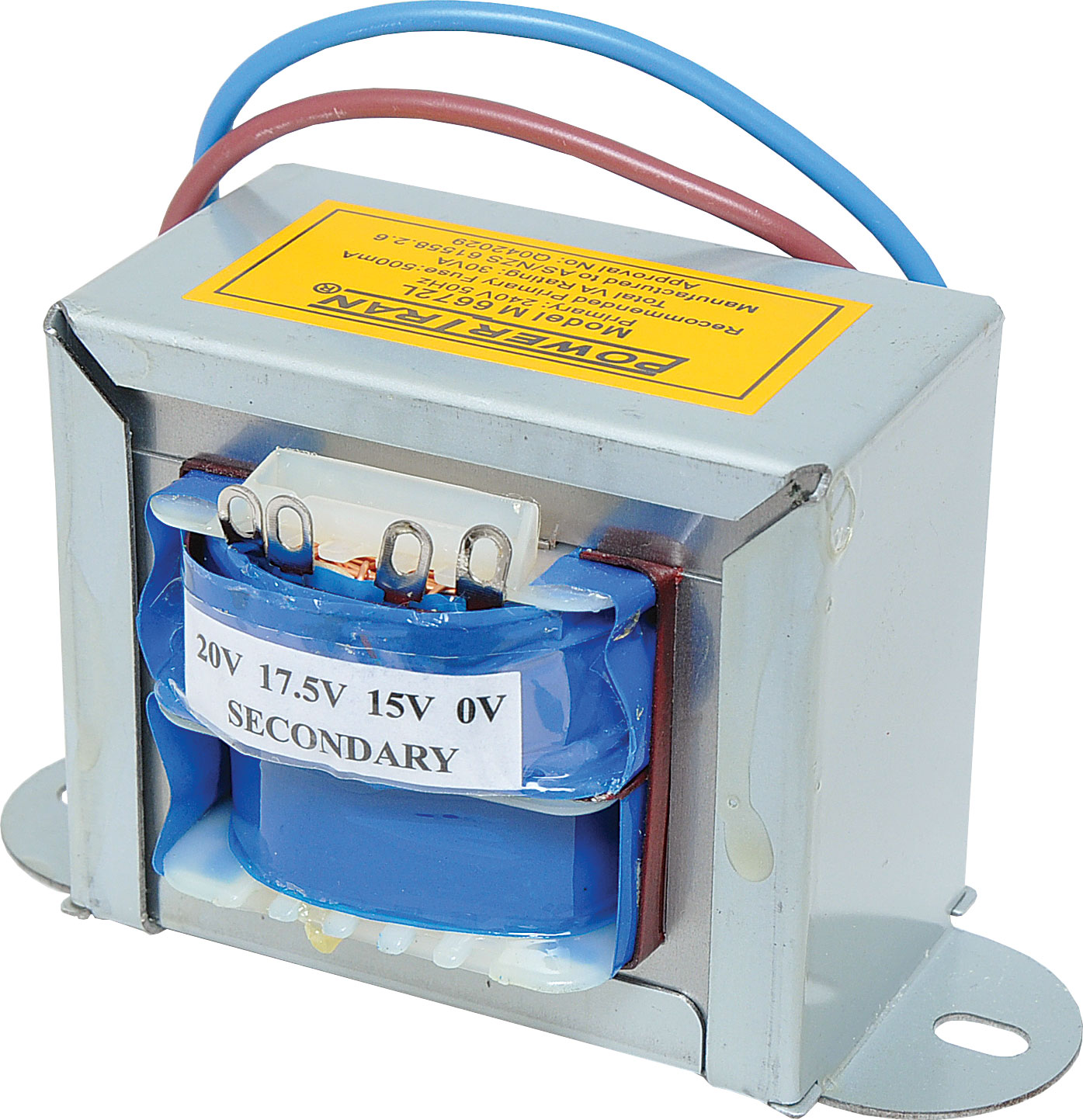

240V 15-30V 1A Transformer

Manufacturer: Powertran
Be the first to review this product
Primary fitted with 200mm fly leads. Secondary taps have solder tags.
SKU: M6672L
$28.14
Per ea
Quantity Price
ea $28.14
4+ $25.41
10+ $22.68

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Primary fitted with 200mm fly leads. Secondary taps have solder tags. Manufactured to conform to AS/NZS 61558.2.6.

Note: Must be used with a standard 500mA external fuse.



Specifications

Primary voltage: 240V AC

  • Total VA rating: 30VA
  • Insulation: Class E (120°C)
  • Magnetising current: <80mA
  • Temperature rise: <65°C
  • Regulation: ˜8%
  • Recommended primary AC fuse: 500mA
  • Weight: ˜1kg
  • Primary connection: 200mm fly leads
  • Secondary connection: Solder tags
  • AS/NZS 61558.2.6 approval: Q042029
  • AS3108 approval: CS/814/Q

12 Months

We Offer 12 Months for this product
