7.5v + 7.5V PCB 30VA Toroidal Transformer

Manufacturer: Powertran
SKU: M4615
Toroidal transformers provide a higher output compared to traditional E-I transformers of a similar physical size. They have substantially reduced radiated hum and electrical noise, generate less heat and have much better regulation making them ideal for
$49.95

All Prices Shown are (ex GST)
Bulk Pricing
ea $49.95
4+ $45.00
10+ $39.95
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

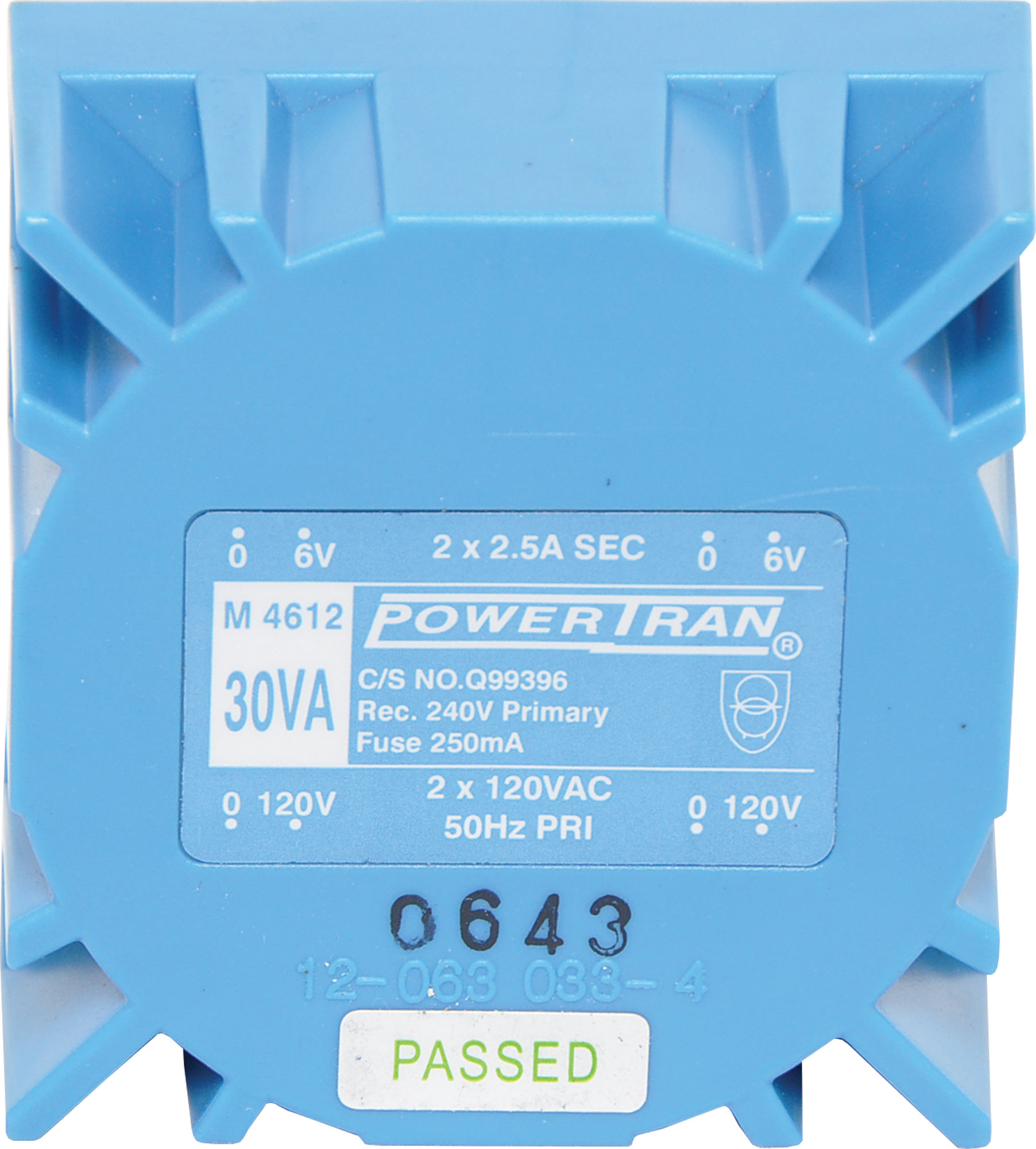

Toroidal transformers provide a higher output compared to traditional E-I transformers of a similar physical size. They have substantially reduced radiated hum and electrical noise, generate less heat and have much better regulation making them ideal for high performance, low noise circuits.

The transformer is “potted” in an epoxy compound within a plastic housing. Configured with 2 x 120V primaries and 2 identical secondaries which can be wired in either series or parallel. Being PCB mount reduces assembly time as the transformer simply solders to the PCB. For extra stability and mechanical reliability the transformer can be secured to the PCB with a self tapping screw.

Specifications:

Primary voltage: 2 x 120V ac

  • Secondary Voltage: 7.5 + 7.5
  • Secondary Current: 4A Parallel, 2A Series
  • Total VA rating: 30VA
  • Insulation: Class A (105°C)
  • Magnetising current: <30mA
  • Temperature rise: <65°C
  • External ac fuse: 250mA
  • Regulation: ˜16%
  • Weight: ˜450g
  • PCB hole size: 2mm
  • Thermal Fuse: Internal 115°C
  • AS/NZS 61558.2.6 approval: Q99396
