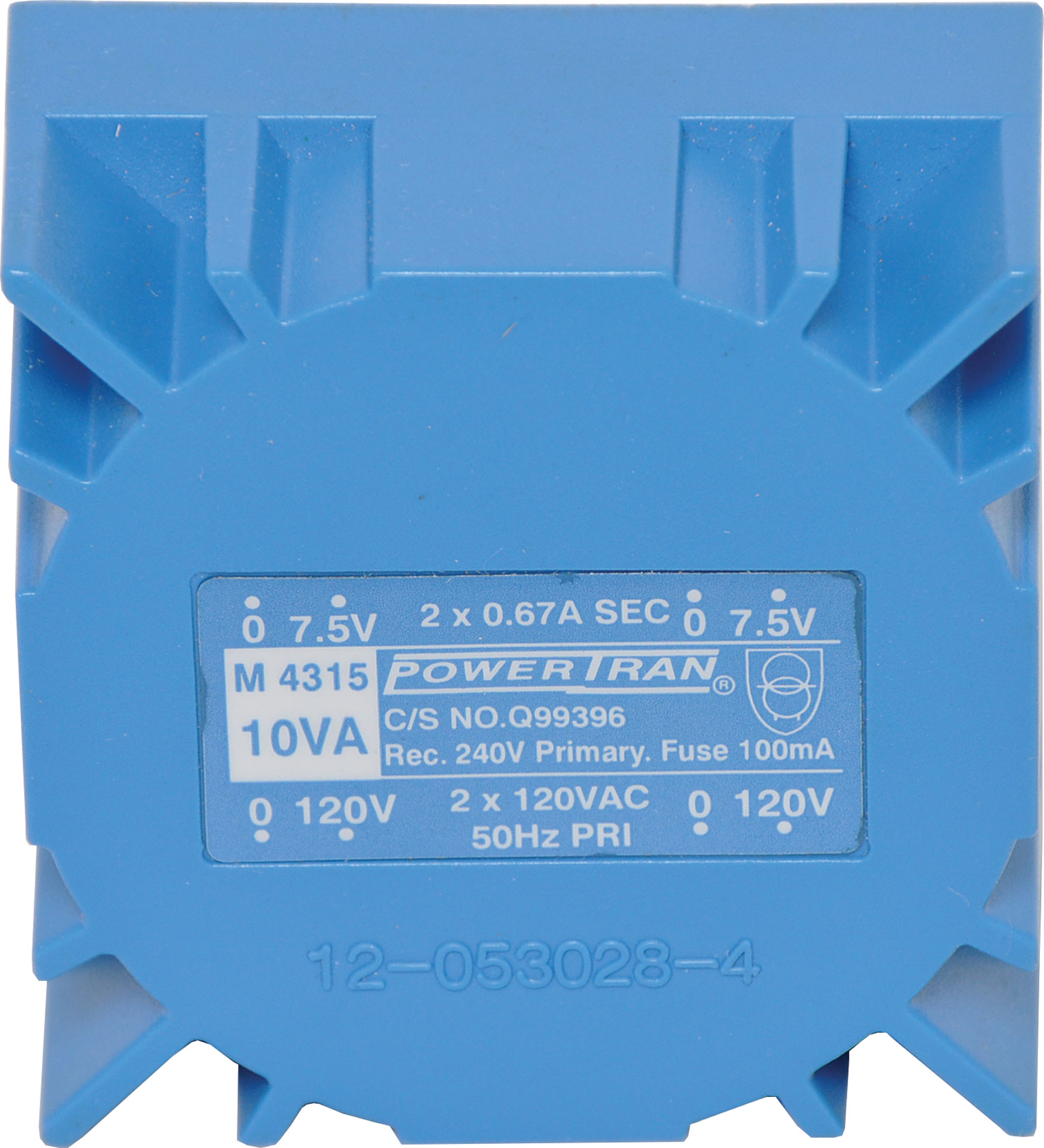

7.5V + 7.5V PCB 10VA Toroidal Transformer

Manufacturer: Powertran
SKU: M4315
Toroidal transformers provide a higher output compared to traditional E-I transformers of a similar physical size. They have substantially reduced radiated hum and electrical noise, generate less heat and have much better regulation making them ideal for
$11.77

All Prices Shown are (ex GST)
Bulk Pricing
ea $11.77
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

Toroidal transformers provide a higher output compared to traditional E-I transformers of a similar physical size. They have substantially reduced radiated hum and electrical noise, generate less heat and have much better regulation making them ideal for high performance, low noise circuits.

The transformer is “potted” in an epoxy compound within a plastic housing. Configured with 2 x 120V primaries and 2 identical secondaries which can be wired in either series or parallel. Being PCB mount reduces assembly time as the transformer simply solders to the PCB. For extra stability and mechanical reliability the transformer can be secured to the PCB with a self tapping screw.

Specifications:

Sec. V: 7.5+7.5

  • Sec. Parallel: 1.3A
  • Sec. Series: 0.66A
  • Primary voltage: 2 x 120V AC
  • Total VA rating: 10VA
  • Insulation: Class A (105°C)
  • Magnetising current: <20mA
  • Temperature rise: <65°C
  • Recommended AC Fuse: 100mA
  • Regulation: ˜20%
  • Weight: ˜210g
  • PCB hole size: 2mm
  • AS/NZS 61558.2.6 approval: Q99396

Note: Must be used with a standard 100mA external AC fuse

Warranty & Returns

12 Months

We Offer 12 Months for this product
