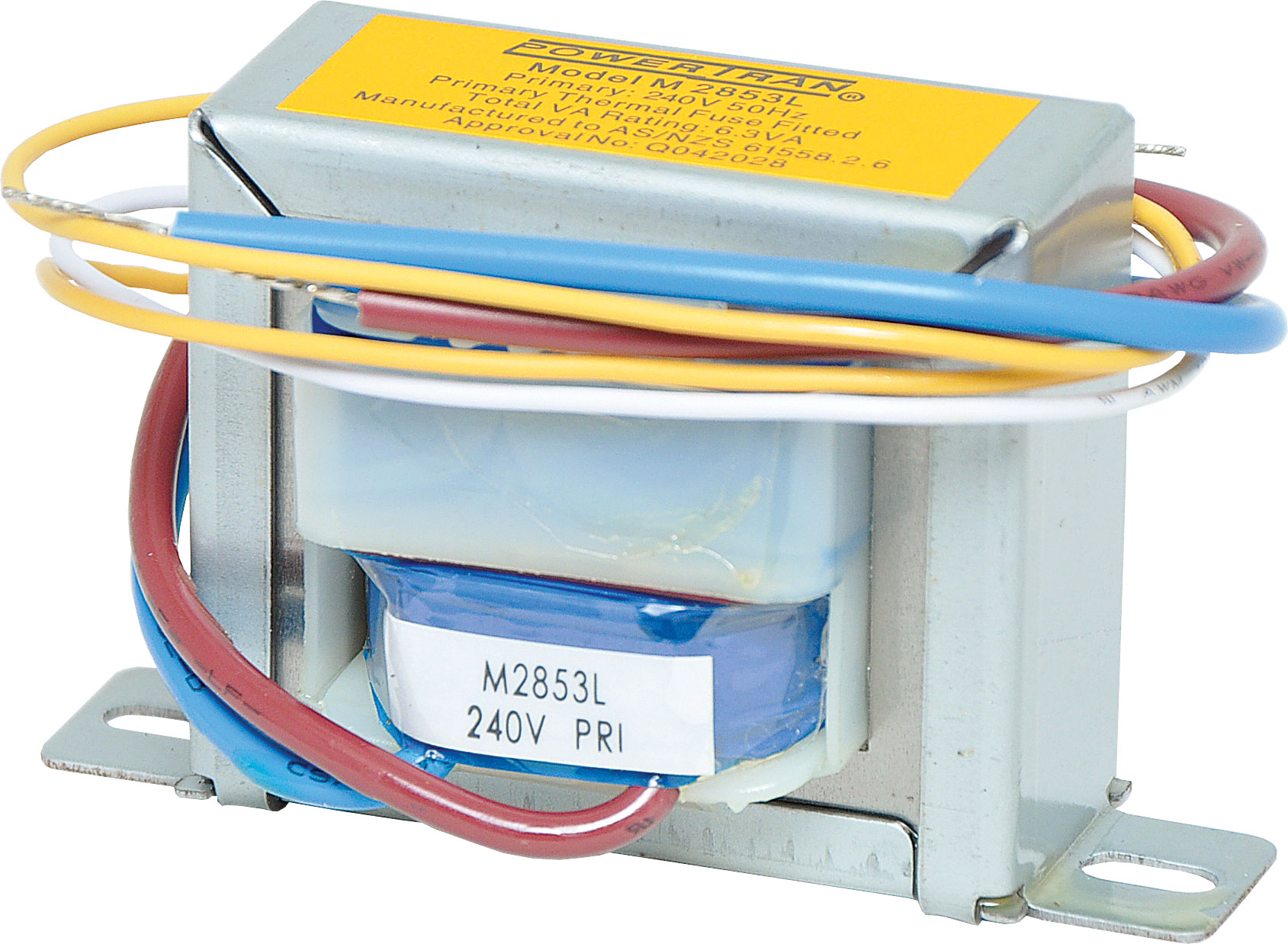

12.6V / 240V 500mA Centre Tapped EI Core Transformer

Manufacturer: Powertran
Be the first to review this product
Primary and secondary fitted with 200mm fly leads.
SKU: M2853L
$12.27
Per ea
Quantity Price
ea $12.27
4+ $11.05
10+ $9.95

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Primary and secondary fitted with 200mm fly leads. Manufactured to conform to AS/NZS 61558.2.6.



Specifications

Primary voltage: 240V AC

  • Total VA rating: 6.3VA
  • Insulation: Class E (120°C)
  • Magnetising current: <45mA
  • Temperature rise: <65°C
  • Regulation: ˜13%
  • Recommended AC fuse: 100mA
  • Weight: ˜315g
  • Primary connection: 200mm fly leads
  • Secondary connection: 200mm fly leads
  • AS/NZS 61558.2.6 approval: Q042028
  • AS3108 approval: CS/813/Q

Secondary Voltages Available: Voltage : 6.3V, 12.6V / Current : 300mA

Note: Must be used with a standard 100mA external fuse.

12 Months

We Offer 12 Months for this product
