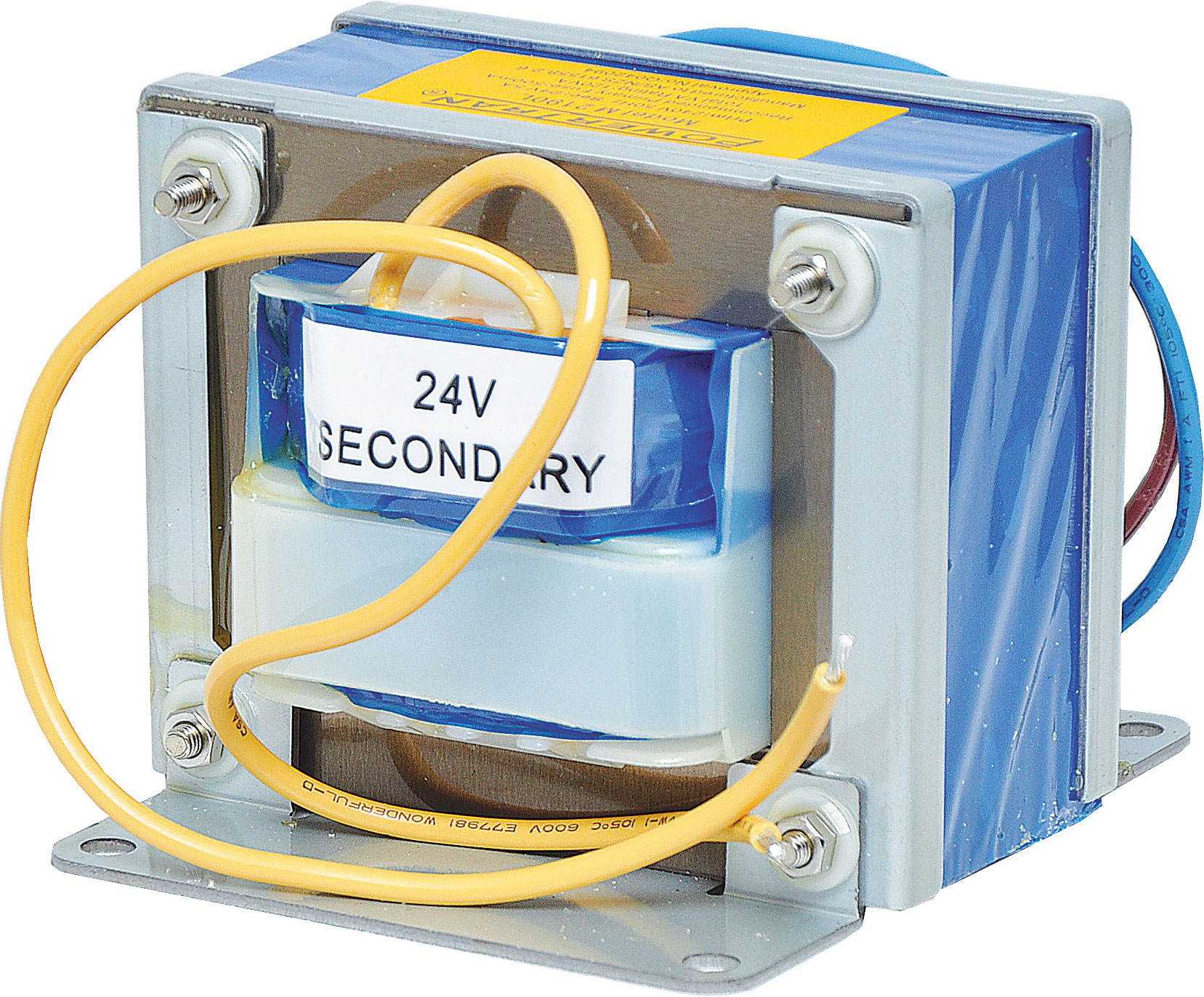

24V / 240V 5A EI Core Transformer

Manufacturer: Powertran
Be the first to review this product
Primary fitted with 200mm fly leads. Secondary taps have solder tags.
SKU: M2190L
$59.05
Per ea
Quantity Price
ea $59.05
4+ $53.18
10+ $47.23

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Primary fitted with 200mm fly leads. Secondary taps have solder tags. Manufactured to conform to AS/NZS 61558.2.6.

Note: Must be used with a standard 500mA external fuse.



Specifications

Primary voltage: 240V AC

  • Total VA rating: 120VA
  • Insulation: Class E (120°C)
  • Magnetising current: <85mA
  • Temperature rise: <65°C
  • Regulation: ˜10%
  • Recommended primary AC fuse: 500mA
  • Weight: ˜2.2kg
  • Primary connection: 200mm fly leads
  • Secondary connection: 200mm fly leads
  • AS/NZS 61558.2.6 approval: Q042094
  • AS3108 approval: CS/990/Q

12 Months

We Offer 12 Months for this product
