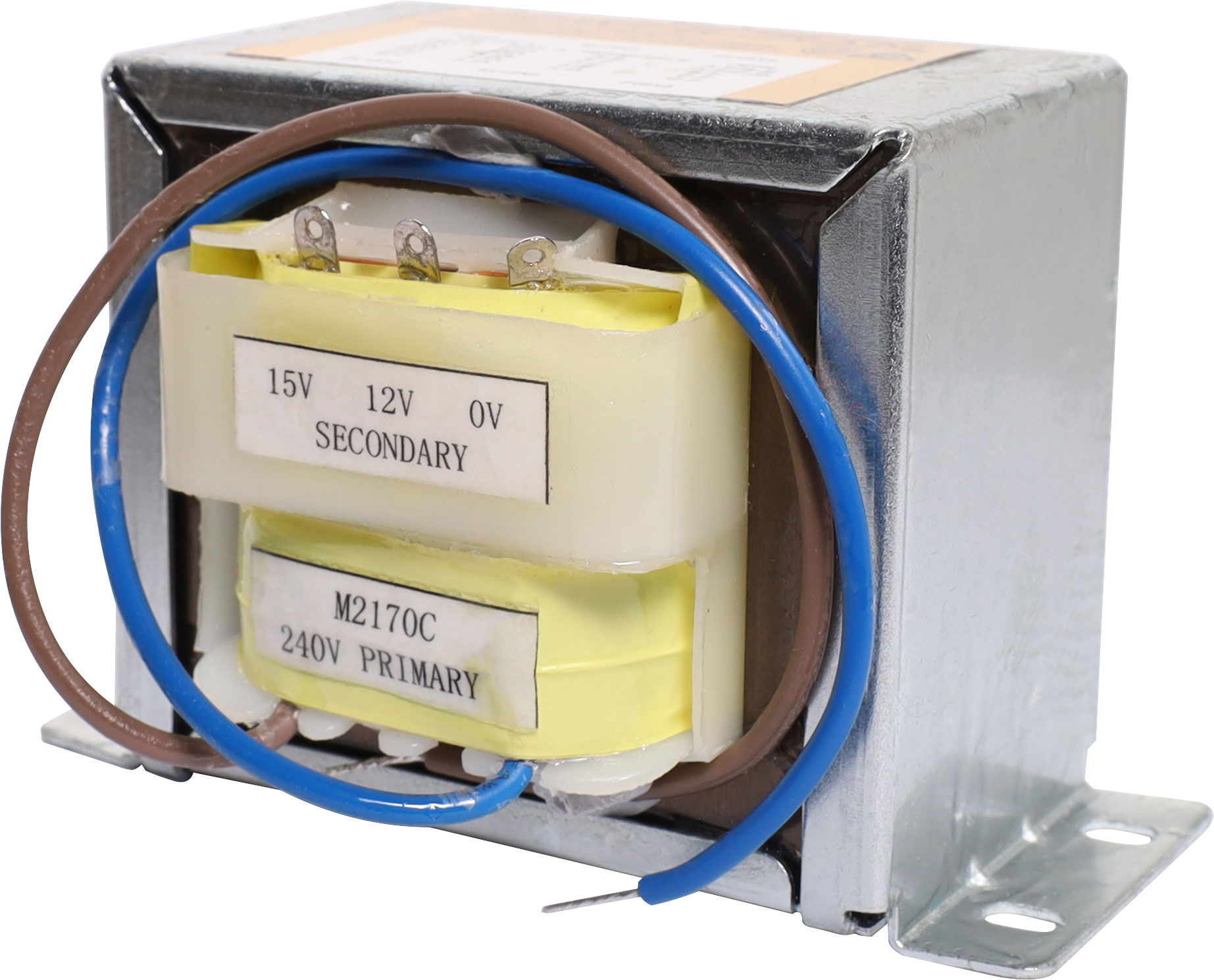

12-30V / 240V 100VA EI Core Transformer

Manufacturer: Powertran
SKU: M2170C
Powertran EI-Core 240V AC mains transformer with 6A dual multi tapped secondary configuration. Two sets of 0V, 12V and 15V secondaries are available at a maximum current of 6A (max current when secondaries connected in parallel) . Primary is fitted with 200mm flyleads. Secondary taps have solder tags. Fully electrical authority approved for AS/NZS
$47.23

All Prices Shown are (ex GST)
Bulk Pricing
ea $47.23
4+ $42.50
10+ $37.77
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

Powertran EI-Core 240V AC mains transformer with 6A dual multi tapped secondary configuration. Two sets of 0V, 12V and 15V secondaries are available at a maximum current of 6A (max current when secondaries connected in parallel). Primary is fitted with 200mm fly leads. Secondary taps have solder tags. Manufactured to conform to AS/NZS 61558.2.6.

Note: Must be used with a standard 500mA external fuse. All currents listed are AC.

Specifications

Primary Voltage: 240V AC

  • Total VA Rating: 100VA
  • Insulation: Class E (120°C)
  • Magnetising Current: <85mA
  • Temperature Rise: <70°C
  • Regulation: ˜14%
  • Recommended primary AC Fuse: 500mA
  • Weight: ˜1.6kg
  • Primary connection: 200mm fly leads
  • Secondary connection: Solder tags
  • AS/NZS 61558.2.6 approval: Q042028
  • AS3108 approval: CS/813/Q

Warranty & Returns

12 Months

We Offer 12 Months for this product
