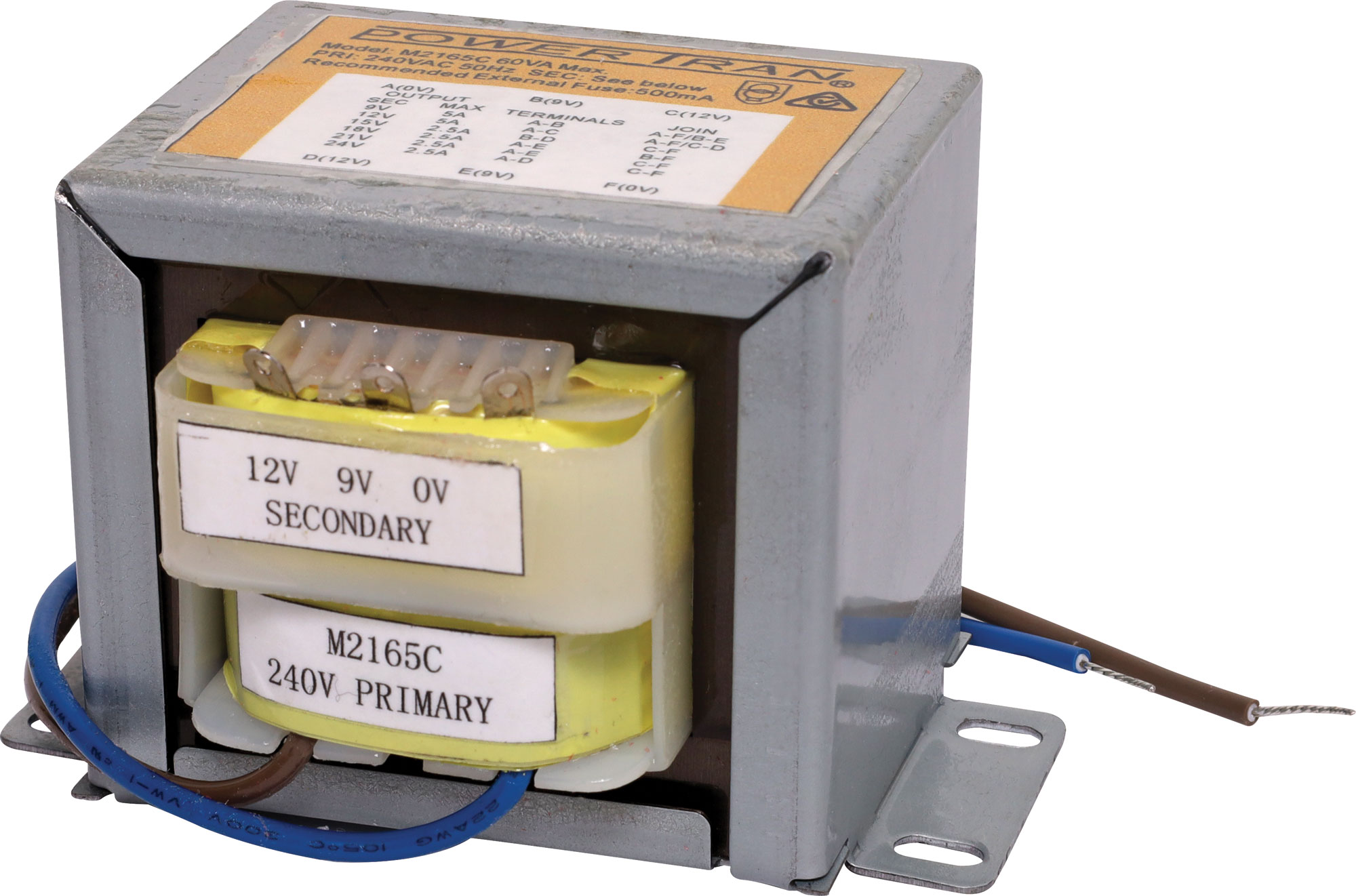

9-24V / 240V 60VA EI Core Transformer

Manufacturer: Powertran
Be the first to review this product
Powertran EI-Core 240V AC mains transformer with 6.6A dual multi tapped secondary configuration. Two sets of 0V, 9V and 12V secondaries are available at a maximum current of 6.6A (max current when 9V secondaries connected in parallel) . Primary is fitted with 200mm flyleads. Secondary taps have solder tags. Fully electrical authority approved for A
SKU: M2165C
$40.91
Per ea
Quantity Price
ea $40.91
4+ $36.36
10+ $32.73

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Powertran EI-Core 240V AC mains transformer with 6.6A dual multi tapped secondary configuration. Two sets of 0V, 9V and 12V secondaries are available at a maximum current of 6.6A (max current when 9V secondaries connected in parallel) . Primary is fitted with 200mm fly leads. Secondary taps have solder tags. Fully electrical authority approved for AS/NZS 61558.2.6.

Note: Must be used with a standard 500mA external fuse. All currents listed are AC.



Specifications

Primary voltage: 240V AC

  • Total VA rating: 60VA
  • Insulation: Class E (120°C)
  • Magnetising current: <85mA
  • Temperature rise: <65°C
  • Regulation: ˜10%
  • Recommended primary AC fuse: 500mA
  • Weight: ˜1.4kg
  • Primary connection: 200mm fly leads
  • Secondary connection: Solder tags

12 Months

We Offer 12 Months for this product
