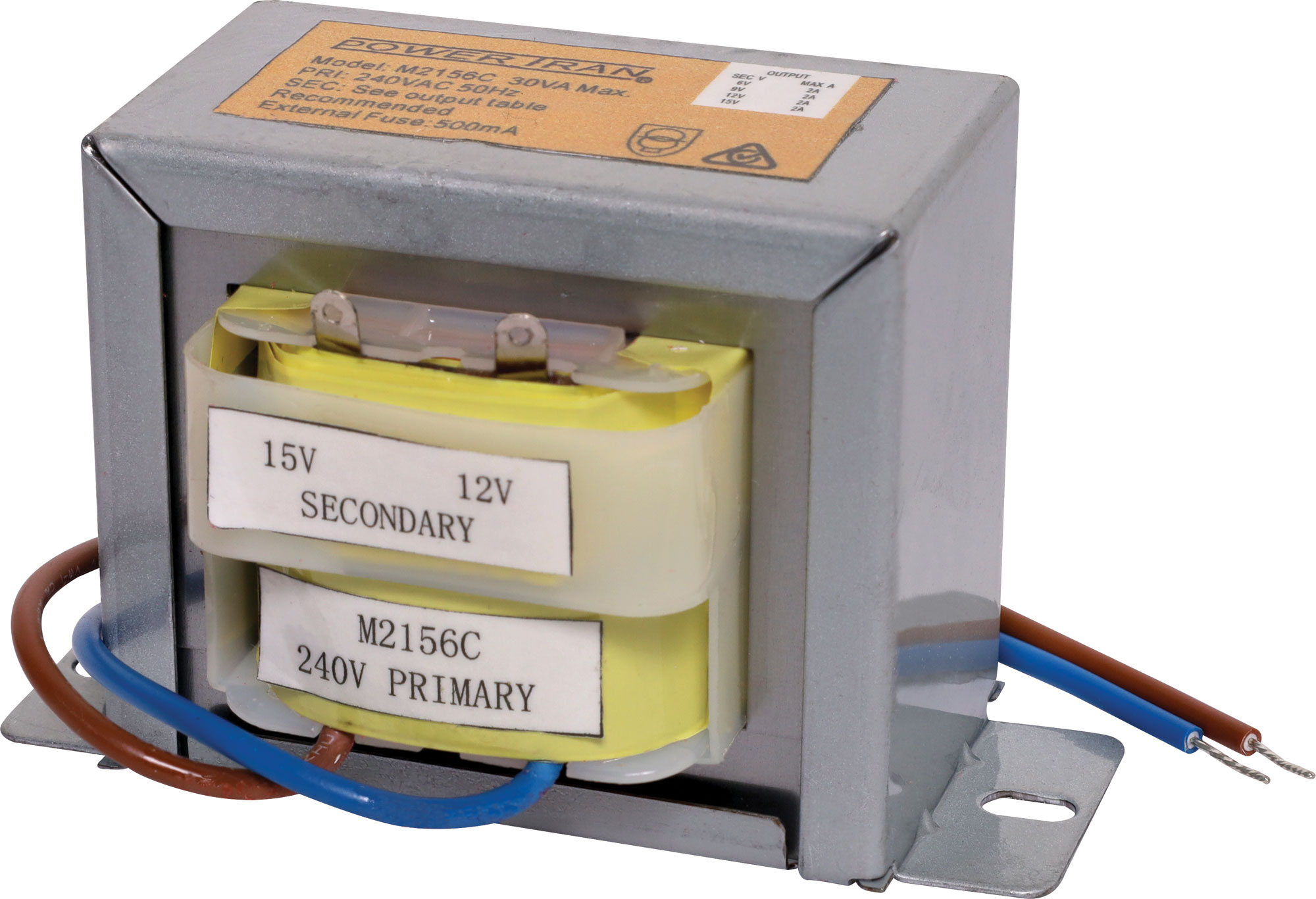

6-15V / 240V 2A EI Core Transformer

Manufacturer: Powertran
Be the first to review this product
Powertran EI-Core 240V AC mains transformer with 2A multi tapped secondary configuration. 0V, 6V, 9V, 12V and 15V secondaries are available at 2A current output. Primary is fitted with 200mm flyleads. Secondary taps have solder tags. Fully electrical authority approved for AS/NZS 61558.2.6.
SKU: M2156C
$31.77
Per ea
Quantity Price
ea $31.77
4+ $28.59
10+ $25.41

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Powertran EI-Core 240V AC mains transformer with 2A multi tapped secondary configuration. 0V, 6V, 9V, 12V and 15V secondaries are available at 2A current output. Primary is fitted with 200mm fly leads. Secondary taps have solder tags. Fully electrical authority approved for AS/NZS 61558.2.6.

Note: Must be used with a standard 500mA external fuse. All currents listed are AC.



Specifications

Primary voltage: 240V AC

  • Total VA rating: 30VA
  • Insulation: Class E (120°C)
  • Magnetising current: <65mA
  • Temperature rise: <60°C
  • Regulation: ˜10%
  • Recommended primary AC fuse: 500mA
  • Weight: ˜1kg
  • Primary connection: 200mm fly leads
  • Secondary connection: Solder tags
