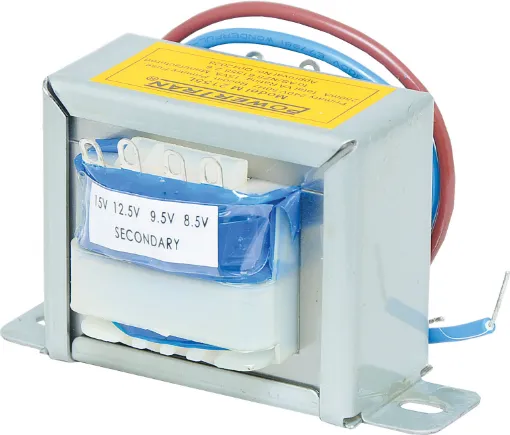

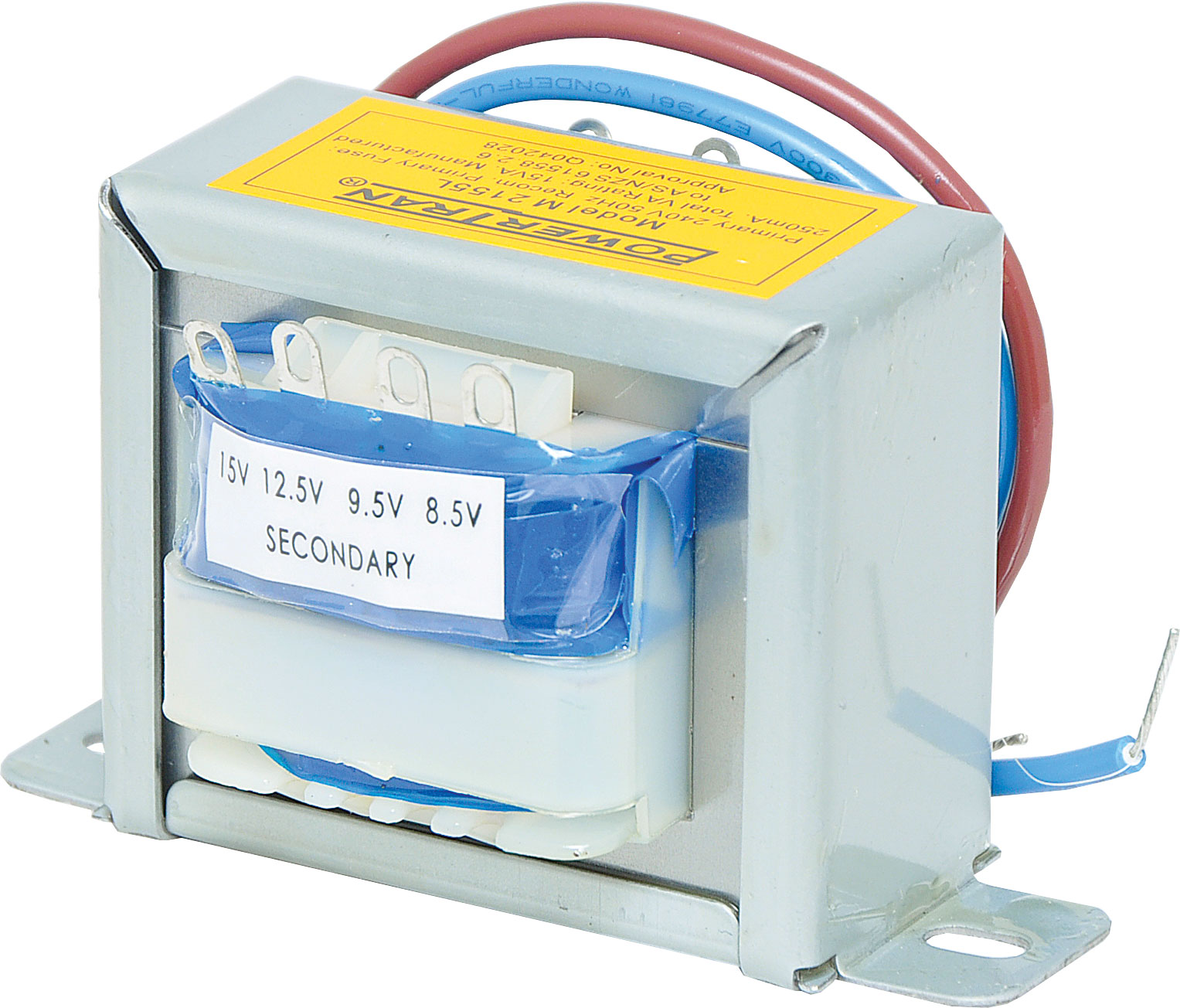

6-15V / 240V 1A EI Core Transformer

Manufacturer: Powertran
Be the first to review this product
Primary fitted with 200mm fly leads. Secondary taps have solder tags.
SKU: M2155L
$18.14
Per ea
Quantity Price
ea $18.14
4+ $16.32
10+ $14.50

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Powertran EI-Core 240V AC mains transformer with 1A multi tapped secondary configuration. 0V, 6.3V, 7.5V, 8.5V, 9.5V, 12.5V and 15V secondaries are available at 1A current output. Primary is fitted with 200mm fly leads. Secondary taps have solder tags. Manufactured to conform to AS/NZS 61558.2.6.

Note: Must be used with a standard 500mA external fuse. All currents listed are AC.



Specifications

Primary voltage: 240V AC

  • Total VA rating: 15VA
  • Insulation: Class E (120°C)
  • Magnetising current: <60mA
  • Temperature rise: <60°C
  • Regulation: ˜10%
  • Recommended primary AC fuse: 250mA
  • Weight: ˜555g
  • Primary connection: 200mm fly leads
  • Secondary connection: Solder tags
  • AS/NZS 61558.2.6 approval: Q042028
  • AS3108 approval: CS/813/Q
