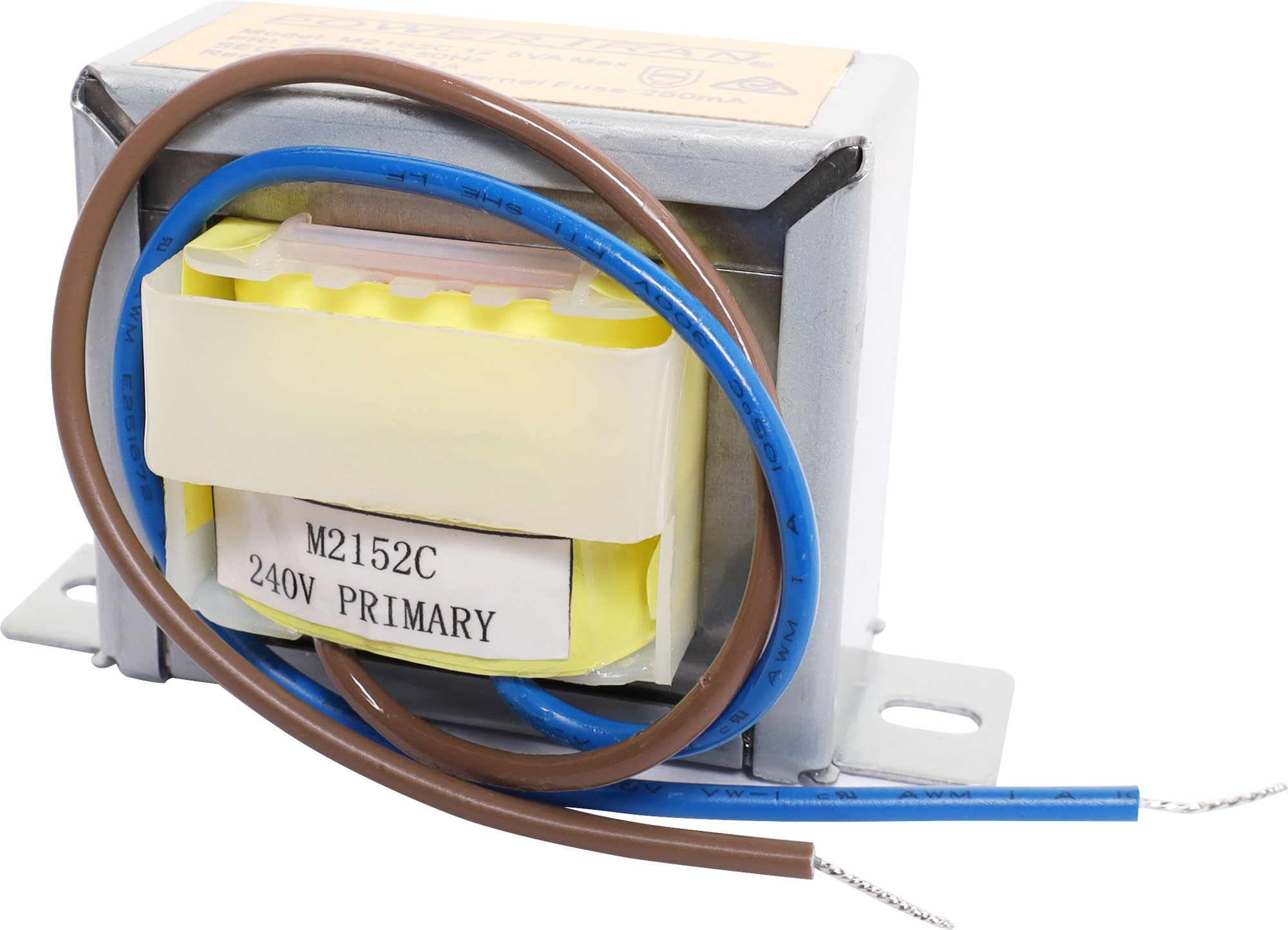

12.5V / 240V 1A EI Core Transformer

Manufacturer: Powertran
Be the first to review this product
Powertran EI-Core 240V AC mains transformer with 1A centre tapped secondary configuration. 6.25V and 12.5V secondary voltages available at 1A current output. Primary and secondaries fitted with 200mm flyleads. Fully electrical authority approved for AS/NZS 61558.2.6.
SKU: M2152C
$20.23
Per ea
Quantity Price
ea $20.23
4+ $18.18
10+ $16.18

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Powertran EI-Core 240V AC mains transformer with a 12.5V secondary voltage and 1A current output. Primary and secondaries fitted with 200mm fly leads. Manufactured to conform to AS/NZS 61558.2.6.

Note: Must be used with a standard 250mA external fuse. All currents listed are AC.



Specifications

Primary voltage: 240V AC

  • Total VA rating: 12.5VA
  • Insulation: Class E (120°C)
  • Magnetising current: <45mA
  • Temperature rise: <65°C
  • Regulation: ˜11%
  • Recommended AC fuse: 250mA
  • Weight: ˜561g
  • Primary connection: 200mm fly leads
  • Secondary connection: 490mm fly leads
  • AS/NZS 61558.2.6 approval: Q042028
  • AS3108 approval: CS/813/Q

Secondary Voltages Available: Voltage :12.5V / Current : 1A
