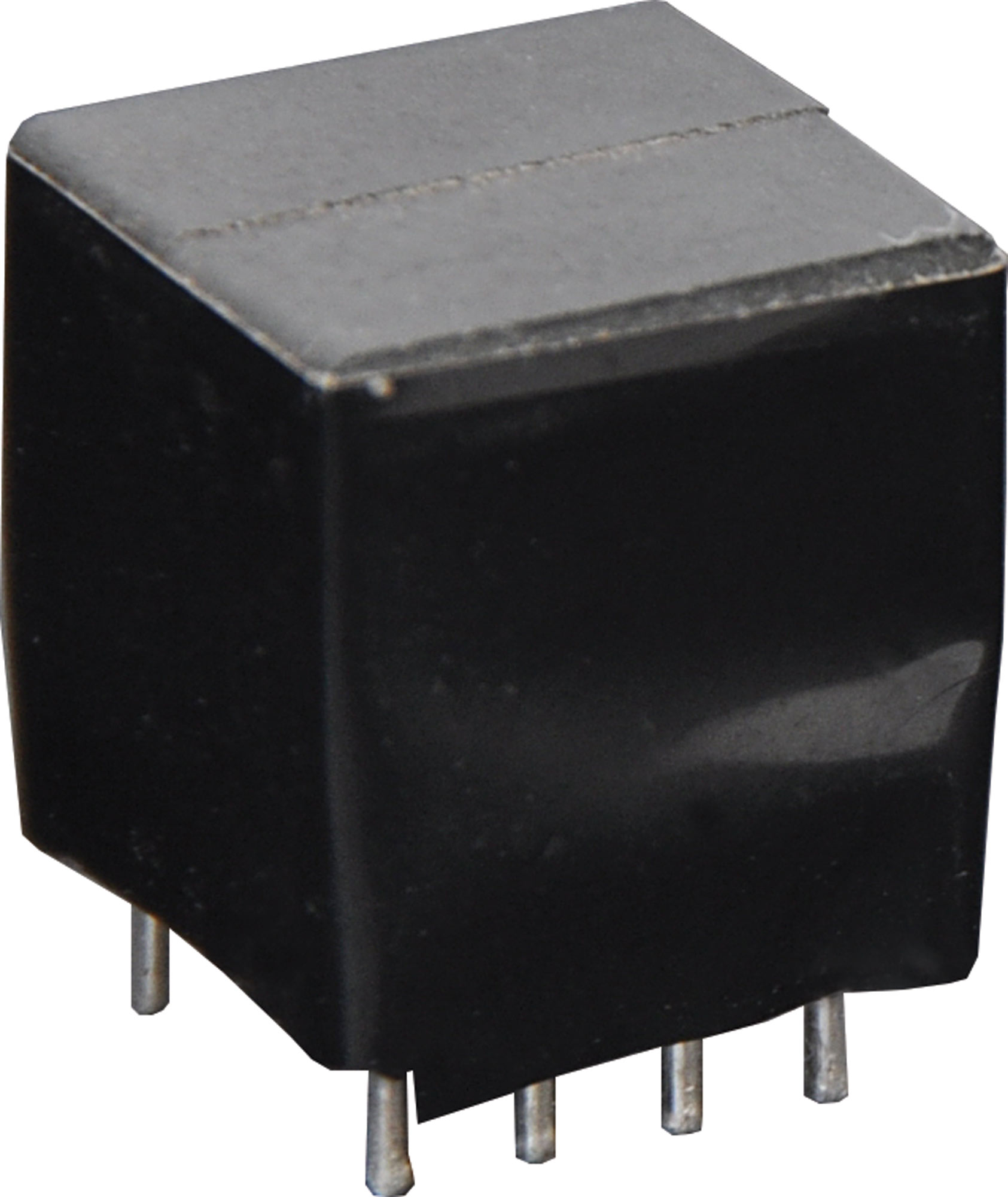

600 Ohm / 600 Ohm Mini Telephone Isolation Transformer

SKU: M1020
Impedance: 600 Ohm line, 600 Ohm equip. Turns Ratio: 1:1 Max Level: 0dBm Insertion Loss: 1.4dB max @ 1kHz Return Loss: >16dB @ 300Hz - 3.5kHz Proof Test: 3.0kV AC 1 minute Dimension: 12L x 11H x 11W Weight: 5 gms PCB hole size: 0.7mm
$19.55

All Prices Shown are (ex GST)
Bulk Pricing
ea $19.55
4+ $17.50
10+ $15.68
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

Impedance: 600 Ohm line, 600 Ohm equip.
Turns Ratio: 1:1
Max Level: 0dBm
Insertion Loss: 1.4dB max @ 1kHz
Return Loss: >16dB @ 300Hz - 3.5kHz
Proof Test: 3.0kV AC 1 minute
Dimension: 12L x 11H x 11W
Weight: 5 gms
PCB hole size: 0.7mm

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
