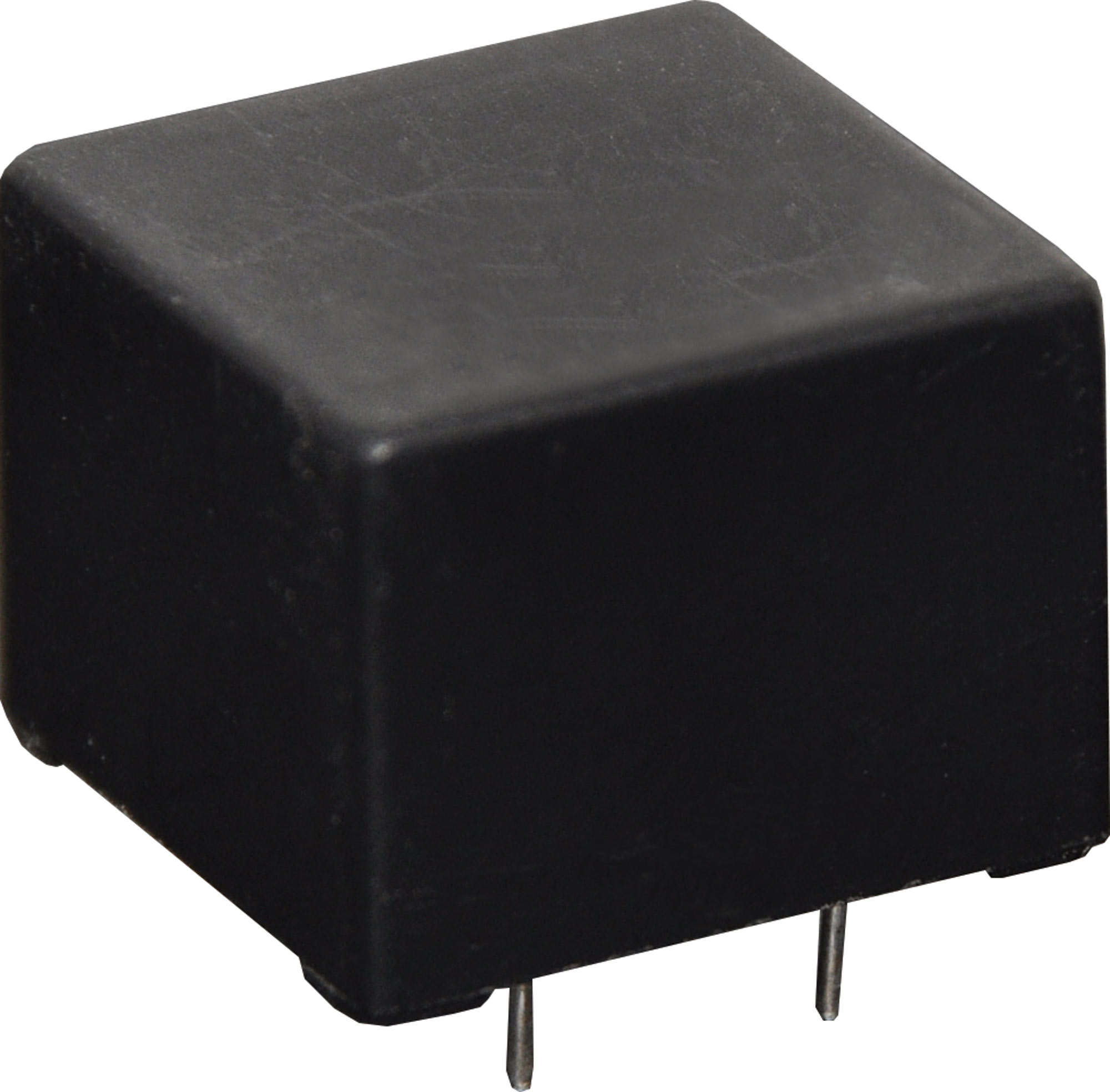

600 Ohm / 600 Ohm Potted Telephone Isolation Transformer

SKU: M1015
Impedance: 600 Ohm line matching Turns Ratio: 1:1 Insertion Loss: 4.7dB max @ 2kHz Frequency Response: 200Hz - 4kHz Return Loss: >15dB @ 200Hz - 4kHz Proof Test: 5.5kV RMS Max Unbalanced DC: 100µA Dimension: 18L x 14H x 18W Weight: 13 gms PCB hole size: 0.7mm
$19.55

All Prices Shown are (ex GST)
Bulk Pricing
ea $19.55
4+ $17.50
10+ $15.68
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

Impedance: 600 Ohm line matching
Turns Ratio: 1:1
Insertion Loss: 4.7dB max @ 2kHz
Frequency Response: 200Hz - 4kHz
Return Loss: >15dB @ 200Hz - 4kHz
Proof Test: 5.5kV RMS
Max Unbalanced DC: 100µA
Dimension: 18L x 14H x 18W
Weight: 13 gms
PCB hole size: 0.7mm

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
