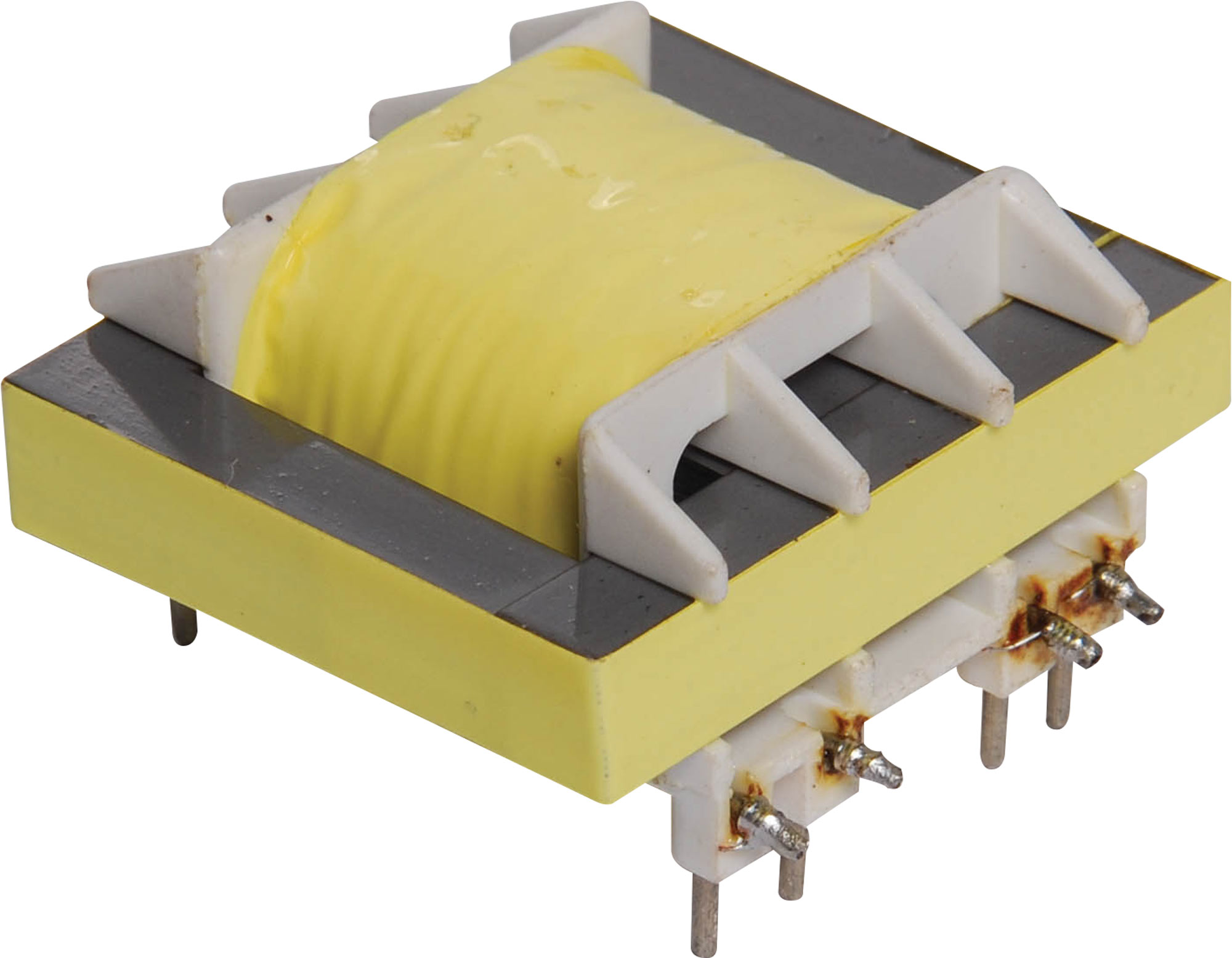

600 Ohm / 600 Ohm Low Prof Telephone Isolation Transformer

SKU: M1010
Impedance: 600 Ohm line, 600 Ohm or 150 Ohm equip. urns Ratio: 1:1 Max Level: +20dBm @ 200Hz Insertion Loss: 1.8dB max @ 0dBm Frequency Response: 300Hz - 3kHz Return Loss: >15dB, 300Hz - 3kHz Max Unbalanced DC: 80mA Proof Test: 3.5kV RMS Dimension: 35L x 17H x 29W Weight: 50 gms PCB hole size: 1.2mm
$12.68

All Prices Shown are (ex GST)
Bulk Pricing
ea $12.68
4+ $11.59
10+ $10.64
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

Impedance: 600 Ohm line, 600 Ohm or 150 Ohm equip.

urns Ratio: 1:1
Max Level: +20dBm @ 200Hz
Insertion Loss: 1.8dB max @ 0dBm
Frequency Response: 300Hz - 3kHz
Return Loss: >15dB, 300Hz - 3kHz
Max Unbalanced DC: 80mA
Proof Test: 3.5kV RMS
Dimension: 35L x 17H x 29W
Weight: 50 gms
PCB hole size: 1.2mm

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
