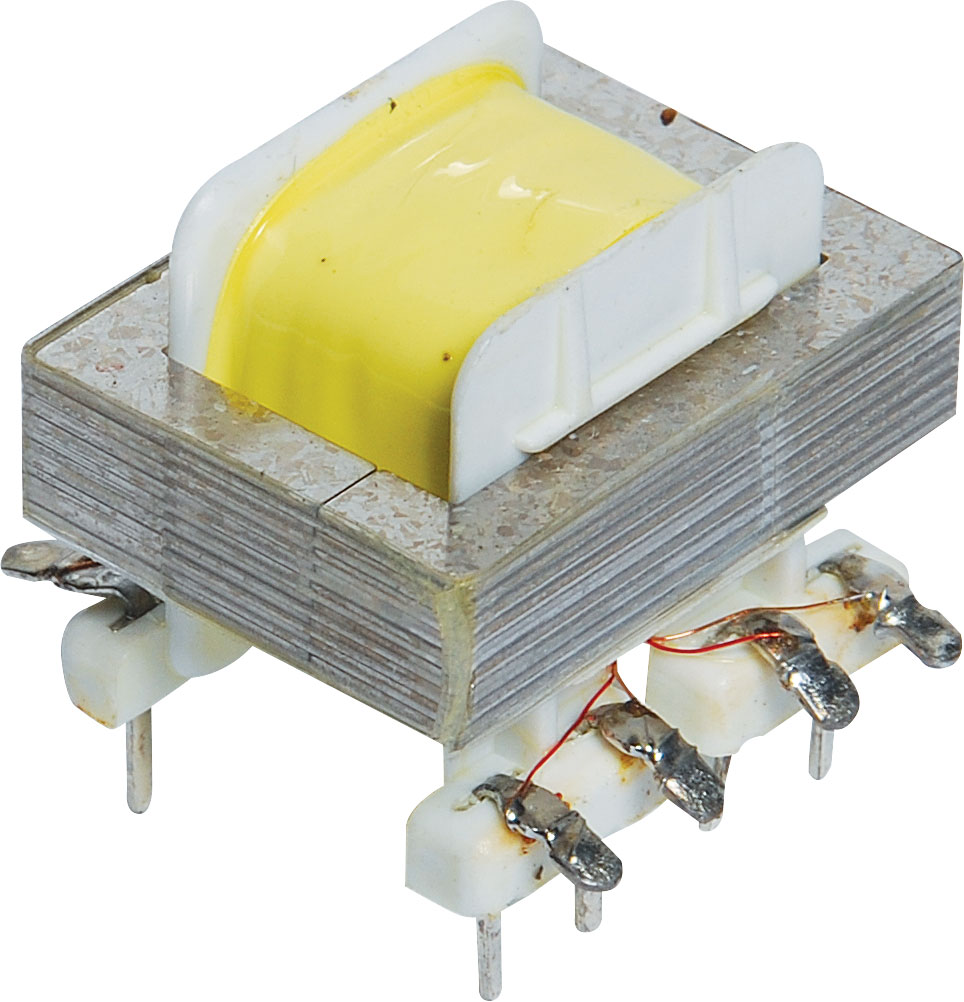

600 Ohm / 600 Ohm Mini Telephone Isolation Transformer

Be the first to review this product
Impedance: 600 Ohm line, 600 Ohm or 150 Ohm equip. Turns Ratio: 1:1 Max Level: +20dBm @ 200Hz Insertion Loss: 1dB max @ 0dBm Frequency Response: 200Hz - 3KHz Return Loss: >15dB, 200Hz - 3kHz Max Unbalanced DC: 5mA Proof Test: 3.5kV RMS Dimension: 26L x 21H x 19W Weight: 25 gms PCB hole size: 1.3mm
SKU: M1005
$14.77
Per ea
QuantityPrice
ea$14.77
4+$13.41
10+$12.27

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Impedance: 600 Ohm line, 600 Ohm or 150 Ohm equip.
Turns Ratio: 1:1
Max Level: +20dBm @ 200Hz
Insertion Loss: 1dB max @ 0dBm
Frequency Response: 200Hz - 3KHz
Return Loss: >15dB, 200Hz - 3kHz
Max Unbalanced DC: 5mA
Proof Test: 3.5kV RMS
Dimension: 26L x 21H x 19W
Weight: 25 gms
PCB hole size: 1.3mm



12 Months

We Offer 12 Months for this product
