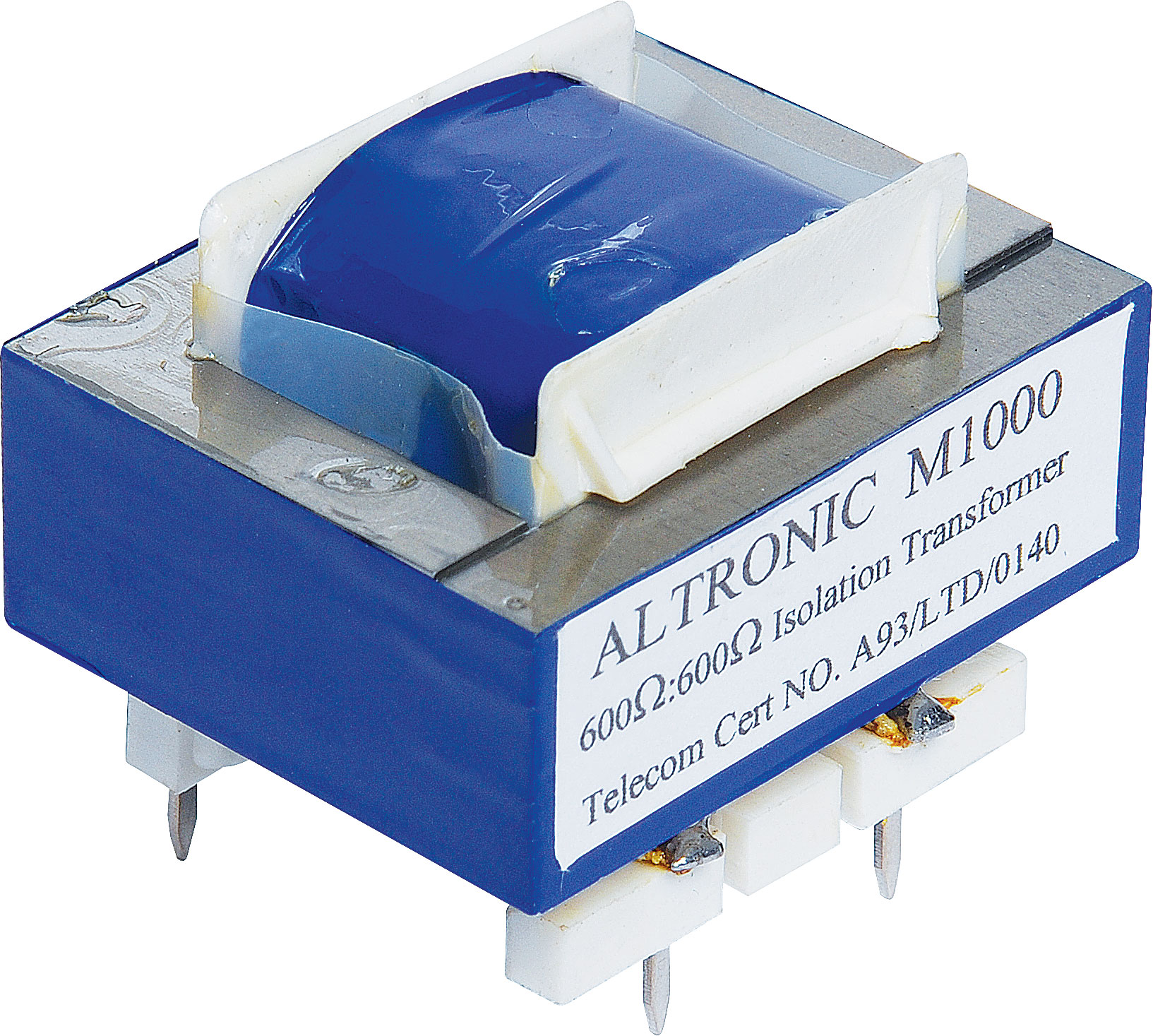

600 Ohm / 600 Ohm Telephone Isolation Transformer

SKU: M1000
Impedance: 600 Ohm line, 600 Ohm equip Turns Ratio: 1:1 Max Level: 0dBm @ 300Hz Insertion Loss: 1dB max @ 0dBm Frequency Response: 300Hz - 10kHz Return Loss: >15dB, 300Hz - 5kHz Max Unbalanced DC: 60mA Proof Test: 3.5kV RMS Dimension: 41L x 30H x 33W Weight: 153 gms PCB hole size: 1.5mm
$12.68

All Prices Shown are (ex GST)
Bulk Pricing
ea $12.68
4+ $11.59
10+ $10.64
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

Impedance: 600 Ohm line, 600 Ohm equip
Turns Ratio: 1:1
Max Level: 0dBm @ 300Hz
Insertion Loss: 1dB max @ 0dBm
Frequency Response: 300Hz - 10kHz
Return Loss: >15dB, 300Hz - 5kHz
Max Unbalanced DC: 60mA
Proof Test: 3.5kV RMS
Dimension: 41L x 30H x 33W
Weight: 153 gms
PCB hole size: 1.5mm



Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
