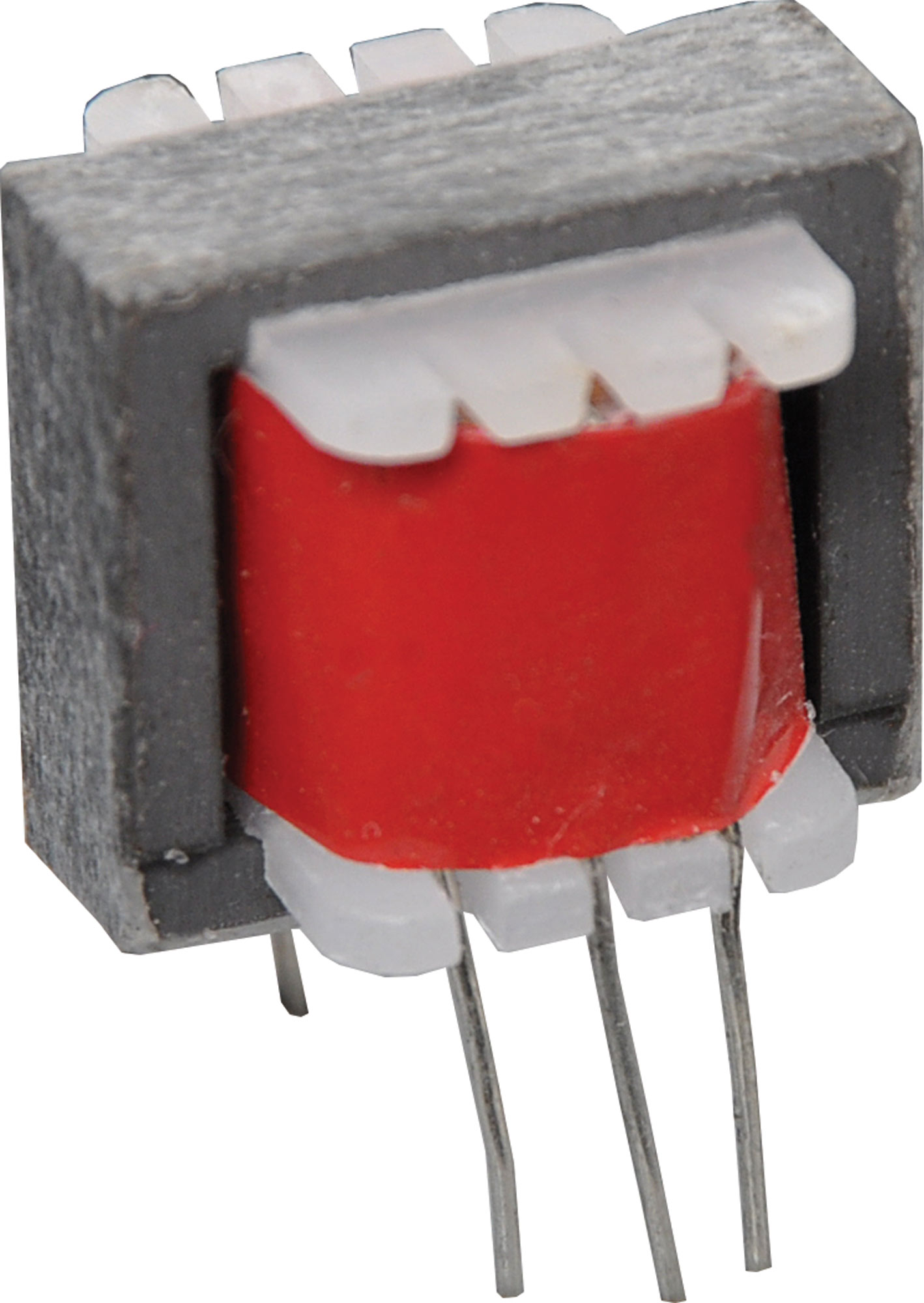

3k Ohm / 3k Ohm Audio Coupling Transformer

SKU: M0222
Impedance: 3k&Omega CT / 3k&Omega Freq. Response: 300Hz-3kHz ±2.5dB Rated Power: 450mW Primary DC Resistance: 220&Omega ±10% Secondary DC Resistance: 270&Omega ±10% Fly Lead Length: 7mm
$5.41

All Prices Shown are (ex GST)
Bulk Pricing
ea $5.41
4+ $4.32
10+ $4.09
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

An audio coupling transformer is a type of transformer designed for use in audio circuits. Its primary function is to transfer an audio signal from one circuit to another while providing electrical isolation between the input and output sides. M 0222 is rated to 3k Ohm / 3k Ohm.



Specifications

Impedance: 3kO CT / 3kO

  • Freq. Response: 300Hz-3kHz ±2.5dB
  • Rated Power: 450mW
  • Primary DC Resistance: 220Ω ±10%
  • Secondary DC Resistance: 270Ω ±10%
  • Fly Lead Length: 7mm

Warranty & Returns

12 Months

We Offer 12 Months for this product
