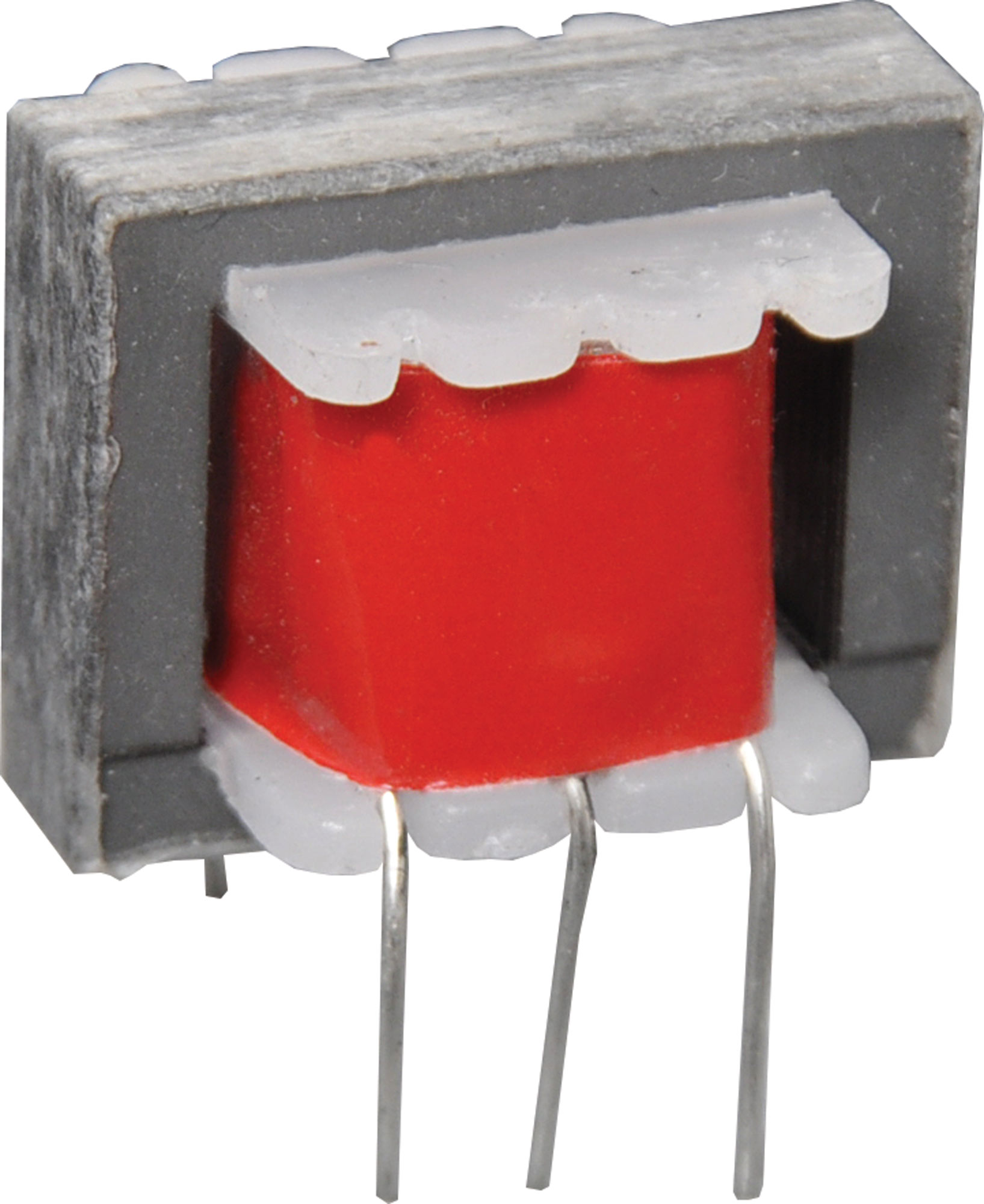

1k Ohm / 8 Ohm Audio Coupling Transformer

SKU: M0216
Impedance: 1k&Omega CT / 8&Omega Freq. Response: 300Hz-3kHz ±2.5dB Rated Power: 450mW Primary DC Resistance: 100&Omega ±10% Secondary DC Resistance: 0.7&Omega ±10% Fly Lead Length: 10mm
$6.82

All Prices Shown are (ex GST)
Bulk Pricing
ea $6.82
4+ $6.14
10+ $5.45
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

Impedance: 1kΩ CT / 8Ω
Freq. Response: 300Hz-3kHz ±2.5dB
Rated Power: 450mW
Primary DC Resistance: 100Ω ±10%
Secondary DC Resistance: 0.7Ω ±10%
Fly Lead Length: 10mm



Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
