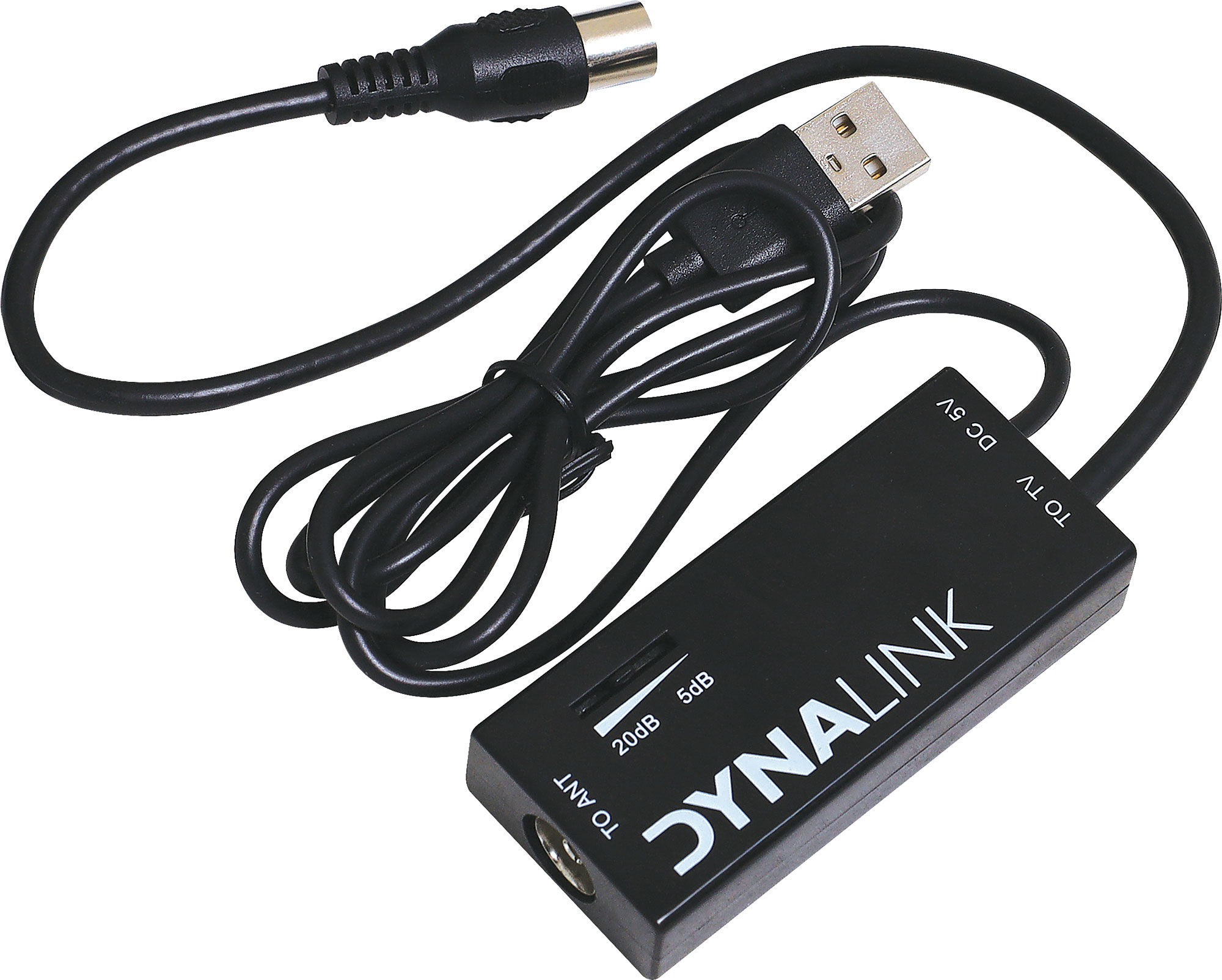

TV Antenna Signal Booster

Manufacturer: Dynalink
Be the first to review this product
Improves TV antenna reception in poor signal areas by boosting gain up to 20dB. Also suitable for DAB digital radio signals.
SKU: L2047
$18.14
Per ea
Quantity Price
ea $18.14

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Improves TV antenna reception in poor signal areas by boosting gain up to 20dB. Also suitable for DAB digital radio signals. Simply connect in-line between your TV antenna socket and the television using PAL 75 Ohm cables or adapters. Gain is adjustable between +5dB and +20dB. Powered by USB at a wall outlet or from a USB output on the rear of your television.

Features

  • Provides up to 20dB gain
  • Suitable for domestic use
  • Easy in-line connection with PAL cables

Specifications

Frequency Range: 88-862MHz

  • Typical Gain: 20db
  • Gain Control: 5-20db
  • Typical Noise Figure: <3.5db
  • Connections : PAL female to PAL male
  • Power Requirements: USB 5V-100mA
  • Impedance: 75 Ohm
  • Length: 30cm

12 Months

We Offer 12 Months for this product
