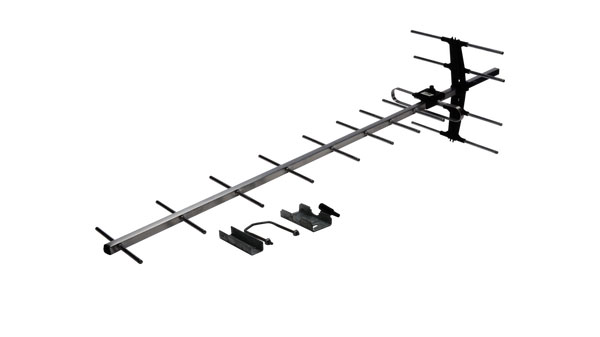

TV Antenna Hills Tru-Max 18

Be the first to review this product
The Hills Antenna Tru-Max 18 4G antenna is a superior phased array antenna used for regional UHF areas.
SKU: L2015A
$100.00
Per ea
QuantityPrice
ea$100.00
2+$92.73
4+$86.32

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

The Hills Antenna TSP2851 4G UHF antenna is the latest in the evolution of our UHF Yagi antennas for Digital television and is designed for prime signal areas, covering channels 28 - 51. It is suitable for both domestic and commercial applications. This antenna has the added benefit of an included 4G filter allowing for the best performing installation and system possible, regardless of location or 4G proximity.

Features

  • Precise antenna specifications within the desired UHF frequency band
  • Boomlock™ manufacturing technology used to secure elements
  • New mounting clamp for easier and safer installation
  • Ultrasonically sealed balun housing for maximum reliability
  • PCB balun for true matching and lowest insertion loss
  • 4G filter included
  • Strong and lightweight aluminium construction
  • Designed and manufactured in Australia

Specifications

Antenna Category: UHF

  • Antenna Type: Yagi
  • Antenna Elements: 13
  • Antenna Band: Band 4/5 (Channels 28 - 51)
  • Antenna Filter: LTE (4G/5G)
  • Antenna Max Gain: UHF 9-14dB
  • Antenna Front to Back Ratio: UHF 12 - 23dB
  • Antenna Materials: Aluminium, UV Stabilised Plastics
  • Antenna Dimensions: 1130mm x 290mm x 240mm (L x W x H)
  • Antenna Colour: Silver
  • Unit Packaging: Display Box
  • Warranty: Lifetime
  • Included Accessories: Rubber Boot (For F Connector), V Block & U Bolt fitted to antenna

10 Years

We Offer 10 Years for this product
