Mega Box Mark II for Arduino

Manufacturer: Inventa
Be the first to review this product
Developed in house by Altronics, this new revised MegaBox is an upgrade of our original K 9670 - adding space for two shields, plus FIVE 2A 5V relay outputs and eight opto isolated outputs. All UNO/Mega pins are broken out to header sockets for easy connection to other breakouts.
SKU: K9670A
$126.36
Per ea
QuantityPrice
ea$126.36
2+$113.64
2+$109.09

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

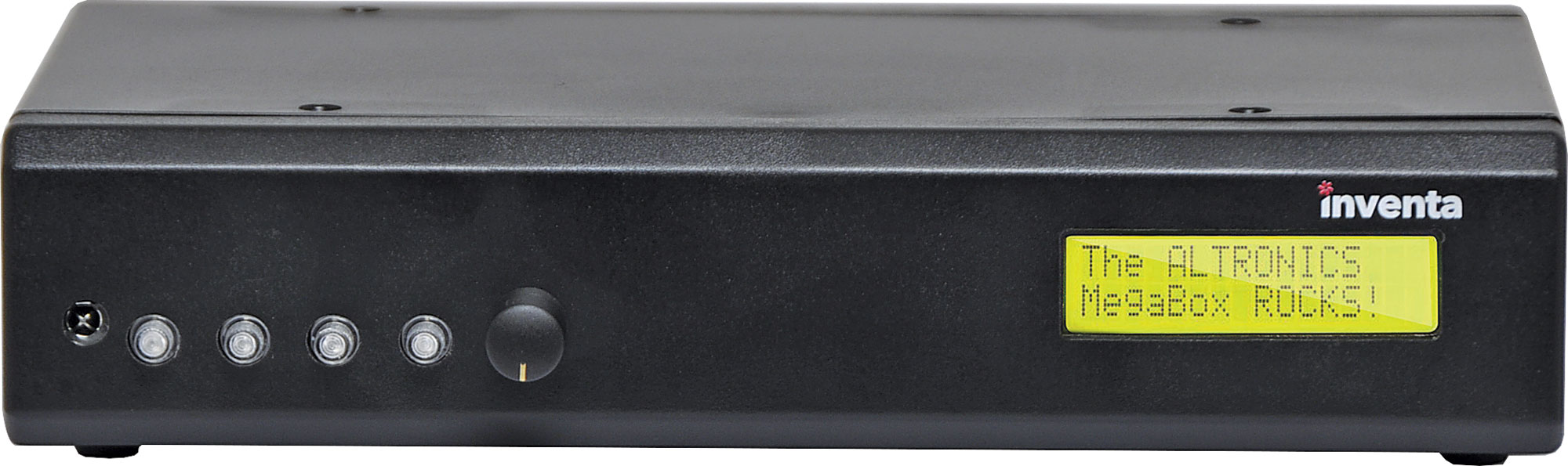

Developed in house by Altronics, this new revised MegaBox is an upgrade of our original K 9670. This revised version accepts an Arduino UNO or Mega to be plugged into it, along with two shields, allowing you to design and build your own products. Includes a 16x2 LCD, four control buttons and a rotary encoder on the front panel plus five 2A 5V relay outputs and 8 opto isolated inputs that are available on the rear. All UNO/Mega pins are broken out to header sockets for easy connection to other breakouts. A small 160 hole prototyping area on the main board is included for connecting to other sensors, parts and circuits.

*Shields for illustration purposes only. Not included.

Features

  • Utilises a half rack 1RU size case
  • 16x2 alphanumeric display
  • Rotary encoder control
  • 4 push buttons
  • Compatible with Arduino UNO/mega boards
  • 5 2A 5V relay outputs
  • 8 opto isolated inputs
  • On board reset and LEDs
  • All main board pins broken out to header sockets

12 Months

We Offer 12 Months for this product
