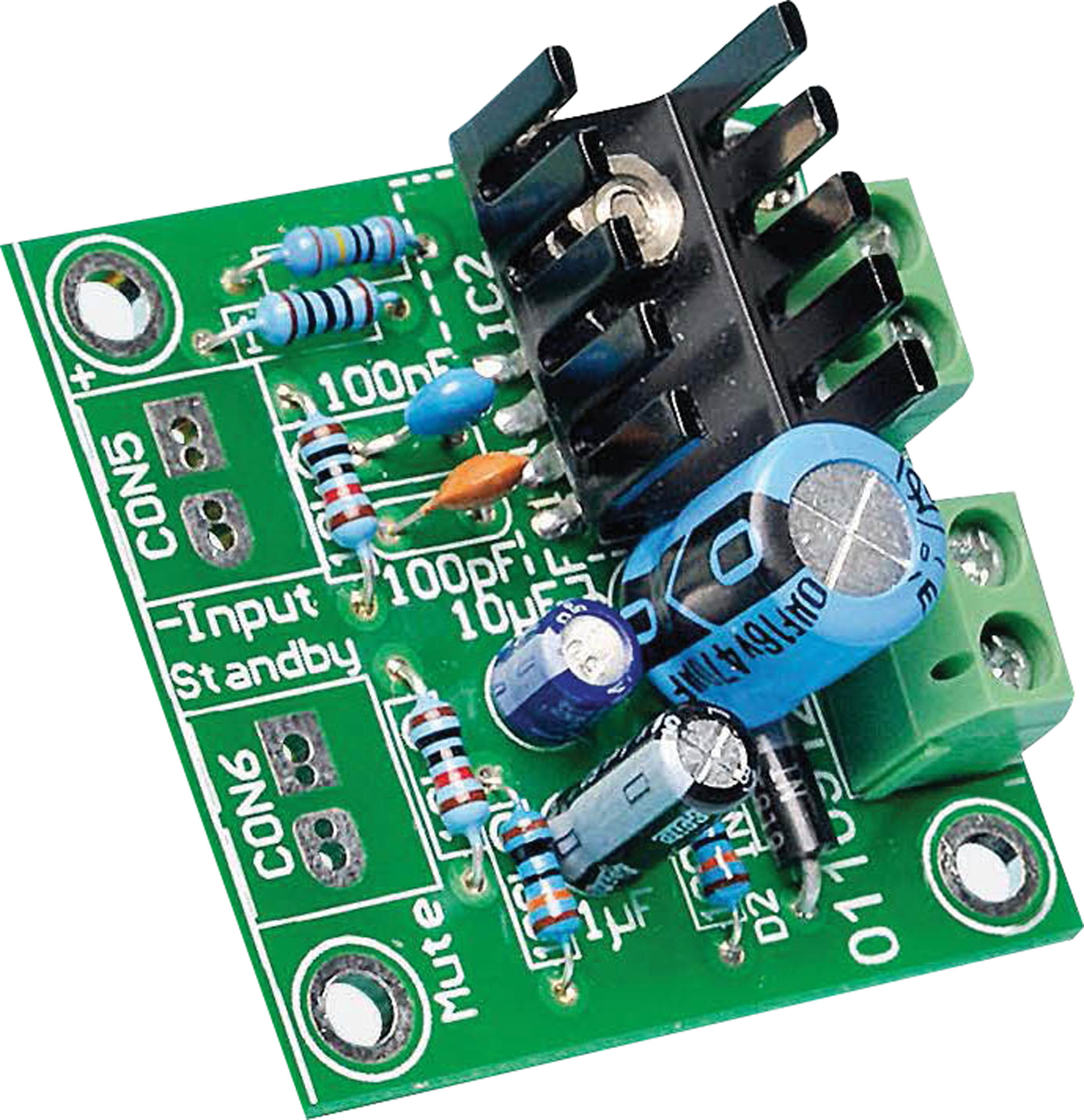

7 Watt Champion Amplifier Kit

(Silicon Chip Magazine January 2013) A fully upgraded and redesigned version of the ‘Champ Amp’. Delivers up to 7 watts of peak power with lower noise and distortion levels. It also offers muting and standby control, plus two mixed inputs. All on one tiny board! Based on the AN7511 amplifier IC. Operates from 4 to 13.5V dc.



Important Note For Kit Buyers:
This product is supplied in component form and requires soldering, drilling, and assembly. We recommend users are familiar with at least basic electronic principles and have the ability to solder.
