Photoflash Camera Trigger Kit

Manufacturer: Silicon Chip Magazine
Be the first to review this product

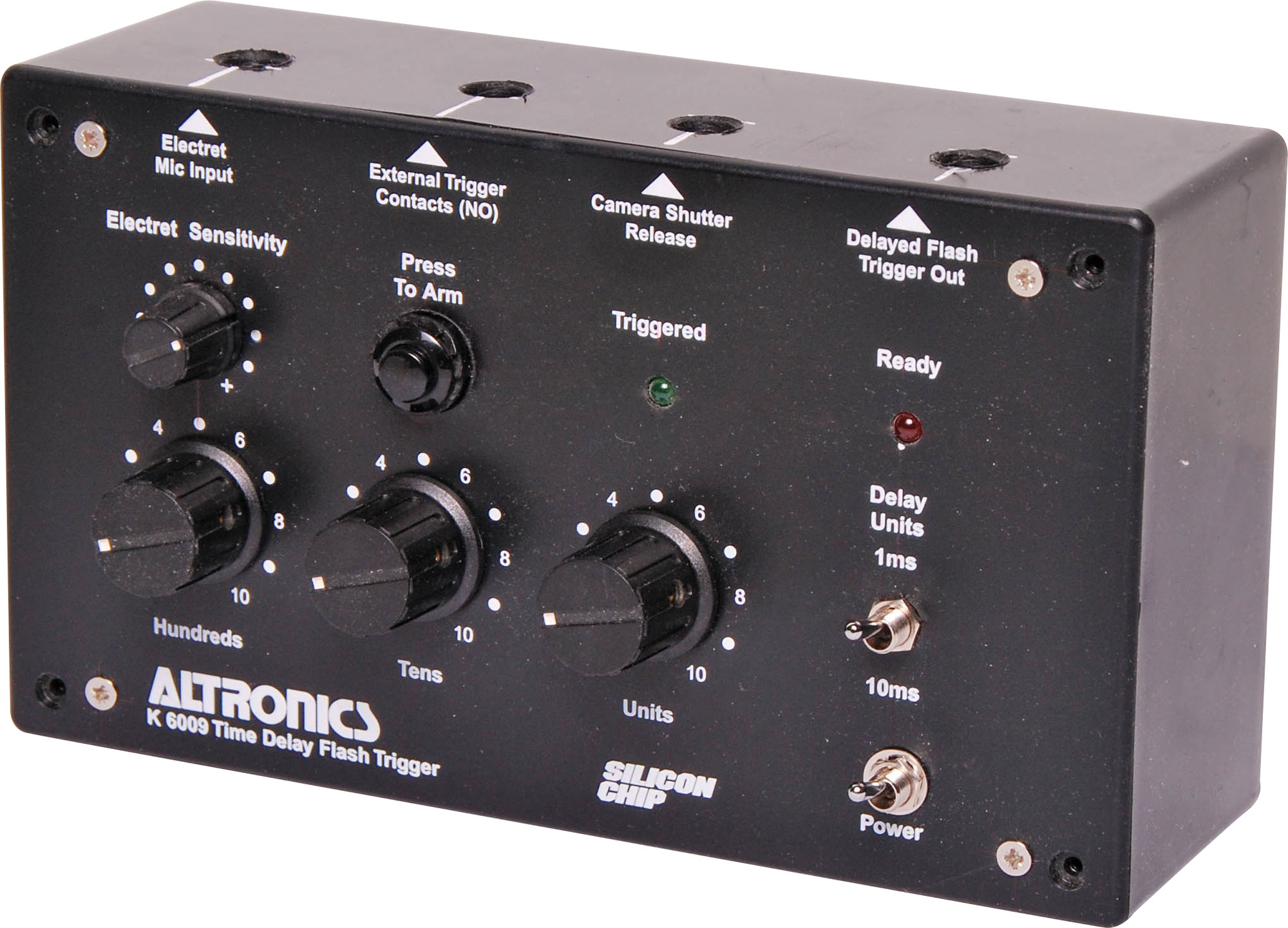

(SC January '09) Want to try your hand at 'stop motion' photography? This camera shutter/flash controller allows you to take a picture at a precise moment between 1ms and 9.99s after a trigger. Triggering can be from the included electret mic
SKU: K6009
$62.27
Per ea
QuantityPrice
ea$62.27
4+$58.18

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

(Silicon Chip Magazine January ‘09) Want to try your hand at ‘stop motion’ photography? This camera shutter/flash controller allows you to take a picture at a precise moment between 1ms and 9.99s after a trigger. Triggering can be from the included electret mic (to pick up sound ‘events’) or other sensors like a PIR detector, light-beam interrupter, or custom sensor switches (not included).



Important Note For Kit Buyers:
This product is supplied in component form and requires soldering, drilling, and assembly. We recommend users are familiar with at least basic electronic principles and have the ability to solder.

Specifications:

Trigger inputs: electret microphone or external trigger (via PIR sensor etc)

  • Delay time: 0 to 999ms in 1ms increments or 0 to 9.99 seconds in 10ms increments
  • Timing Accuracy: 1ms or 10ms
  • Outputs: (1) Non-delayed triggering for external shutter release (2) Delayed triggering for electronic flash
  • Power: 9V alkaline battery
  • Consumption: 16mA (standby); 30mA when triggered

12 Months

We Offer 12 Months for this product
