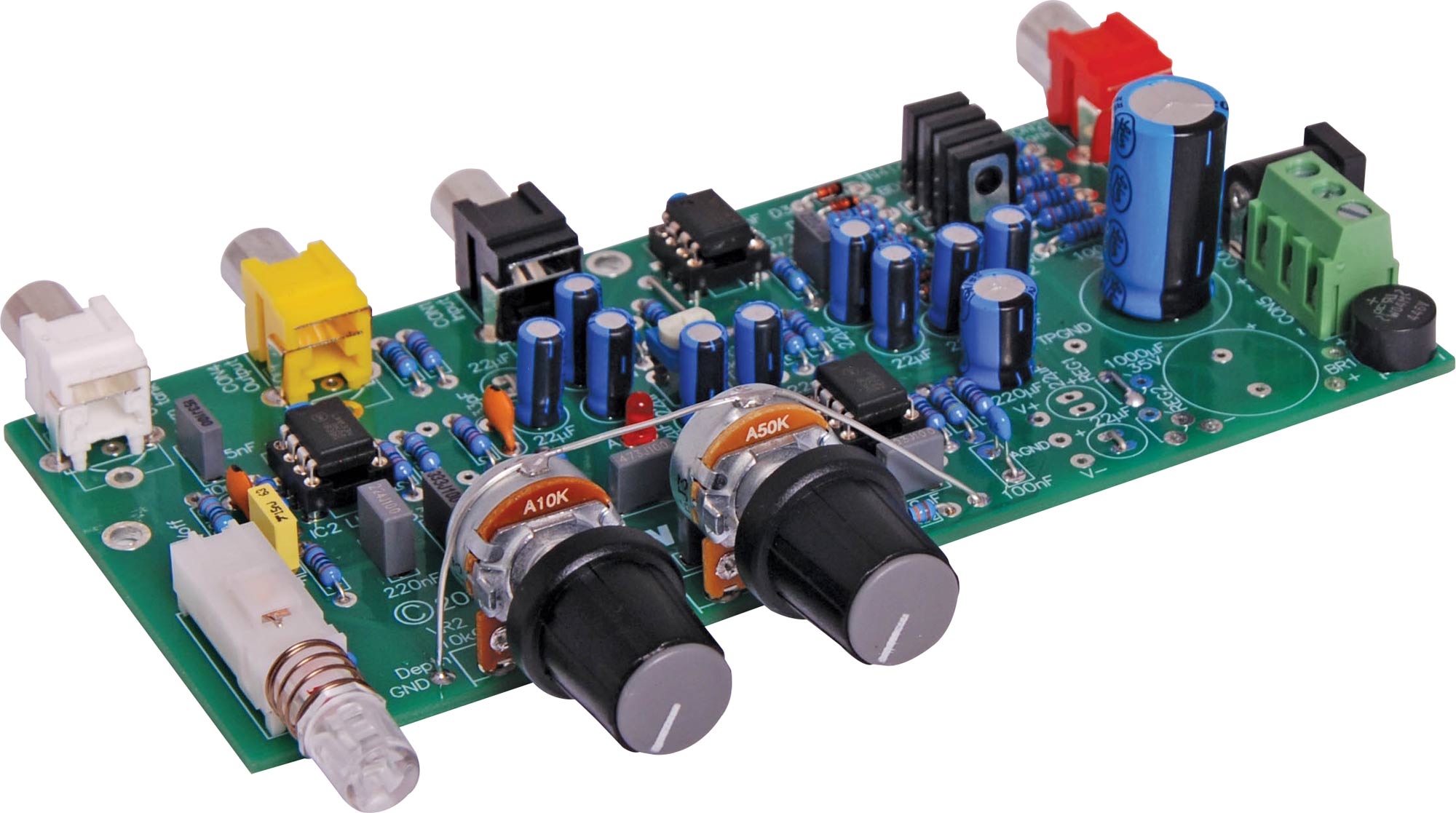

Spring Reverb Guitar Effects Kit

Manufacturer: Silicon Chip Magazine
SKU: K5350
(SC April '17) This two spring tank type reverb unit provides reverberation effects for your guitar or other instrument. Adds complexity and depth to your sound to impress the punters. Easy to build and integrate into other projects thanks to its 9-15VAC or 12-15VDC power requirement.
Save $28.87 $18.18 $47.05

All Prices Shown are (ex GST)
Bulk Pricing
ea
$18.18 $47.05
4+
$18.18 $42.95
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

(SC April ‘17) This two spring tank type reverb unit provides reverberation effects for your guitar or other instrument. Adds complexity and depth to your sound to impress the punters. Easy to build and integrate into other projects thanks to its 9-15VAC or 12-15VDC power requirement. Note: spring tank not included.


Important Note For Kit Buyers:
This product is supplied in component form and requires soldering, drilling, and assembly. We recommend users are familiar with at least basic electronic principles and have the ability to solder.

Specifications:

Reverb tank type: two spring

  • Anti-microphonic features: spring suspension, plastic mounting bushings
  • Spring tank dimensions: 235 x 87 x 34mm (spring tank not included)
  • Reverb delay times: 23ms, 29ms
  • Reverb decay time: around two seconds
  • Input sensitivity: ~25mV RMS
  • Frequency response (undelayed signal): 20Hz-19kHz (-3dB)
  • Frequency response (reverb signal): 200Hz-3.4kHz (-3dB)
  • Signal-to-noise ratio (undelayed signal): 62dB
  • Signal-to-noise ratio (typical reverb setting): 52dB
  • THD+N (undelayed signal): typically around 0.05% (100mV signal)
  • Controls: level, reverb depth, reverb on/off
  • Power supply: 9-15VAC, 18-30VAC centre tapped or 12-15V DC
  • Quiescent current: typically 30-40mA

Warranty & Returns

12 Months

We Offer 12 Months for this product
