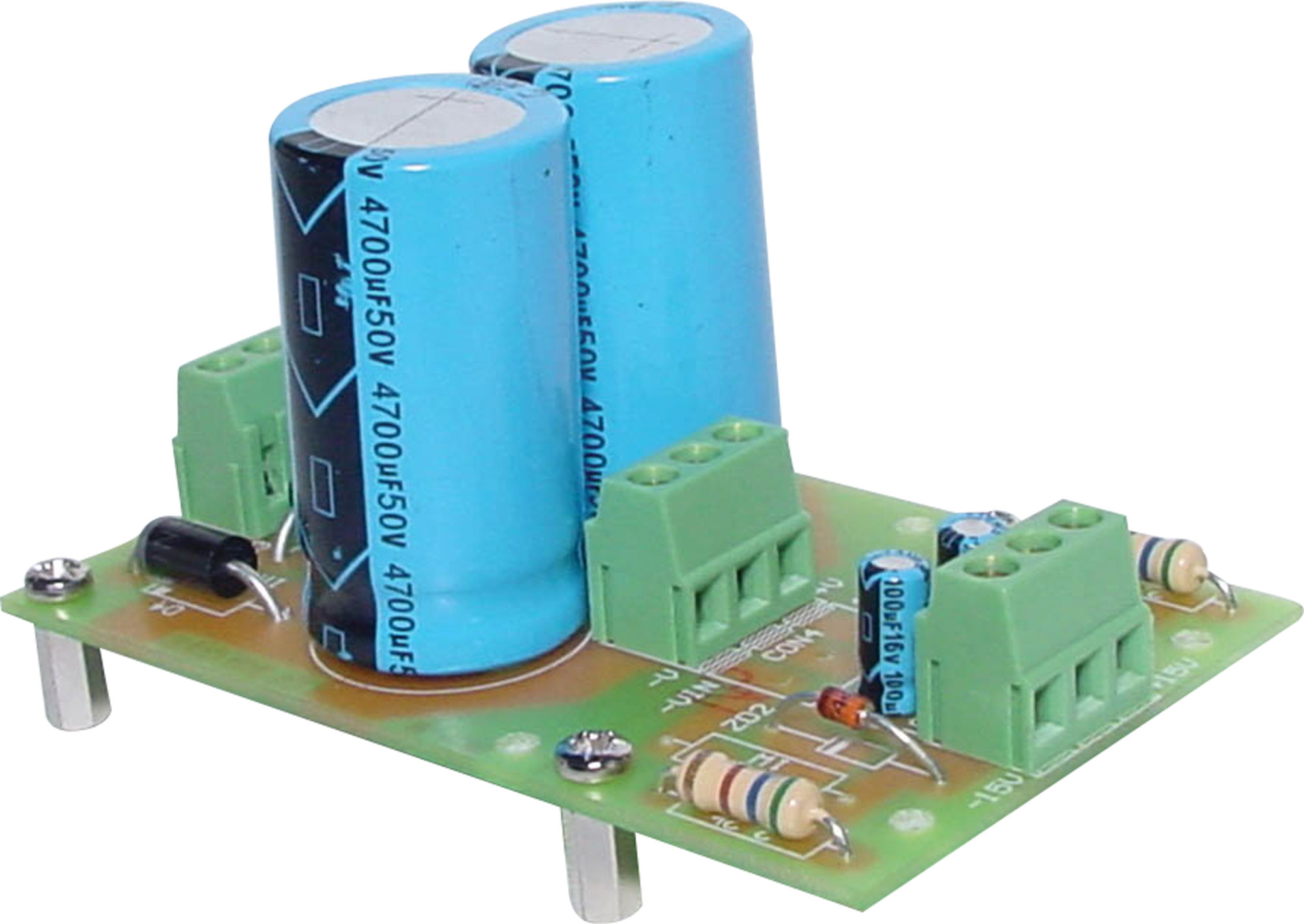

Power Supply Kit To Suit K5116 Amplifier

This is the recommended power supply for the K 5116 Amplifier Module Kit. The supply has been designed to use the M 5118 toroidal transformer. The secondary feeds a full-wave bridge rectifier and filter, formed by four 1N5404 diodes and two 4700µF 35V capacitors. The output is about ±25V unloaded and is suitable for powering one or two amplifier modules.



Important Note For Kit Buyers:
This product is supplied in component form and requires soldering, drilling, and assembly. We recommend users are familiar with at least basic electronic principles and have the ability to solder.
