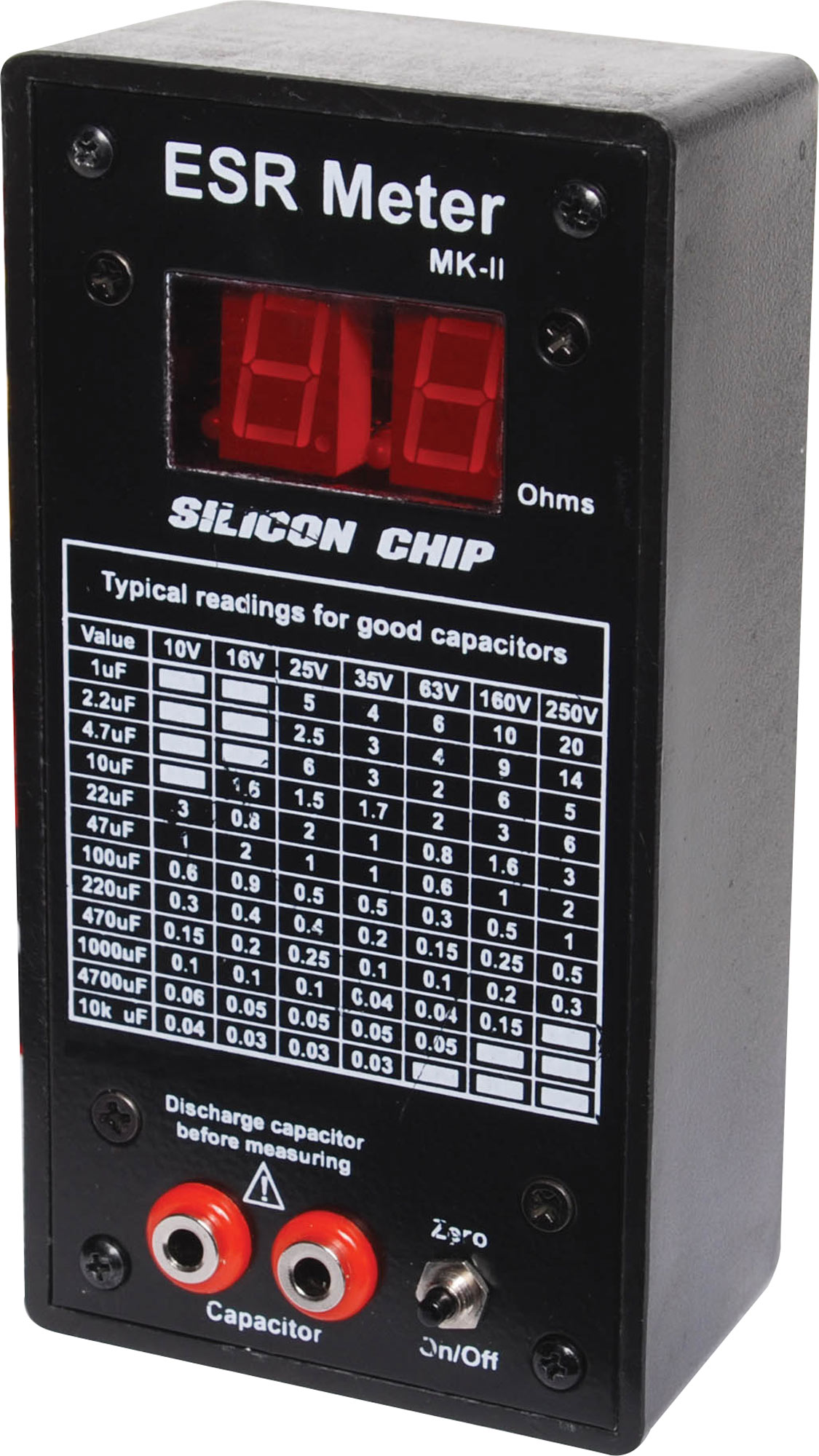

ESR Meter Kit

(Silicon Chip Magazine April ‘04) Identifies defective electrolytic capacitors instantly, without the need to remove it from the PC board. Capacitors can often show very high ESR levels whilst displaying the correct capacitance on a multimeter. In devices such as switch mode power supplies, high ESR in capacitors can cause such issues as loss of regulation, excessive high frequency noise etc. This compact ESR meter is an invaluable tool for the service technician. Supplied with punched and screened case.

Requires 6 x AAA batteries (sold separately)

Important Note For Kit Buyers:
This product is supplied in component form and requires soldering, drilling, and assembly. We recommend users are familiar with at least basic electronic principles and have the ability to solder.
