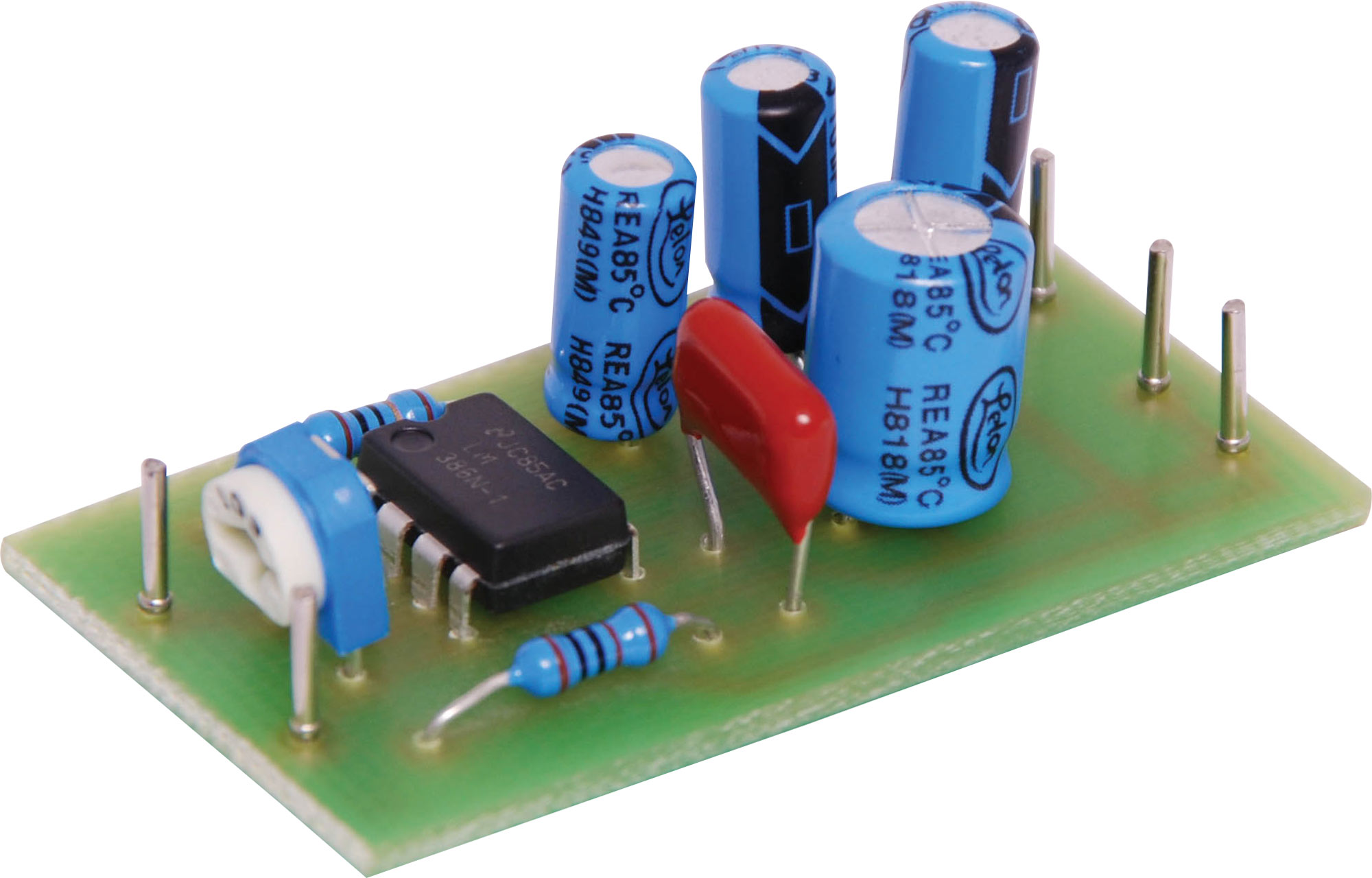

8 Ohm 0.5W Champ Power Amplifier Kit

Manufacturer: Silicon Chip Magazine
Be the first to review this product
(SC Feb '94) Physically about the same size as a standard 9V battery, this compact little amplifier delivers 0.5W of power into 8 ohms from a 9V battery. Ideal for beginners, experimenting and small audio projects.
SKU: K2115
$10.45
Per ea
QuantityPrice
ea$10.45
5+$9.32

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

(Silicon Chip Magazine Feb ’94) Physically about the same size as a standard 9V battery, this compact little amplifier delivers 0.5W of power into 8 ohms from a 9V battery. Ideal for beginners, experimenting and small audio projects. Designed around the LM 386 audio amplifier IC, the circuit uses only a handful of components and works from 4 to 12V DC.

Requires 1 x 9V battery (sold separately).

Important Note For Kit Buyers:
This product is supplied in component form and requires soldering, drilling, and assembly. We recommend users are familiar with at least basic electronic principles and have the ability to solder.

12 Months

We Offer 12 Months for this product
