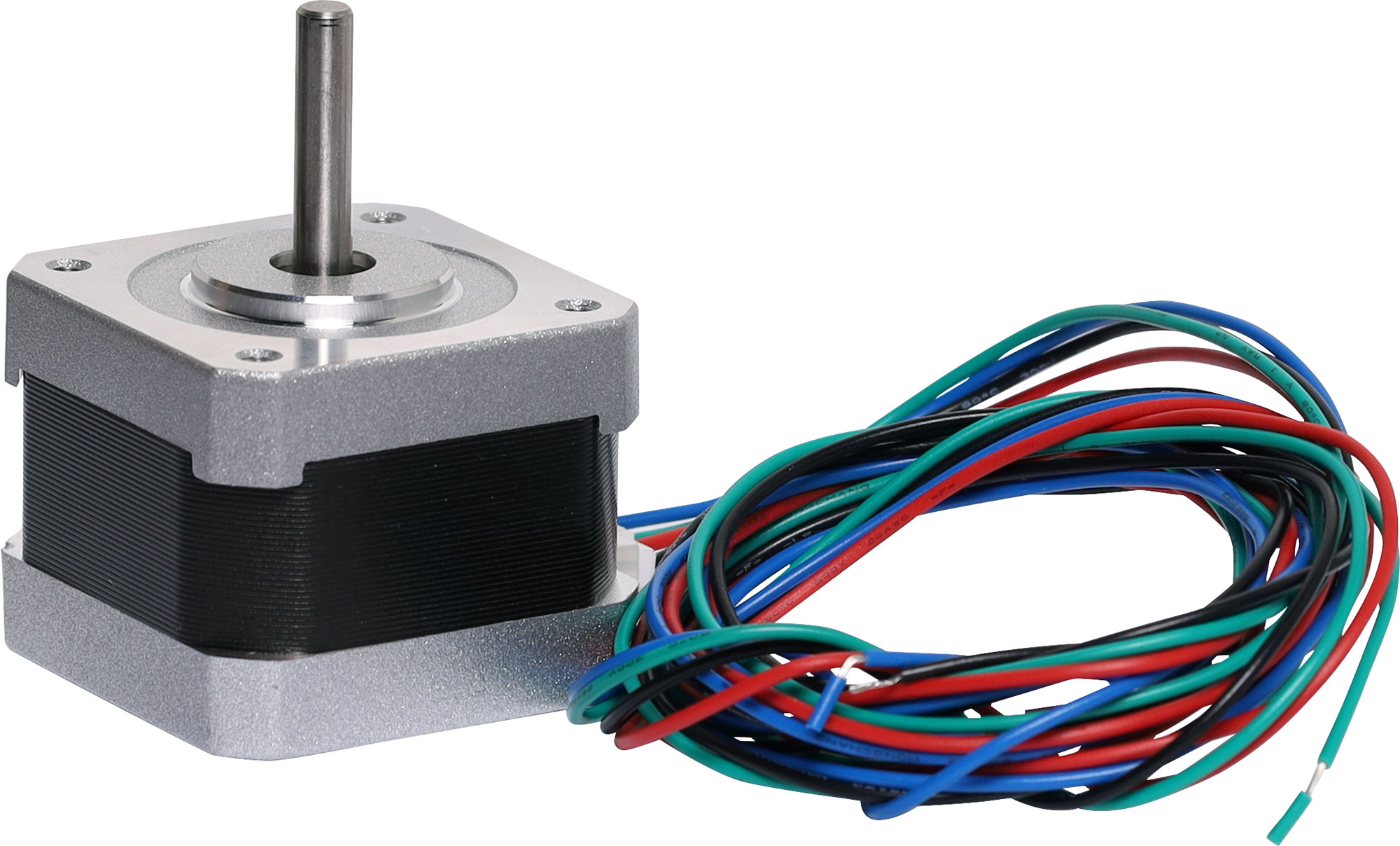

NEMA17 200 Step Stepper Motor & Lead

SKU: J0070A
12V 200-step 1.8&deg 48BYG stepper motor with interface lead. 2 phase type. 0.23Nm holding torque. 5mm&Oslash shaft. NEMA17 M3 mounting hole pattern (31mm). Size: 42x42x34 (25mm shaft). 1m lead.
$34.09

All Prices Shown are (ex GST)
Bulk Pricing
ea $34.09
5+ $31.36
10+ $28.86
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

12V 200-step 1.8° 42BYG stepper motor with interface lead. 2 phase type. 0.23Nm holding torque. 5mmØ shaft. NEMA17 M3 mounting hole pattern (31mm). Size: 42x42x34 (25mm shaft). 1m lead.

Specifications

Step Angle: 1.8Deg

  • Temperature Rise: 80DegC max
  • Ambient Temperature: -20DegC~+50DegC
  • Insulation Resistance: 100 MOhm Min. ,500VDC
  • Dielectric Strength: 500VAC for 1minute
  • Shaft Radial Play: 0.02Max. (450g-load)
  • Shaft Axial Play: 0.08Max. (450g-load)
  • Max. radial force: 28N (20mm from the flange)
  • Max. axial force: 10N
  • Product description: 42 two-phase stepping motor Body length 34mm Static torque 2.2kg.cm
  • 5mm shaft diameter with flat wire, length 24mm,
  • Wiring method: black green A +, A-. Red blue B +, B-,
  • Adapter driver JK0220 (driving voltage DC12V ~ 36V, AC12V ~ 24V, current range 0.3A ~ 2.0A)

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
