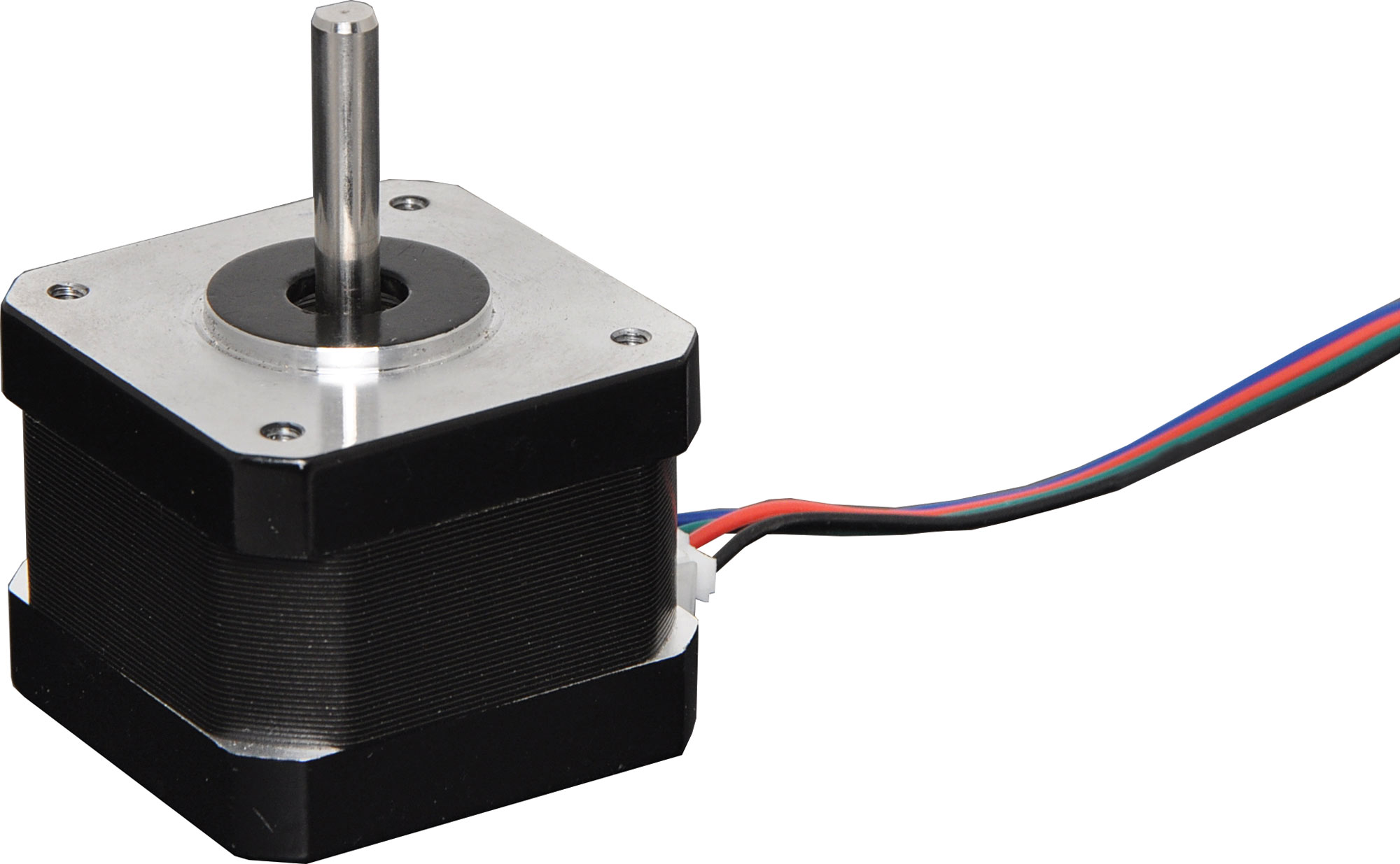

NEMA17 200 Step Stepper Motor & Lead

SKU: J0070
12V 200-step 1.8&deg 48BYG stepper motor with interface lead. 2 phase type. 0.23Nm holding torque. 5mm&Oslash shaft. NEMA17 M3 mounting hole pattern (31mm). Size: 42x42x34 (25mm shaft). 1m lead.
$34.09

All Prices Shown are (ex GST)
Bulk Pricing
ea $34.09
5+ $31.36
10+ $28.86
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

12V 200-step 1.8° 42BYG stepper motor with interface lead. 2 phase type. 0.23Nm holding torque. 5mmØ shaft. NEMA17 M3 mounting hole pattern (31mm). Size: 42x42x34 (25mm shaft). 1m lead.

Specifications

Step angle: 1.8° 5%

  • Voltage: 12V
  • Phases: 2
  • Current: 0.33A
  • Insulation resistance: 100Mohm(500V DC)
  • Inductance: 46 20± Mh
  • Insulation class: B
  • Resistance
  • 34Ω± 10%
  • Weight: 0.20Kg
  • Holding torque: 0.23N/M

Warranty & Returns

12 Months

We Offer 12 Months for this product
