IDC Headers

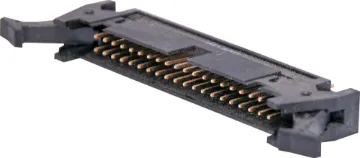

40 Pin Vertical PCB Mount Locking Header
P5140
Contact Resistance: 30M Ohm max @ 100mA DC
Insulator Resistance: 1000M Ohm @ 500V DC
Current Rating: 1 A
Contact Material: Gold plated brass
Housing: PBT & 30% Glass Fibre

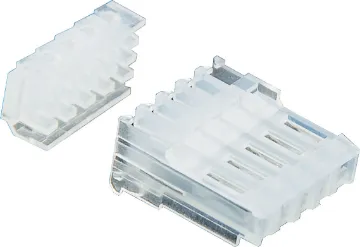

5 Pin IDC Header Plug 2.54mm
P5705
Commonly used to connect fans etc. to headers on PCB's. IDC type makes wire connection easy.
5 Pin IDC Header Plug 2.54MM

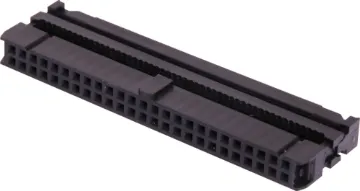

50 Pin IDC Cable Mounting Socket
P5350
Contact Resistance: 30M Ohm max @ 100mA DC
Insulator Resistance: 1000M Ohm @ 500V DC
Current Rating: 1 A
Contact Material: Gold plated brass
Housing: PBT & 30% Glass Fibre

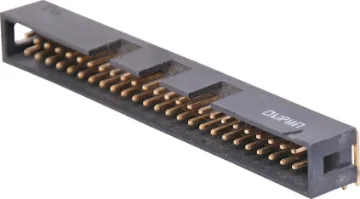

50 Pin Right Angle PCB Mount Boxed Header
P5100
Contact Resistance: 30M Ohm max @ 100mA DC
Insulator Resistance: 1000M Ohm @ 500V DC
Current Rating: 1 A
Contact Material: Gold plated brass
Housing: PBT & 30% Glass Fibre
50 Pin Right Angle PCB Mount Locking Header
P5250
Contact Resistance: 30M Ohm max @ 100mA DC
Insulator Resistance: 1000M Ohm @ 500V DC
Current Rating: 1 A
Contact Material: Gold plated brass
Housing: PBT & 30% Glass Fibre

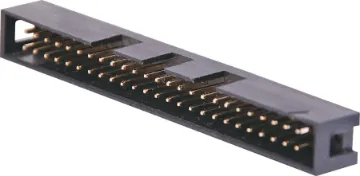

50 Pin Vertical PCB Mount Boxed Header
P5050
Contact Resistance: 30M Ohm max @ 100mA DC
Insulator Resistance: 1000M Ohm @ 500V DC
Current Rating: 1 A
Contact Material: Gold plated brass
Housing: PBT & 30% Glass Fibre

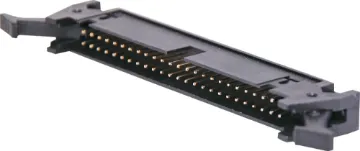

50 Pin Vertical PCB Mount Locking Header
P5150
Contact Resistance: 30M Ohm max @ 100mA DC
Insulator Resistance: 1000M Ohm @ 500V DC
Current Rating: 1 A
Contact Material: Gold plated brass
Housing: PBT & 30% Glass Fibre

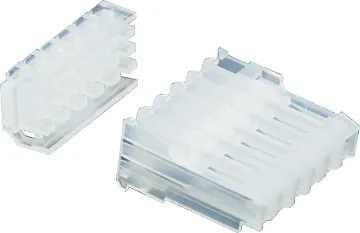

6 Pin IDC Header Plug 2.54mm
P5706
Commonly used to connect fans etc. to headers on PCB's. IDC type makes wire connection easy.
6 Pin IDC Header Plug 2.54MM

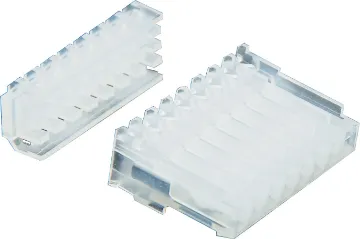

8 Pin IDC Header Plug 2.54mm
P5708
Commonly used to connect fans etc. to headers on PCB's. IDC type makes wire connection easy.
8 Pin IDC Header Plug 2.54MM
